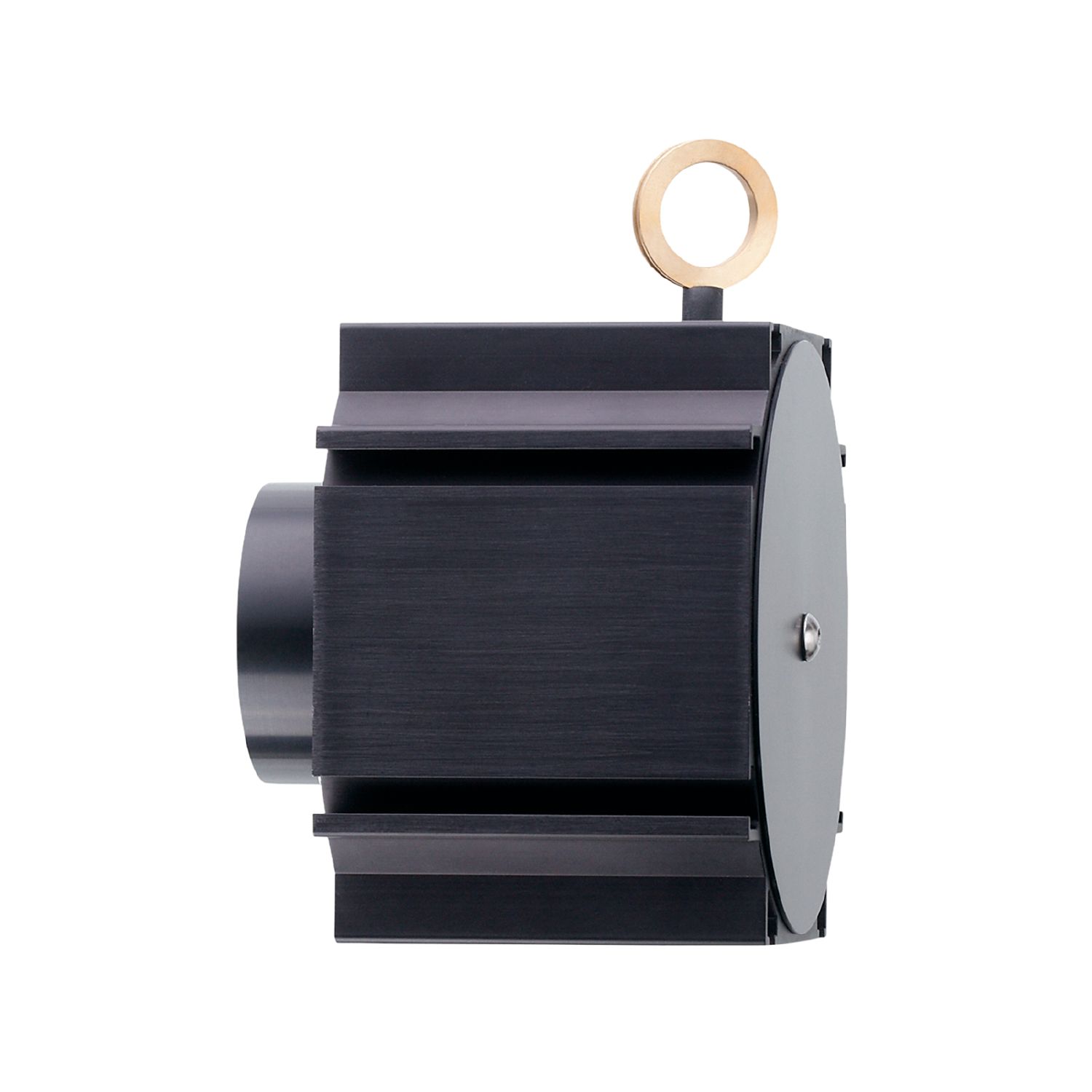

draw-wire mechanism for encoders

E61442

DRAW WIRE 5000

draw-wire mechanism for encoders E61442
draw-wire mechanism for encoders E61442
draw-wire mechanism for encoders E61442
draw-wire mechanism for encoders E61442
draw-wire mechanism for encoders E61442
draw-wire mechanism for encoders E61442

draw-wire mechanism for encoders

E61442

DRAW WIRE 5000

Product characteristics
Shaft design solid shaft
Shaft diameter [mm] 6
Application
Design for encoders with 58 mm synchro flange and 6 mm solid shaft
Accuracy / deviations
Accuracy ± 0.02 % FSO
Repeatability ± 0,002 % FSO
Operating conditions
Ambient temperature [°C] -20...80
Storage temperature [°C] -40...80
Storage humidity [%] 5...95; (non condensing)
Tests / approvals
Shock resistance
IEC628-2-27 50 g / 10 ms
Vibration resistance
IEC68-2-6 20 g / 20..200 Hz
Mechanical data
Weight [g] 1842.9
Top flange diameter [mm] 58
Materials housing: aluminium anodised; wire: stainless steel polyamide coated
Shaft design solid shaft
Shaft diameter [mm] 6
Max. measuring length [mm] 5000
Wire drum circumference [mm] 315
Wire diameter [mm] 1
Wire connection 20,2; (eyelet)
Wire properties
max. speed of wire displacement [m /s] 2
max. wire acceleration [g] 5
max. extension force [N] 16
min. retraction force [N] 4
Fixing flange synchro-flange
Remarks
Pack quantity 1 pcs.
Diagrams and graphs
Installation instruction
