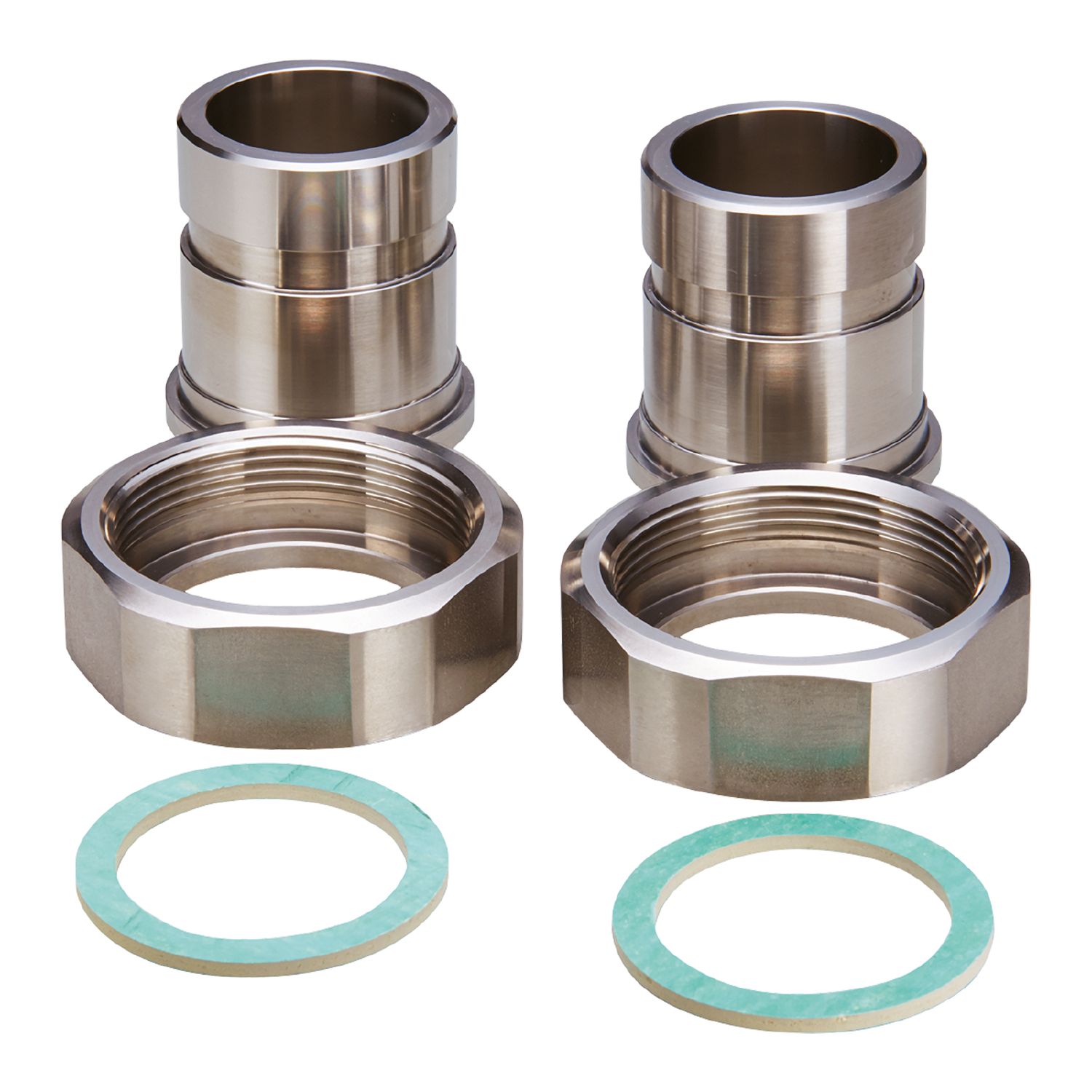

Mounting adapter for flow sensors

E40227

ADAPT /SM/1/VICTAULIC

Mounting adapter for flow sensors

E40227

ADAPT /SM/1/VICTAULIC

  • For the installation of flow sensors in pipes
  • Easy, quick and secure mounting
  • High permissible overload pressure rating
  • Requested sealings supplied with the unit
  • Robust stainless steel design for use in harsh industrial environments
Application
Design for flow sensors Typ SM2, SM9
Pressure rating [bar] 16
Tests / approvals
Pressure Equipment Directive A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions The compatibility between medium and product material has to be checked in all applications.
Mechanical data
Weight [g] 1439.5
Materials Adapter: stainless steel (1.4571/316Ti ); Gasket: Centellen 55 x 43 x 3 mm
Sensor connection G 2
Process connection Victaulic 1,5"
Accessories
Items supplied
O-rings: 2
Remarks
Pack quantity 2 pcs.
