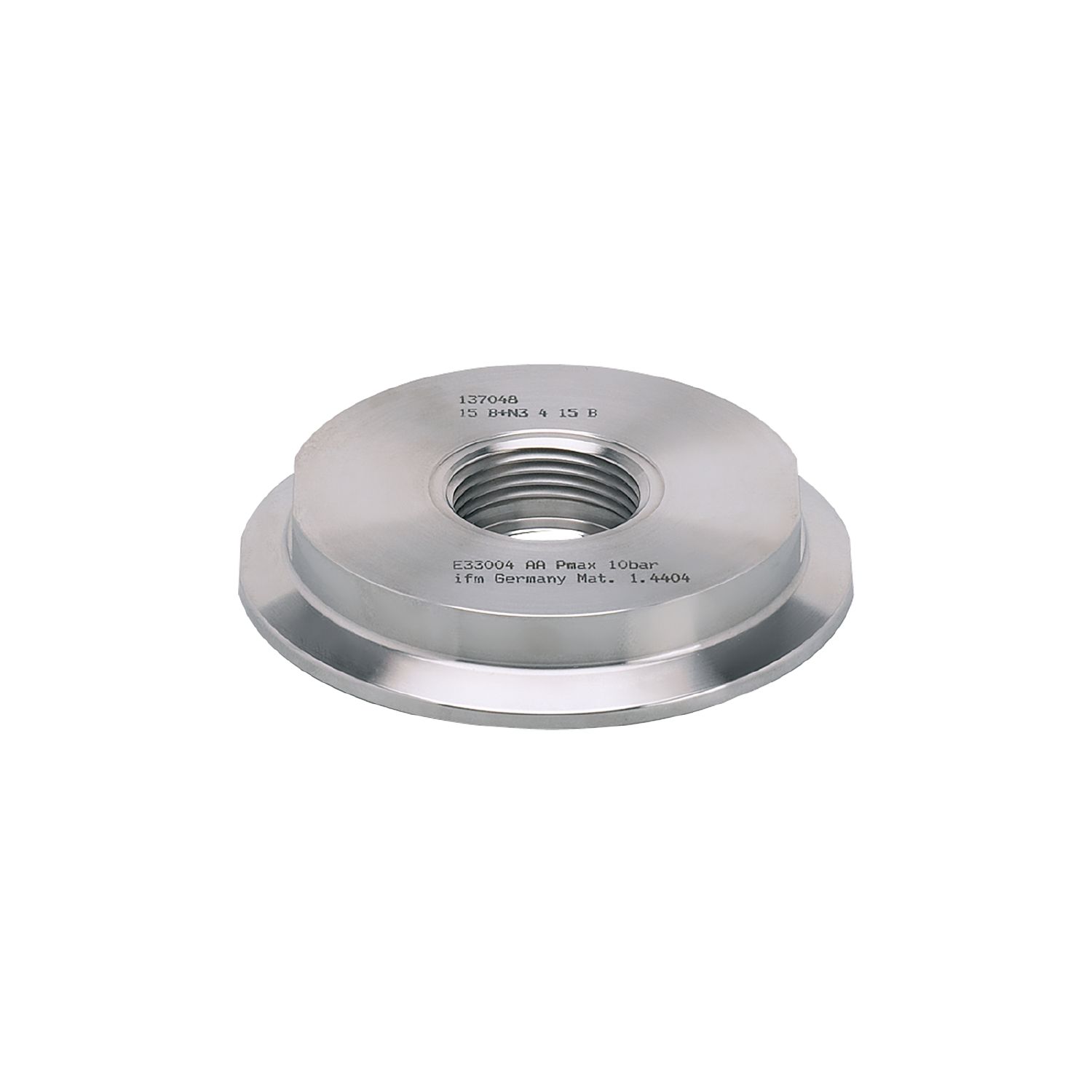

Process adapter Tri-Clamp

E33004

ADAPT IFM-CLAMP ISO2852/3

Process adapter Tri-Clamp

E33004

ADAPT IFM-CLAMP ISO2852/3

  • For the installation of process sensors in containers and pipes
  • Easy, quick and secure mounting
  • Particularly suited for use in hygienic applications
  • Stainless steel adapter for the requirements of the food and beverage industry
  • High pressure rating
phase-out article
  • fda
  • ec19352004
Application
Pressure rating [bar] 10
Tests / approvals
Pressure Equipment Directive A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions The compatibility between medium and product material has to be checked in all applications.
Mechanical data
Weight [g] 554.4
Materials stainless steel (1.4404 / 316L)
Sensor connection Aseptoflex
Process connection Clamp DN65 (3") DIN 32676 (ISO 2852)
Surface characteristics Ra/Rz of the wetted parts 0.4 / 4
Hygienic equipment class to DIN 11866 H4
Remarks
Pack quantity 1 pcs.
