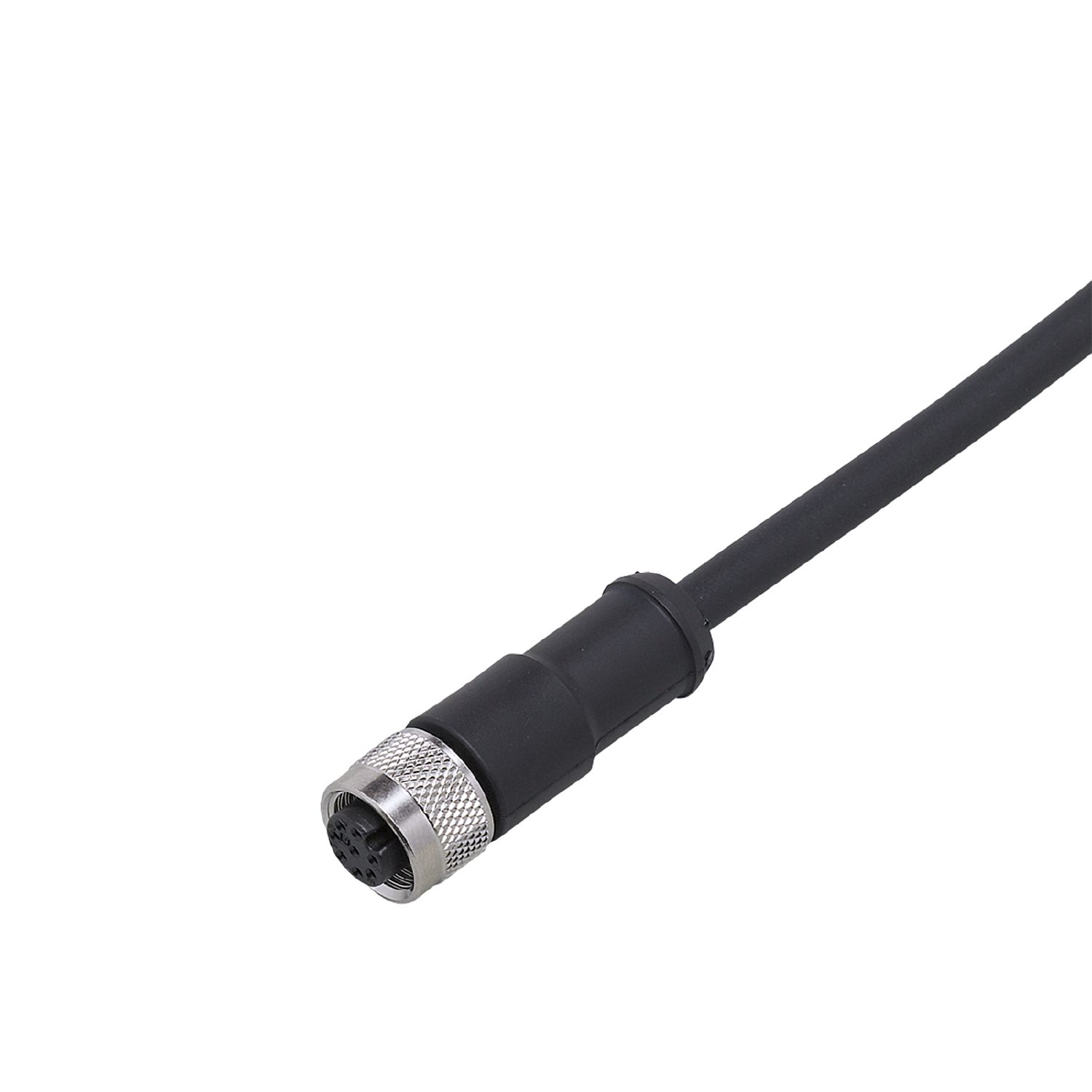

Connecting cable with socket

E20838

ADOGH080MSS0005B08

Connecting cable with socket

E20838

ADOGH080MSS0005B08

  • 8-pole connection
  • High protection rating for the requirements of harsh industrial environments
  • Reliable transmission of the sensor signals
  • Wide operating temperature range
  • ce
  • ukca
Application
Special feature Screened cable
Electrical data
Operating voltage [V] < 60 AC/DC
Operating conditions
Ambient temperature [°C] -25...85
Protection IP 67
Mechanical data
Weight [g] 290.7
Dimensions [mm] 14.5 x 14.5 x 43.9
Materials TPU
Moulded-body material TPU
Material nut diecast zinc, nickel-plated
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 5 m, PUR, black, shielded; 7 x 0.25 mm² (14 x Ø 0.15 mm )
Electrical connection - socket
Connection Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated
