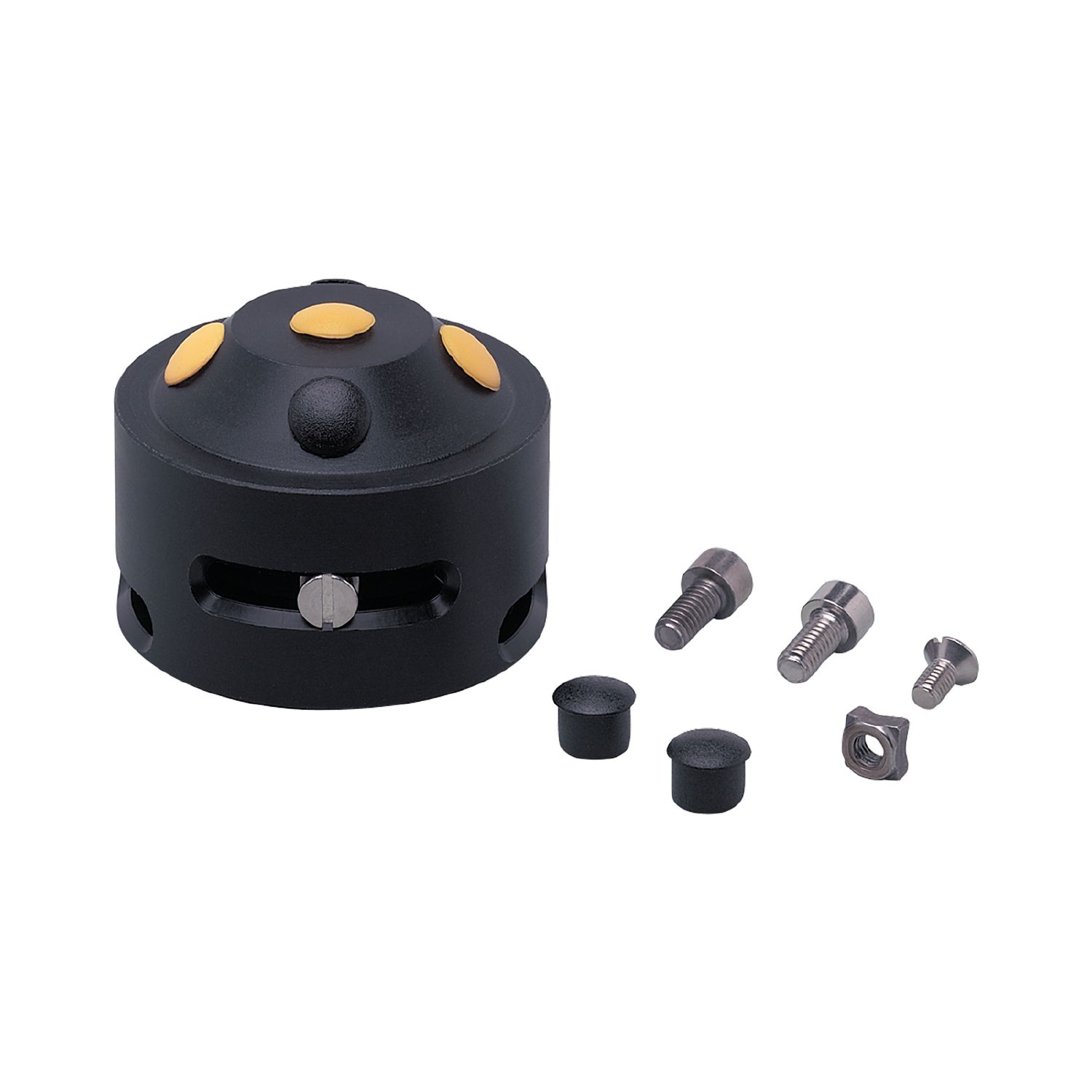

Target puck for valve actuators

E17148

PUCK/D65/ADJUSTABLESCREWS

Target puck for valve actuators

E17148

PUCK/D65/ADJUSTABLESCREWS

  • For monitoring valve positions
  • For reliable position feedback on valve actuators
  • Easy mounting directly on the shaft of the drive
  • Non-contact and self-cleaning system
  • Selectable position of the damping screws
phase-out article
Alternative articles: E12516 Product comparison: E17148 / E12516 When selecting an alternative article and accessories please note that technical data may differ!
Application
Design for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337
Mechanical data
Weight [g] 125.5
Target puck diameter [mm] 65
Hole spacing [mm] 80
Shaft height of valve drive [mm] 30
Materials target puck: PVC black; screws: stainless steel
Remarks
Pack quantity 1 pcs.
