Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 48 AC / < 60 DC |
|---|---|
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Ambient temperature (moving) [°C] | -25...80 |
| Protection | IP 65; IP 67 |
Mechanical data
| Weight [g] | 221.85 | ||||||
|---|---|---|---|---|---|---|---|
| Moulded-body material | TPU | ||||||
| Material nut | diecast zinc, nickel-plated | ||||||
| Sealing material | NBR | ||||||
| Drag chain suitability | yes | ||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug

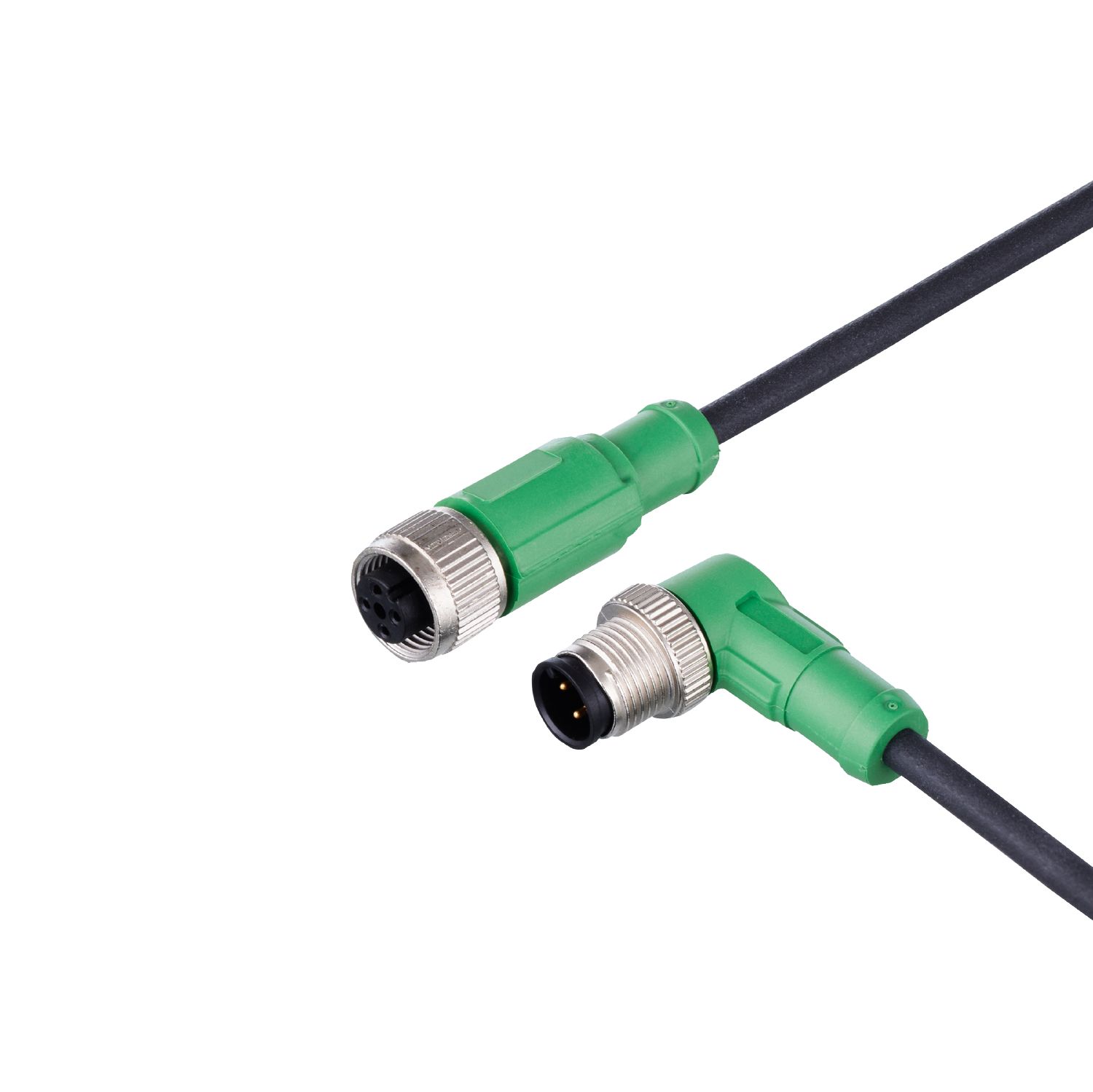

| Connector: 1 x M12, angled; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.4 Nm |
Electrical connection
| Connection | Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Sealing: NBR; Contacts: gold-plated; Tightening torque: 0.4 Nm; Shielded connection cable: screen connected |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12783-00 — 07.02.2024 —
