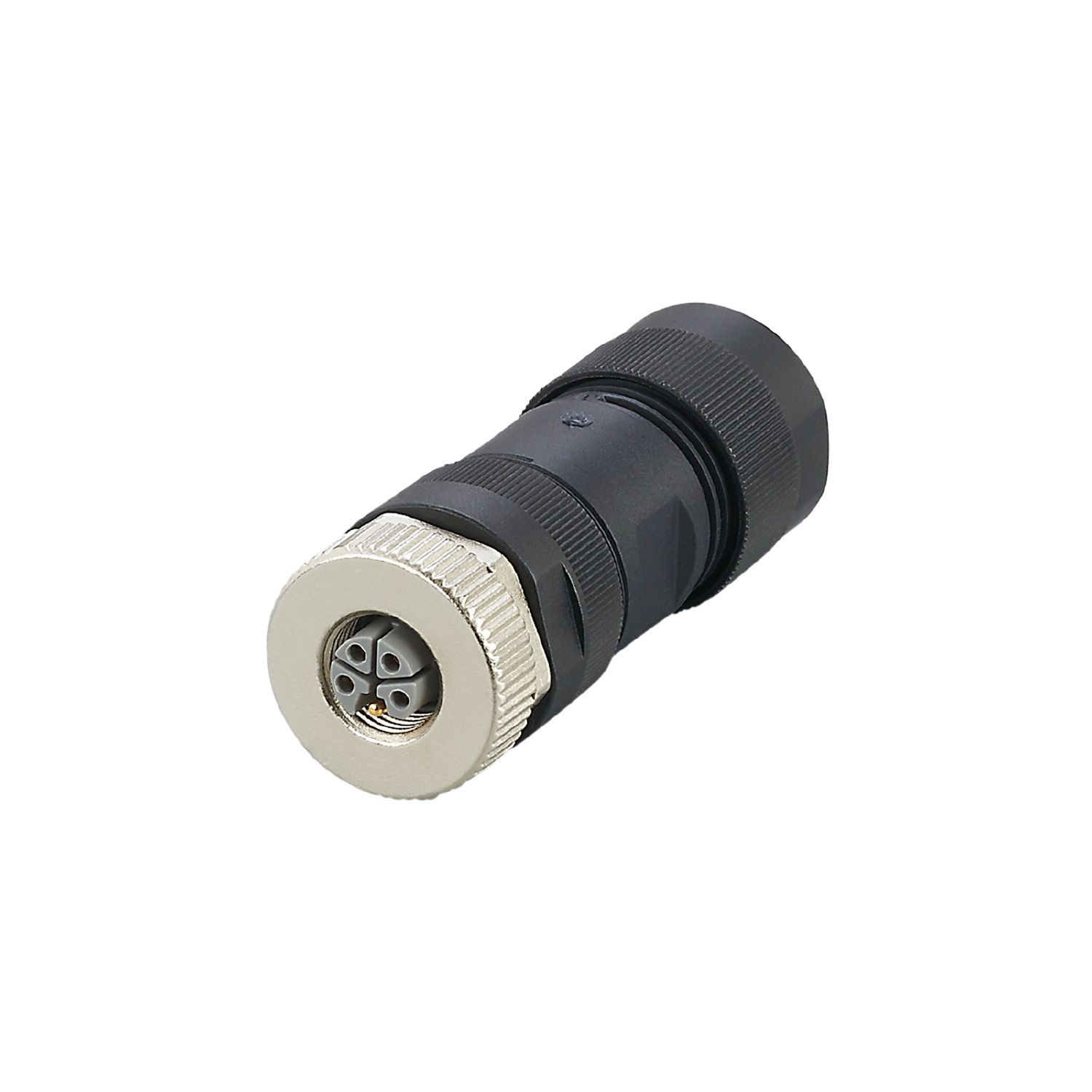

E12672

Wirable socket

SDOGX050MSSFKPG

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

Download
Technische Details
Application
Special feature Gold-plated contacts
Electrical data
Operating voltage [V] < 63 DC
Max. current load total [A] 16
Operating conditions
Ambient temperature [°C] -40...85
Protection IP 67
Mechanical data
Weight [g] 53.2
Dimensions [mm] Ø 25 / L = 70
Materials PA
Material nut brass, nickel-plated
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection screw terminals: 1.5...2.5 mm²; Cable sheath: Ø 8...13 mm
Electrical connection - socket
Connector: 1 x M12, straight; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated
