Application
| Special feature | Screened cable |
|---|---|
| Design | Ethernet cable, D-coded |
| Application | cross-over patch cable; patch cable |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67; IP 20; (M12 plug / RJ45 plug) |
Mechanical data
| Weight [g] | 1364.5 |
|---|---|
| Materials | TPU / PA |
| Moulded-body material | PA / TPU |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug M12

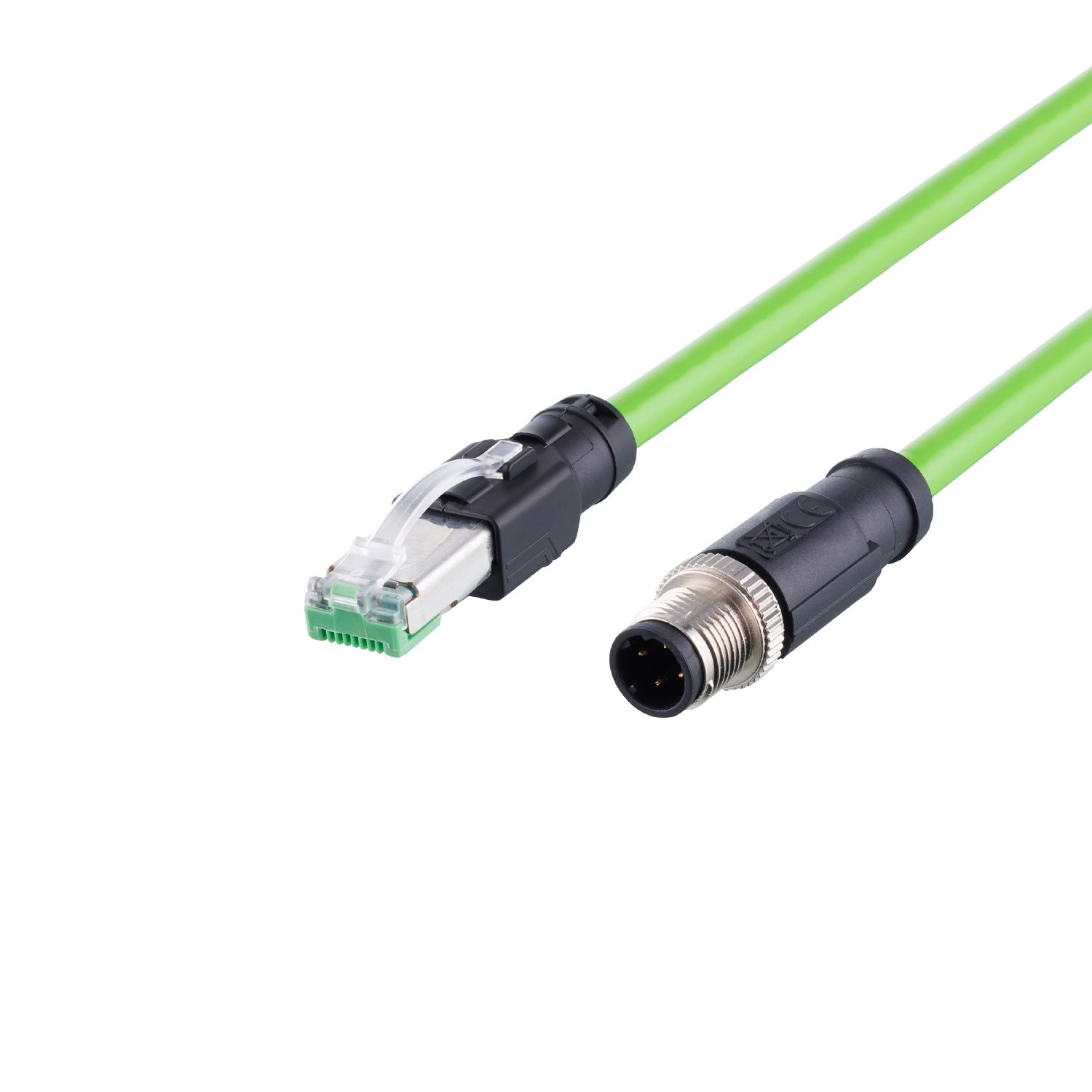

| Connector: 1 x M12, straight; coding: D; Moulded body: PA; Locking: diecast zinc, nickel-plated; Tightening torque: 0.7...0.9 Nm |
Electrical connection
| Connection | Cable: 20 m, PVC, green, Ø 6.5 mm, shielded; 2 x 2 x 0.38 mm² |
|---|
Electrical connection - plug RJ45
| Connector: 1 x RJ45, straight; Moulded body: TPU |
