feeding module for ground potential

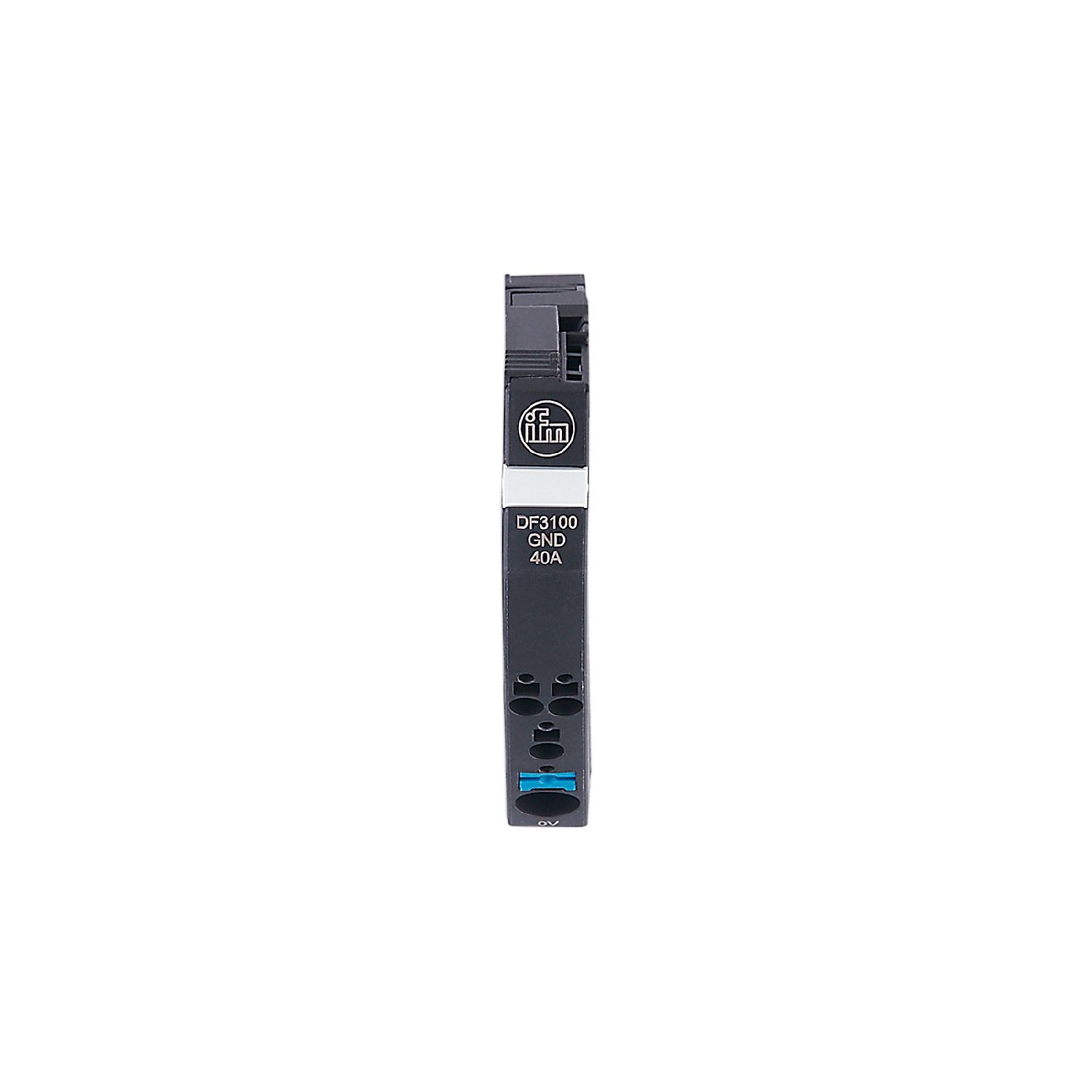

DF3100

Supply Module GND/1x 10mm2

feeding module for ground potential

DF3100

Supply Module GND/1x 10mm2

{{ifmVariantName}}



  • ce
  • cruus
Technical details
Application
Design feeding module GND (1 x 10 mm²)
Electrical data
Operating voltage [V] 18...30 DC
Nominal voltage DC [V] 24
Protection class III
Max. load current [A] 40
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -40...70
Protection IP 20; (on the front)
Tests / approvals
EMC
EN 61000-6-3 radiation of interference
EN 61000-6-2 immunity
Mechanical data
Weight [g] 48.6
Type of mounting mounting on DIN rail
Installation instruction string mounting possible
Dimensions [mm] 80 x 12.5 x 98.5
Electrical connection
Connection push-in terminals:
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DF3100-00 — 05.11.2020 —
