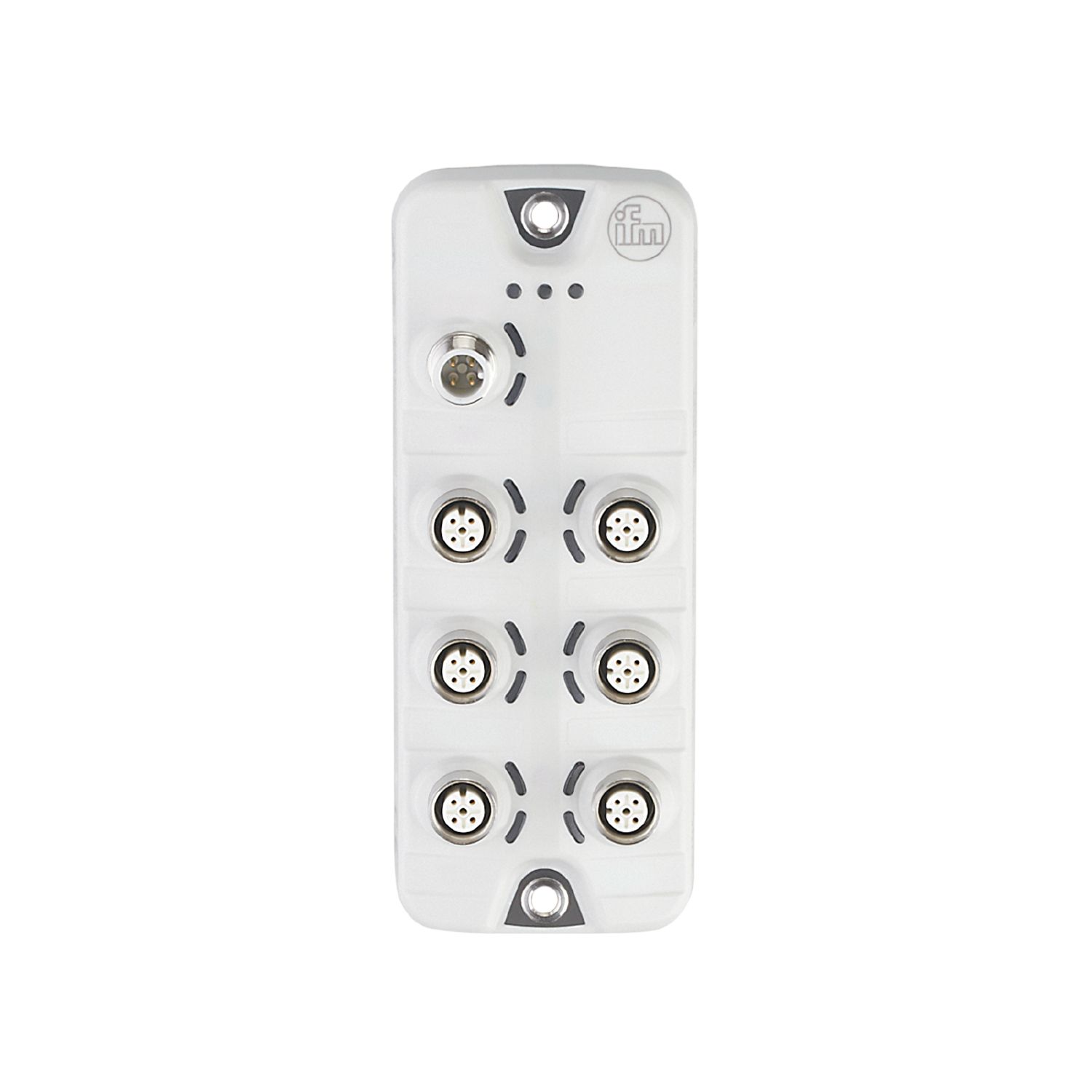

Electrical data
Operating voltage [V] |
18...30 DC |
Current consumption [mA] |
100...700; (US) |
Protection class |
III |
Sensor supply US
Current rating per port [A] |
0.1 |
Inputs / outputs
Number of inputs and outputs |
Number of digital inputs: 12 |
Inputs
Number of digital inputs |
12; (6 x 2 PNP type 2 according to IEC 61131-2) |
Sensor supply of the inputs |
IO-Link |
Power supply [V] |
16...30 |
Interfaces
Communication interface |
IO-Link |
SDCI standard |
IEC 61131-9 |
Transmission type |
COM2 (38,4 kBaud) |
IO-Link revision |
1.1 |
SIO mode |
no |
Required master port type |
A |
Min. process cycle time [ms] |
4.3 |
Supported DeviceIDs |
Type of operation |
DeviceID |
default |
995 |
|
Operating conditions
Ambient temperature [°C] |
-25...60 |
Storage temperature [°C] |
-25...70 |
Max. relative air humidity [%] |
75; (5...75) |
Max. height above sea level [m] |
2000 |
Protection |
IP 65; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
Protection rating (NEMA 250) |
6P |
Pollution degree |
2 |
Chemical media |
ISO 16750-5 |
HLP, CC, DB, DC, DD, CA |
NEMA 250 5.13.1 |
AA |
|
Tests / approvals
EMC |
EN 61000-6-2 |
|
EN 61000-6-3 |
|
IEC 61131-9 |
|
|
Shock resistance |
|
Vibration resistance |
DIN EN 60068-2-64 |
|
DIN EN 60068-2-6 |
|
|
MTTF [years] |
197 |
Mechanical data
Weight [g] |
300 |
Materials |
housing: PA grey; socket: stainless steel (316L/1.4404) |
Sealing material |
EPDM |
Displays / operating elements
Display |
operation |
1 x LED, green |
fault |
1 x LED, red |
function |
1 x LED, yellow |
|
Accessories
Accessories (optional) |
protective cap for M12 sockets |
|
Electrical connection - IO-Link
X1 |
Connector: 1 x M12; coding: A |
Electrical connection - Inputs
X1.0...X1.5 |
Connector: 6 x M12; coding: A; Sealing: EPDM |
