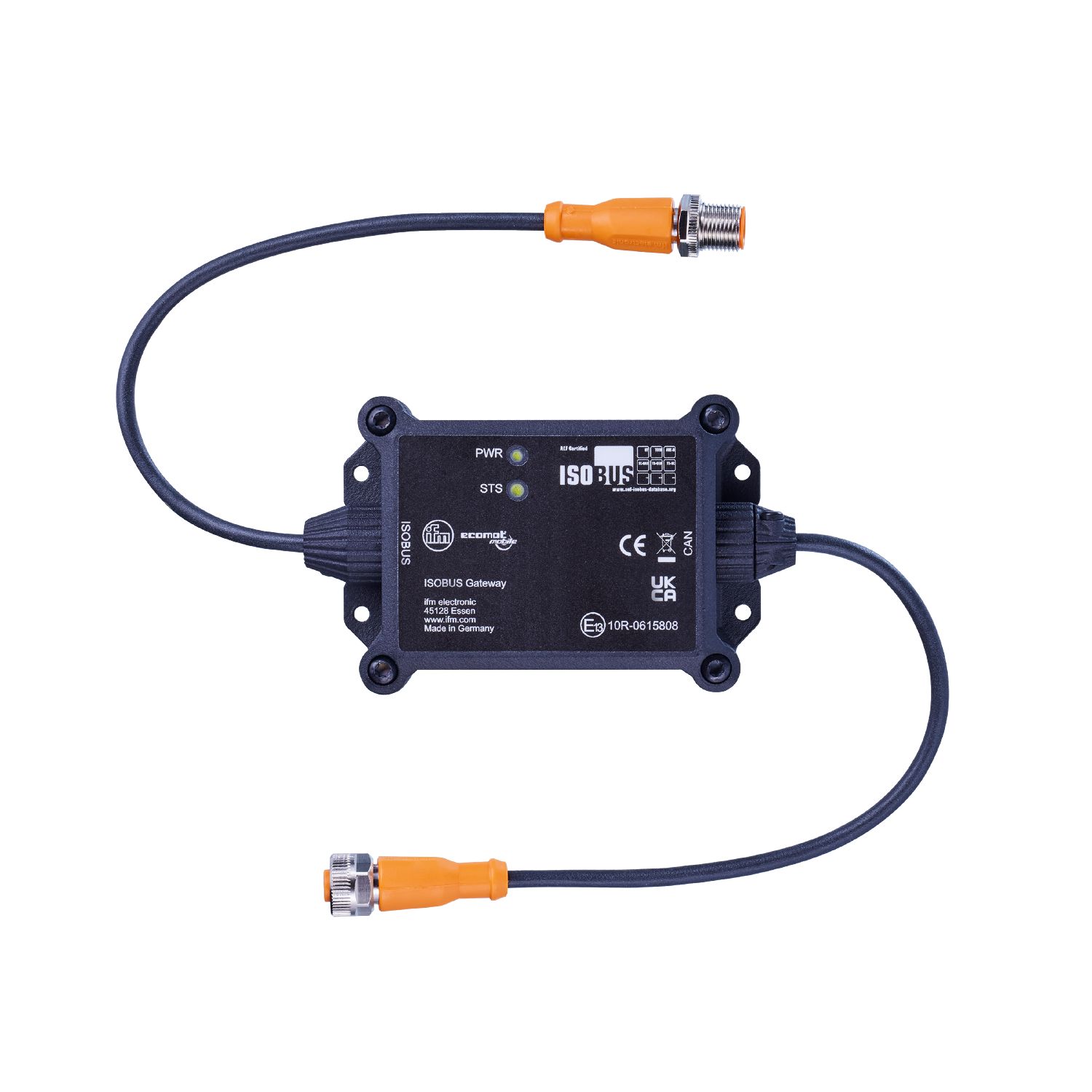

ISOBUS gateway
CR3121
ISOBUS Gateway/VT
ISOBUS gateway
CR3121
ISOBUS Gateway/VT
Data kelistrikan
| Tegangan pengoperasian [V] | 12...27 DC |
|---|---|
| Konsumsi arus [mA] | 11...48 |
Interface
| Interface komunikasi | CAN |
|---|---|
| Jumlah interface CAN | 2 |
| Laju transmisi | 250 (125...1000) kBaud |
|---|---|
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Resistor pemutus | ya; (internal ; 120 Ohm; tidak dapat dinonaktifkan) |
| Laju transmisi | 250 kBaud |
|---|---|
| Interface | CAN Interface ISO 11783 |
| Resistor pemutus | tidak |
Kondisi pengoperasian
| Suhu sekitar [°C] | -40...80 |
|---|---|
| Perlindungan | IP 67 |
Data teknis
| Berat [g] | 190.1 |
|---|---|
| Tipe pemasangan | panel/permukaan |
| Dimensi [mm] | 72 x 104 x 29 |
| Material | casing: PA 12 hitam |
Elemen display/pengoperasian
| Display |
|
|---|
Hardware
| Prosesor | ARM Cortex M4 32 bit |
|---|---|
| Memori program | 1,5 MB Flash |
| Memori kerja | RAM: 320 kB FRAM: 16 kB |
Keterangan
| Jumlah paket | 1 buah |
|---|
Koneksi listrik - CAN
| Konektor: 1 x M12; pengkodean: A |
Koneksi listrik - ISOBUS
| Konektor: 1 x M12; pengkodean: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — Kami berhak melakukan perubahan teknis tanpa pemberitahuan sebelumnya. — ID-ID — CR3121-00 — 01.06.2023 —
CR3121 –
ISOBUS Gateway/VT
- 1
- konektor M12
- 2
- LED daya
- 3
- LED status
Koneksi listrik - CAN
- 1
- n.c.
- 2
- n.c.
- 3
- n.c.
- 4
- CAN_H
- 5
- CAN_L
Konektor: 1 x M12; pengkodean: A
Koneksi listrik - ISOBUS
- 1
- n.c.
- 2
- VBB
- 3
- GND
- 4
- CAN_H
- 5
- CAN_L
Konektor: 1 x M12; pengkodean: A
