| Application |
| Function principle |
Diffuse reflection sensor |
| Electrical data |
| Operating voltage [V] |
10...30 DC |
| Current consumption [mA] |
20; ((24 V)) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
633 |
| Outputs |
| Electrical design |
PNP |
| Output function |
light-on mode |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Detection zone |
| Range [mm] |
1...80; (white paper 200 x 200 mm) |
| Range on white object (90 % remission) [mm] |
1...80 |
| Range on grey object (18 % remission) [mm] |
3...76 |
| Range on black object (6 % remission) [mm] |
5...74 |
| Range adjustable |
yes |
| Max. light spot diameter [mm] |
4 |
| Light spot dimensions refer to |
at maximum range |
| Monitoring range final value [mm] |
10...80 |
| Background suppression available |
yes |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38.4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| IO-Link device ID |
535 d / 00 02 17 h |
| Profiles |
Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Binary Data Channel |
| SIO mode |
yes |
| Required master port type |
A |
| Operating conditions |
| Ambient temperature [°C] |
-25...60 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
| EMC |
|
| MTTF [years] |
757 |
| Mechanical data |
| Weight [g] |
21.1 |
| Housing |
rectangular |
| Dimensions [mm] |
28.1 x 8.1 x 14.4 |
| Materials |
housing: ABS; stainless steel (1.4404 / 316L) |
| Lens material |
|
| Lens alignment |
side lens |
| Displays / operating elements |
| Display |
| switching status |
1 x LED, yellow |
| operation |
1 x LED, green |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Cable: 0.3 m, PVC; 3 x 0.08 mm² |
| Connection |
Connector: 1 x M8 |
| Diagrams and graphs |
|
|

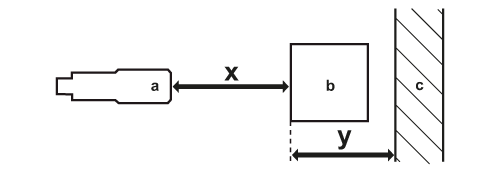

a:
|
sensor |
|
b:
|
object |
|
c:
|
background |
|
x:
|
distance sensor/object [mm] |
|
y:
|
min. distance object/background [mm] |
|

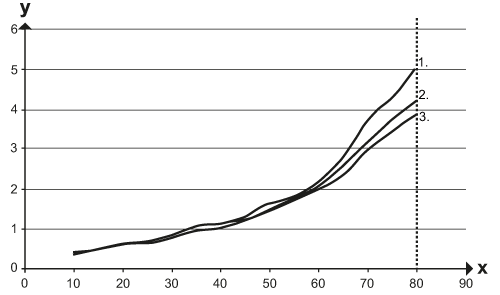

| accuracy graph |
|
x:
|
distance sensor/object [mm] |
|
y:
|
min. distance object/background [mm] |
|
1 =
|
object black (6 % remission) , background (white 90 % remission) |
|
2 =
|
object grey (18 % remission) , background (white 90 % remission) |
|
3 =
|
object white (90 % remission) , background (white 90 % remission) |
|
