| Application |
| Function principle |
Retro-reflective sensor |
| Electrical data |
| Operating voltage [V] |
10...30 DC |
| Current consumption [mA] |
12; ((24 V)) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
633 |
| Outputs |
| Electrical design |
NPN |
| Output function |
light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Detection zone |
| Range referred to prismatic reflector [m] |
0.05...5; (Prismatic reflector Ø 80 E20005) |
| Range adjustable |
yes |
| Max. light spot diameter [mm] |
150 |
| Light spot dimensions refer to |
at maximum range |
| Polarisation filter available |
yes |
| Operating conditions |
| Ambient temperature [°C] |
-25...60 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
| EMC |
|
| MTTF [years] |
895 |
| UL approval |
|
| Mechanical data |
| Weight [g] |
18 |
| Housing |
rectangular |
| Dimensions [mm] |
46 x 13 x 21 |
| Materials |
housing: ABS; PPSU; connector thread: brass coated; Sealing: EPDM |
| Lens material |
|
| Lens alignment |
side lens |
| Material nut |
brass |
| Tightening torque [Nm] |
0.5 |
| Displays / operating elements |
| Display |
| switching status |
1 x LED, yellow |
| operation |
1 x LED, green |
|
| Remarks |
| Remarks |
| operating voltage "supply class 2" according to cULus |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M8; Locking: brass, coated |
| Diagrams and graphs |

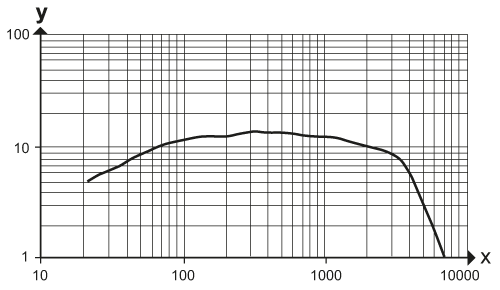

| excess gain graph |
|
x:
|
Abstand [mm] |
|
y:
|
Funktionsreservefaktor |
|
