OIH582

Diffuse reflection sensor with background suppression

OIH-HNKG/US/800MM

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Particularly robust metal housing for use in harsh industrial environments
  • Simple switch point setting via potentiometer and distance scale
  • Very long range
  • Precise background suppression and colour-independent detection
  • Simple alignment due to visible red light
  • ce
  • cul
Download
Technische Details
Product characteristics
Type of light red light
Dimensions [mm] M30 x 1.5
Application
Special feature Background suppression
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...30 DC; ("supply class 2" to cULus)
Current consumption [mA] 35
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 625
Outputs
Electrical design NPN
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 300
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] 50...800; (white or black paper 200 x 200 mm +/- 6 %)
Range adjustable no
Max. light spot diameter [mm] 55
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 728
Mechanical data
Weight [g] 201.2
Dimensions [mm] M30 x 1.5
Thread designation M30 x 1.5
Materials diecast zinc nickel-plated
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Accessories
Accessories (supplied)
lock nut: 1 x
Remarks
Notes discontinued article
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

a: sensor
b: object
c: background
x: distance sensor/object [mm]
y: min. distance object/background [mm]

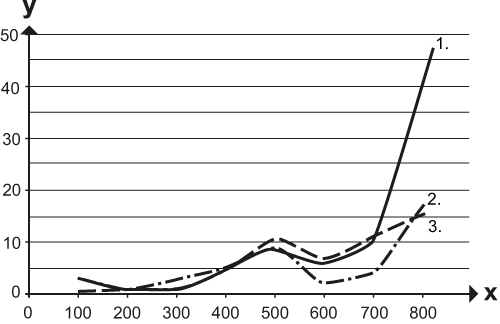

accuracy graph
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OIH582-00 — 13.12.2012 —
