  6. OGT501

OGT501

Diffuse reflection sensor

OGT-FPKG/2M

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Robust stainless steel housing for use in harsh industrial environments
  • Very long range
  • Intuitive setting of the sensitivity via pushbutton
  • Wide range of fixing components for quick and easy mounting
  • Excellent price/performance ratio
  • ce
  • eac
  • cul
Download
Technische Details
Product characteristics
Type of light red light
Housing threaded type
Dimensions [mm] M18 x 1 / L = 80.4
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 25
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 624
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 150; (200 (...60 °C))
Switching frequency DC [Hz] 2000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] 2...800; (white paper 200 x 200 mm 90 % remission)
Factory setting
light-on mode
Range adjustable yes
Max. light spot diameter [mm] 66
Light spot dimensions refer to at maximum range
Monitoring range final value [mm] 150...800
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 473
Mechanical data
Weight [g] 136.3
Housing threaded type
Dimensions [mm] M18 x 1 / L = 80.4
Thread designation M18 x 1
Materials stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
Teach function yes
Electronic lock yes
Accessories
Accessories (supplied)
lock nuts: 2 x
Remarks
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PUR; 3 x 0.34 mm²
Diagrams and graphs

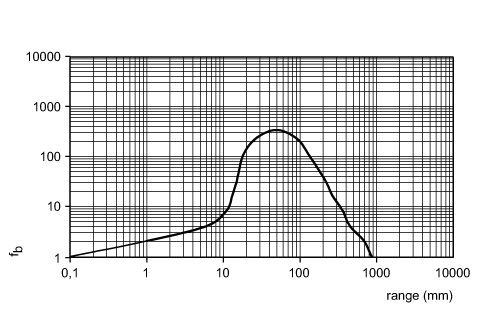

excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGT501-00 — 07.07.2009 —
