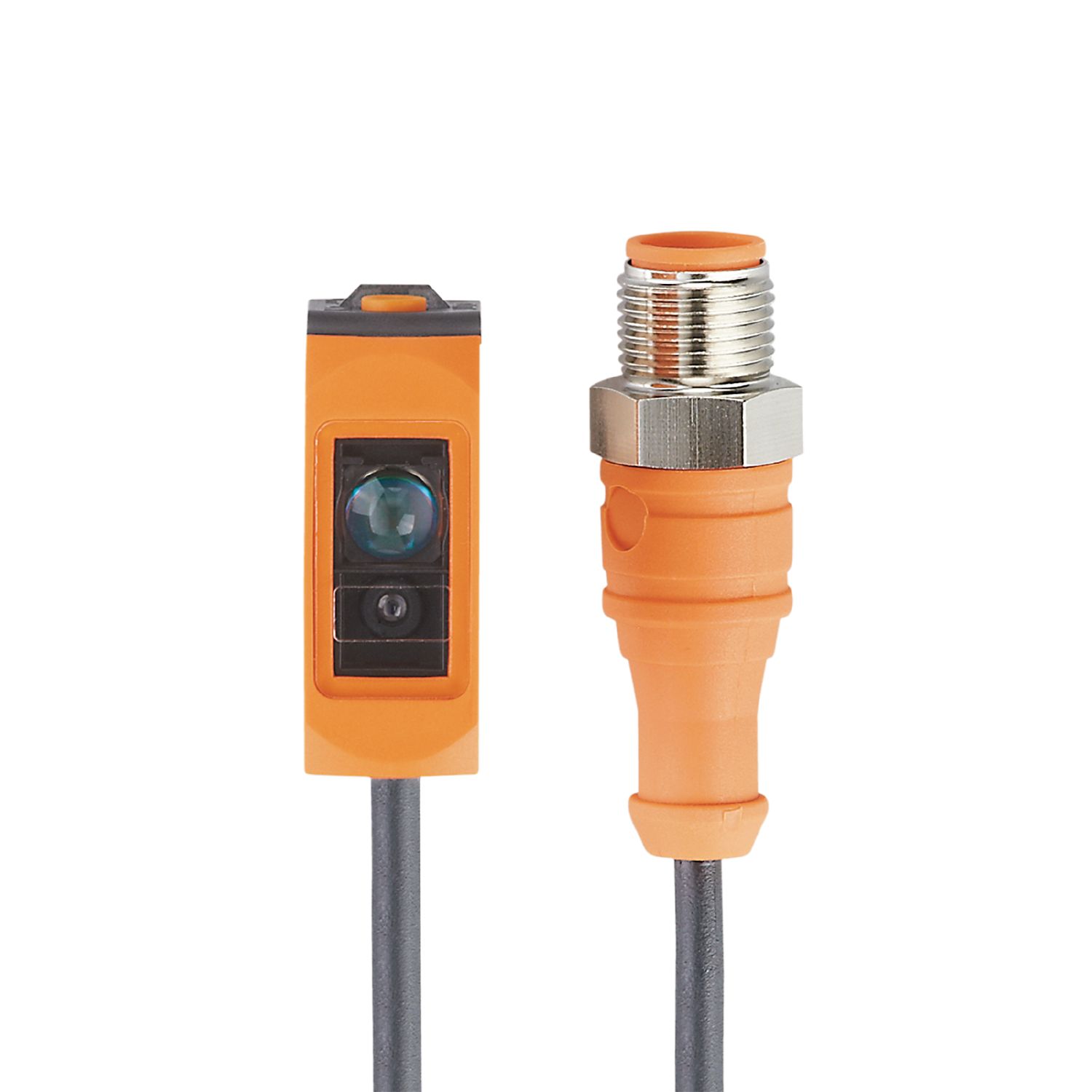

Product characteristics
Type of light |
red light |
Laser protection class |
1 |
Housing |
rectangular |
Application
Special feature |
Background suppression |
Function principle |
Diffuse reflection sensor |
Electrical data
Operating voltage [V] |
10...30 DC |
Current consumption [mA] |
16; (24 V) |
Protection class |
III |
Reverse polarity protection |
yes |
Type of light |
red light |
Wave length [nm] |
650 |
Outputs
Electrical design |
PNP |
Output function |
light-on/dark-on mode; (selectable) |
Max. voltage drop switching output DC [V] |
2.5 |
Permanent current rating of switching output DC [mA] |
100 |
Switching frequency DC [Hz] |
1000 |
Short-circuit protection |
yes |
Type of short-circuit protection |
pulsed |
Detection zone
Range [mm] |
1...100; (white paper 200 x 200 mm) |
Range on white object (90 % remission) [mm] |
1...100 |
Range on grey object (18 % remission) [mm] |
8...100 |
Range on black object (6 % remission) [mm] |
12...100 |
Range adjustable |
yes |
Max. light spot diameter [mm] |
2 |
Light spot dimensions refer to |
at maximum range |
Background suppression available |
yes |
Interfaces
Communication interface |
IO-Link |
Transmission type |
COM2 (38,4 kBaud) |
IO-Link revision |
1.1 |
SDCI standard |
IEC 61131-9 |
Profiles |
Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel; Process Data Variable |
SIO mode |
yes |
Required master port type |
A |
Min. process cycle time [ms] |
10 |
IO-Link process data (cyclical) |
function |
bit length |
process value |
32 |
device status |
4 |
binary switching information |
1 |
|
IO-Link functions (acyclical) |
application specific tag; operating hours counter; switch-on cycle counter |
Supported DeviceIDs |
Type of operation |
DeviceID |
default |
526 |
|
Operating conditions
Ambient temperature [°C] |
-10...60 |
Protection |
IP 65; IP 67 |
Tests / approvals
EMC |
|
Laser protection class |
1 |
Notes on laser protection |
Caution: |
laser light |
laser class: |
1 |
|
EN / IEC60825-1:2007 |
|
EN / IEC60825-1:2014 |
|
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007. |
|
MTTF [years] |
513 |
Mechanical data
Weight [g] |
33.8 |
Housing |
rectangular |
Dimensions [mm] |
35.4 x 13 x 21 |
Materials |
housing: ABS; PPSU; Sealing: EPDM |
Lens material |
|
Lens alignment |
side lens |
Tightening torque [Nm] |
0.5; (screws) |
Displays / operating elements
Display |
switching status |
1 x LED, yellow |
operation |
1 x LED, green |
|
Remarks
Remarks |
operating voltage "supply class 2" according to cULus |
|
Pack quantity |
1 pcs. |
Electrical connection
Connection |
Connector: 1 x M12; coding: A |
Electrical connection - plug
|
Cable: 0.3 m, PUR, black, Ø 3.7 mm; 3 x 0.25 mm² |
Diagrams and graphs
|
a:
|
sensor |
b:
|
object |
c:
|
background |
x:
|
distance sensor/object [mm] |
y:
|
min. distance object/background [mm] |
|
|
x:
|
distance sensor/object [mm] |
y:
|
min. distance object/background [mm] |
1 =
|
object black (6 % remission) , background white (90 % remission) |
2 =
|
object grey (18 % remission) , background white (90 % remission) |
3 =
|
object white (90 % remission) , background white (90 % remission) |
|
Other data
Repeatability / precision: 6 σ
|
repeatability of the measured values |
|
Abstand |
white (90 % remission) |
black (6 %...90 % remission) |
20 mm |
0.1 mm |
0.5 mm |
50 mm |
0.2 mm |
1.0 mm |
100 mm |
0.5 mm |
2.0 mm |
|
|
|
|
accuracy |
|
Abstand |
white (90 % remission) |
black (6 %...90 % remission) |
20 mm |
± 0.6 mm |
± 0.9 mm |
50 mm |
± 1.5 mm |
± 2.0 mm |
100 mm |
± 3.0 mm |
± 4.0 mm |
|
|
|
The values apply at |
|
Extraneous light on the object |
< 10 klx |
constant ambient conditions |
23 °C / 960 hPa |
minimum power-on time in minutes |
10 |
IO-Link - measuring mode |
|
