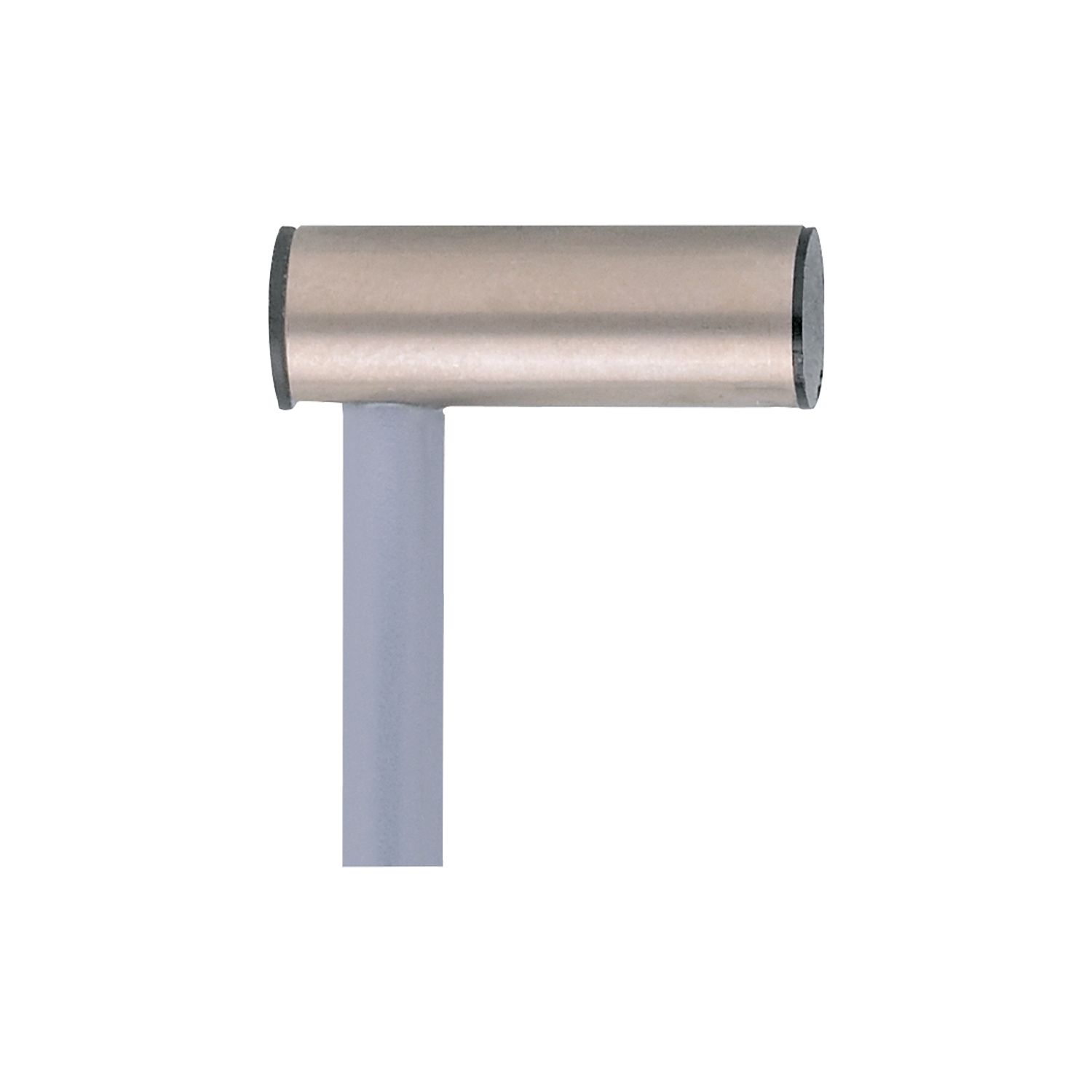

Inductive sensor

IT5039

ITB3002-BPKG/2M PVC

Inductive sensor

IT5039

ITB3002-BPKG/2M PVC

  • Particularly short housing
  • For use where space is restricted
  • Space-saving connection technology due to cable entry on the side
  • Robust metal housing for use in harsh industrial environments
  • Very high switching frequency
  • ce
  • cul
Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 2
Housing cylindrical
Dimensions [mm] Ø 6.5 / L = 19
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 20; (24 V)
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection no
Detection zone
Sensing range [mm] 2
Real sensing range Sr [mm] 2 ± 10 %
Operating distance [mm] 0...1.6
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr] < 15
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 1045
UL approval
Ta 0...40 °C
power supply Class 2
File number UL E174191
Mechanical data
Weight [g] 57
Housing cylindrical
Mounting flush mountable
Dimensions [mm] Ø 6.5 / L = 19
Materials housing: stainless steel; sensing face: PBT
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC; 3 x 0.14 mm²
