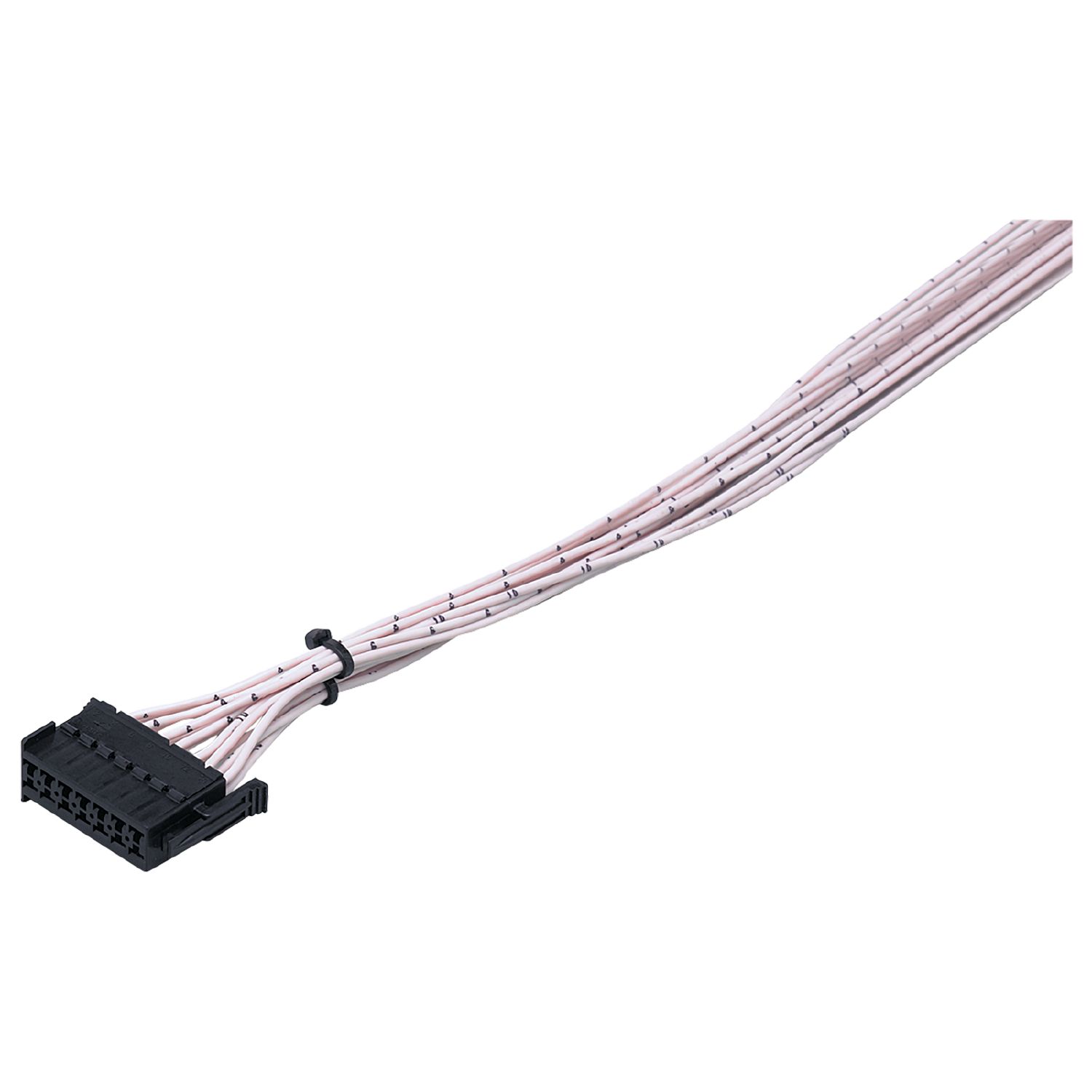

Connecting cable with AMP connector

EC1522

R360/CabinetCable/14 pins

Connecting cable with AMP connector

EC1522

R360/CabinetCable/14 pins

  • For a reliable signal transmission of controllers and dialogue modules
  • Wide operating temperature range
  • For applications in mobile machines and in particularly harsh industrial environments
  • AMP connector for the fast and easy connection to the on-board system
  • Lockable connector with reverse polarity protection
  • ce
Application
Design for CabinetController, for CabinetModule
Electrical data
Operating voltage [V] 30 AC / 36 DC
Mechanical data
Weight [g] 204.6
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 1.2 m; 1 mm²
Connector: 1 x AMP
