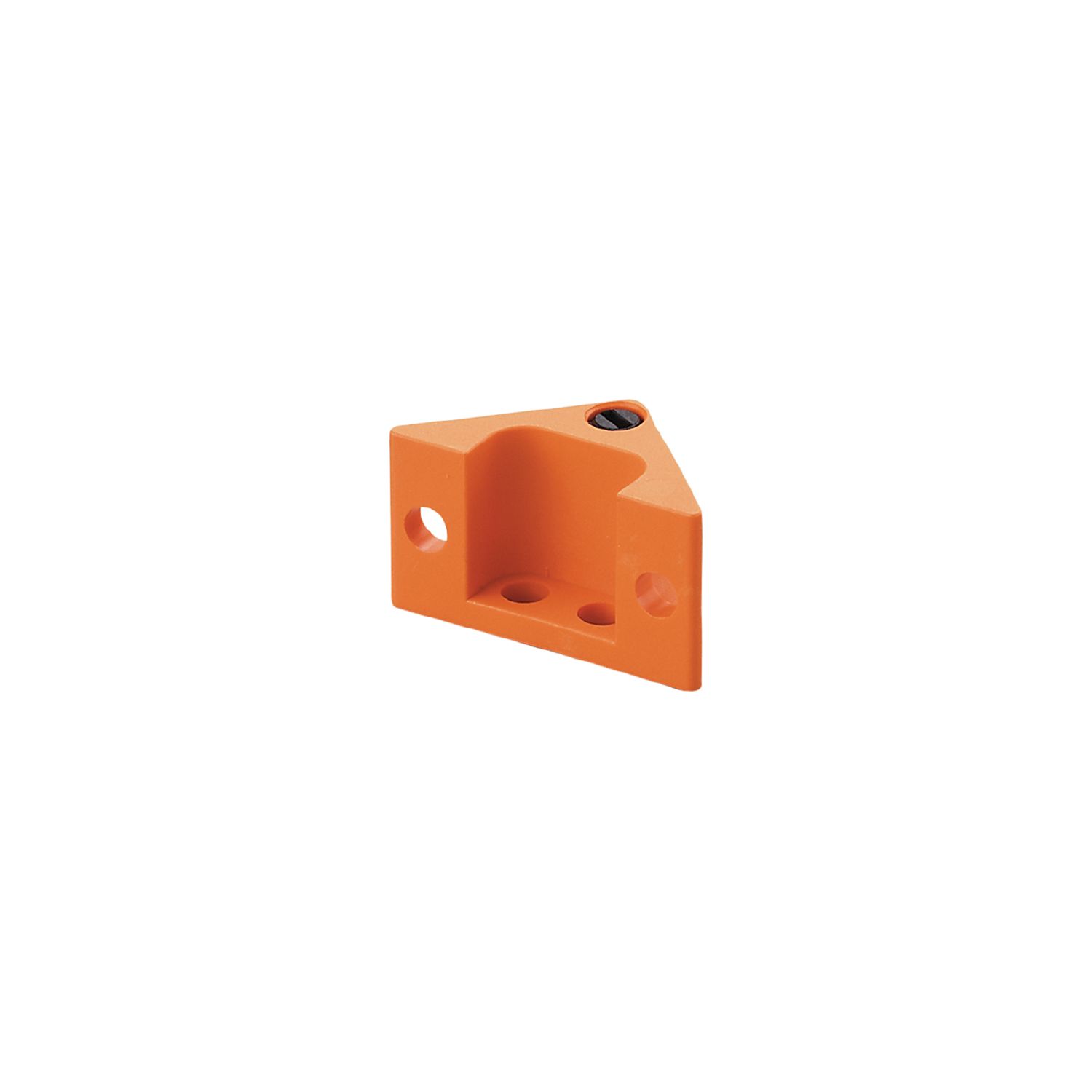

RFID tag

E80348

ID-TAG/TRIANGLE HOUSING/06

RFID tag

E80348

ID-TAG/TRIANGLE HOUSING/06

  • RFID tag 13.56 MHz - ISO15693
  • Reliable coding of workpiece carriers and products
  • tag fixture for workpiece carriers
{{ifmVariantName}}



  • ce
Technical details
Application
Application coding of workpiece carriers in routing conveyors
Electrical data
Operating frequency [MHz] 13,56
Memory size [bit] 896
Memory type EEPROM
Chip type Vigo
Number of blocks 28
Block size [Byte] 4
Unique Identification Number (UID) [Byte] 8
RFID standard ISO 15693
Max. read cycles unlimited
Max. write cycles 100000
Operating conditions
Ambient temperature [°C] -25...85
Storage temperature [°C] -40...90
Protection IP 67
Tests / approvals
Shock resistance
DIN IEC 68-2-29 30 g 18 ms
Vibration resistance
DIN IEC 68-2-6 6 g 14...200 Hz
Radio approval ISO 15693
Mechanical data
Weight [g] 9.1
Housing tag fixture for workpiece carriers
Type of mounting Installation on metal and non-metal materials; (screw fastening ; sticking to a surface)
Dimensions [mm] 18 x 33 x 16.9
Materials PBT orange; PA black
Accessories
Items supplied
Remarks
Pack quantity 1 pcs.
Other data
read distance (mm)
ANT410 / DTI410 4
ANT411 / DTI411 5
ANT420 / DTI420 / DTM424 / DTI424 / DTM426 -
ANT421 / DTI421 / DTM425 / DTI425 / DTM427 10
ANT430 / DTI430 / DTM434 / DTI434 / DTM436 5
ANT431 / DTI431 / DTM435 / DTI435 / DTM437 15
ANT513 / DTI513 / DTC510 20
ANT515 / DTI515 / ANT516 / DTI516 5
ANT600 / DTI600 15
