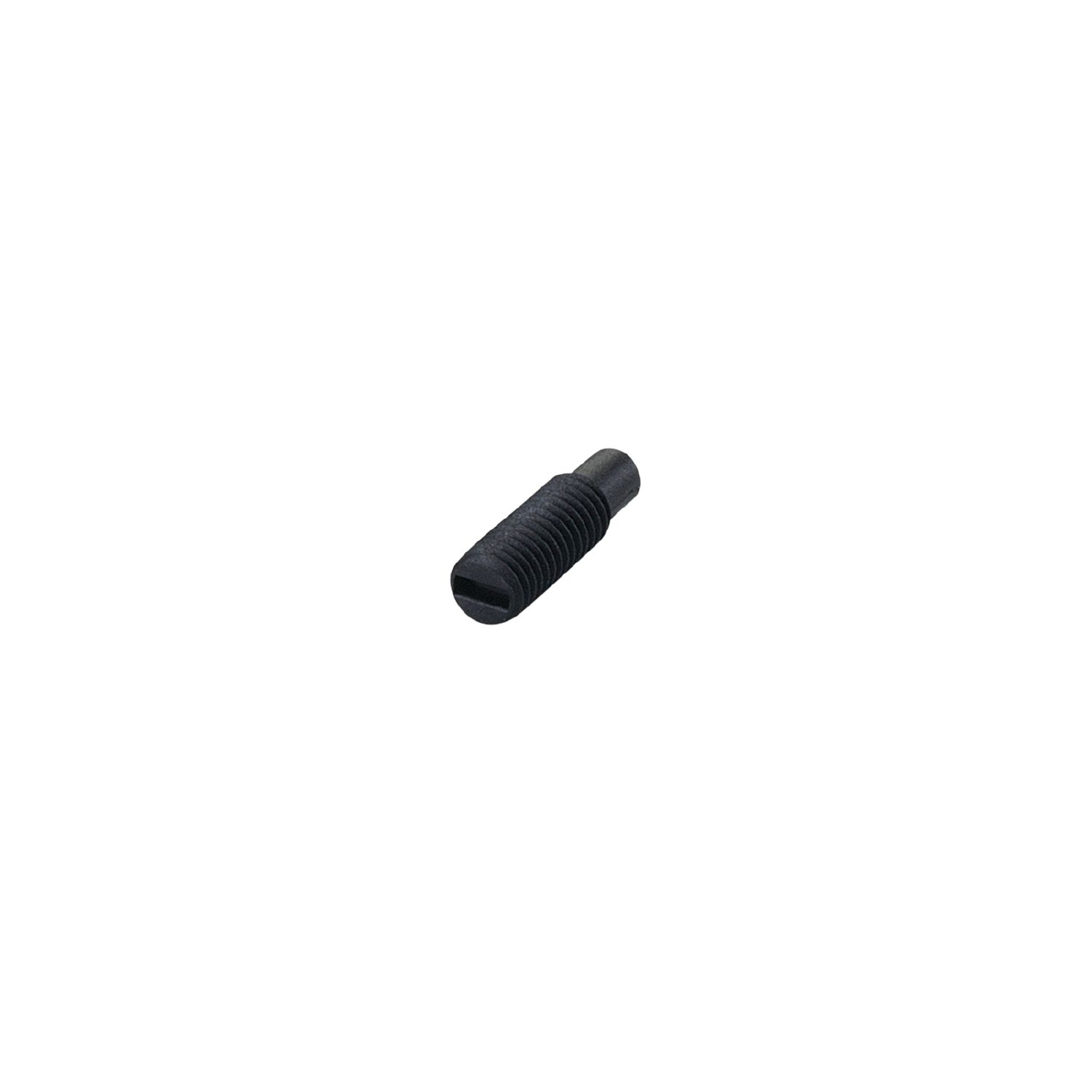

RFID tag

E80345

ID-TAG/M5x16,5/05

RFID tag

E80345

ID-TAG/M5x16,5/05

  • For reliably coding workpiece carriers in routing conveyors
  • Easy, quick and secure mounting
  • High shock and vibration resistance
  • Large operating temperature range and high protection rating
  • Very high number of read and write cycles
  • ce
  • ukca
Application
Application coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C] -25...85
Peak temperature (passive) [°C] 120; (duration of test: 1 x 100 h)
Electrical data
Operating frequency [MHz] 0,125
Memory size [bit] 2048
Max. read cycles unlimited
Max. write cycles 100000
Operating conditions
Ambient temperature [°C] -25...85
Storage temperature [°C] -40...90
Protection IP 67
Tests / approvals
Shock resistance
DIN IEC 68-2-29 30 g 18 ms
Vibration resistance
DIN IEC 68-2-6 6 g 14...200 Hz
Mechanical data
Weight [g] 4.5
Housing threaded type
Type of mounting screw mounting
Dimensions [mm] M5 x 0.8 / L = 16.5
Thread designation M5 x 0.8
Materials PA black
Remarks
Remarks
peak temperature 1 x 100 h
Storage temperature 1 x 1000 h
shock 3 Achsen je 1084 Schocks
vibration 3 Achsen je 8 h
Pack quantity 10 pcs.
