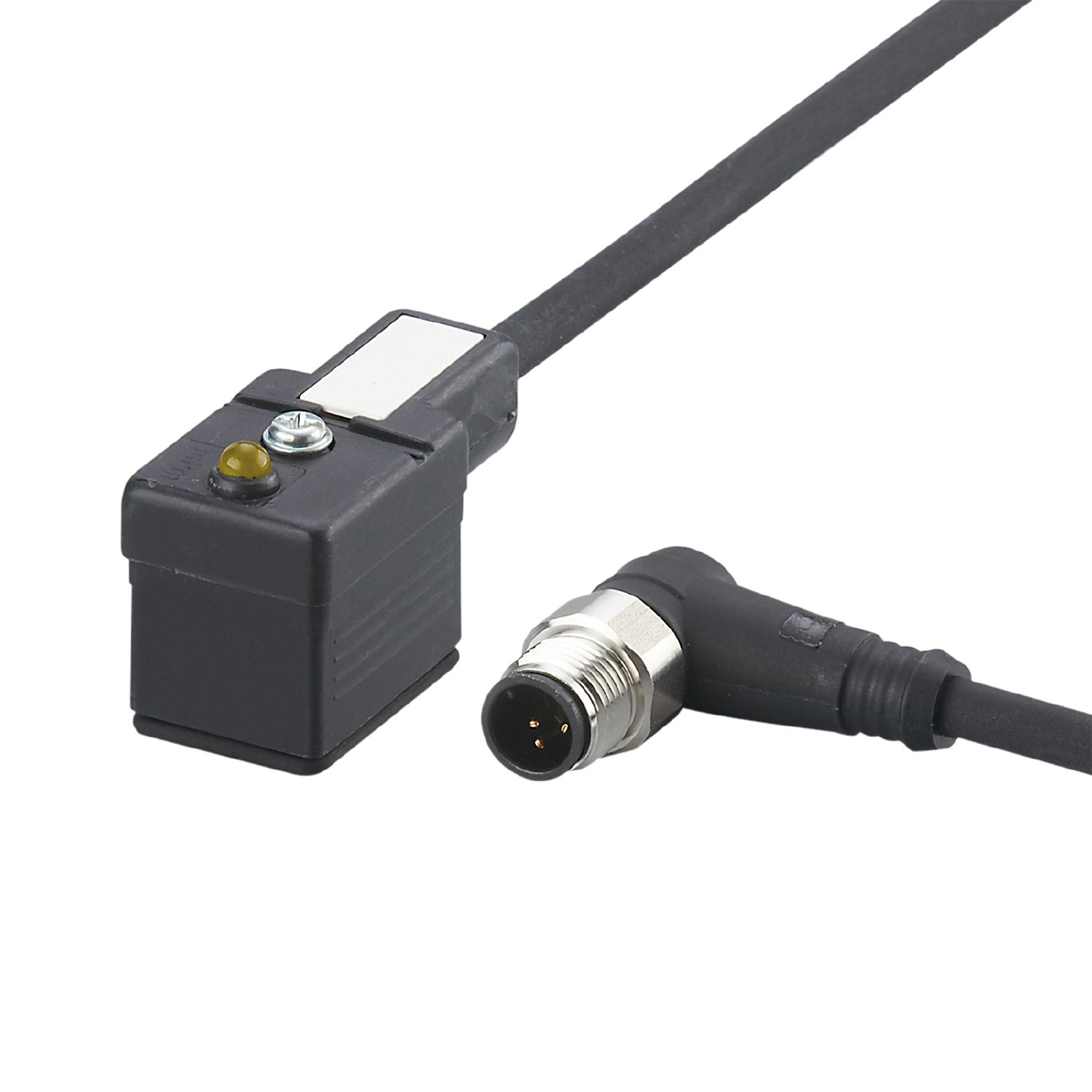

Jumper cable with valve plug

E10820

VVSAB041--S00,6A03STAH030VAS

Jumper cable with valve plug

E10820

VVSAB041--S00,6A03STAH030VAS

  • Reliable connection of valves in the field
  • High protection rating for the requirements of harsh industrial environments
  • Wide operating temperature range
  • Clearly visible LED
  • Robust rectangular connector
  • ce
  • ukca
Application
Special feature Halogen-free
Electrical data
Operating voltage [V] < 24 AC/DC
Overvoltage protection yes; (VDR)
Operating conditions
Ambient temperature [°C] -25...90
Protection IP 67
Mechanical data
Weight [g] 73.7
Dimensions [mm] 30 x 15 x 39
Materials TPU
Moulded-body material TPU
Material nut stainless steel (1.4404 / 316L)
Displays / operating elements
Display
operation 1 x LED, yellow
Accessories
Items supplied
screw
panel for labelling
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connector: 1 x M12, angled; coding: A; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L)
Electrical connection
Connection Cable: 0.6 m, PUR, Halogen-free, black, Ø 4.8 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm )
Electrical connection - socket
Connector: 1 x valve type B industrial standard, angled; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L)
