  6. RU3110

Incremental encoder with solid shaft

INCREMENTAL ENCODER

RU3110

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team


The above price does not include 24% VAT

  • Defined pulse sequence for the reliable detection of rotational speeds
  • For precise position determination and linear measurement
  • User-friendly communication and parameterisation via IO-Link
  • High shock and vibration resistance thanks to magnetic sensing principle
  • Resolution freely programmable from 1 ... 10,000
  • ce
  • iolink
Download
Technische Details
Application
Function principle incremental
Detection system magnetic
Electrical data
Operating voltage [V] 4.75...30 DC
Current consumption [mA] < 150
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 0.5
Max. revolution electrical [U/min] 12000
Outputs
Electrical design HTL/TTL
Switching frequency [kHz] 1000
Factory setting
Output function: HTL (50 mA)
Short-circuit protection yes
Phase difference A und B [°] 90
Measuring/setting range
Resolution 1...10000; (parameterisable; Factory setting: 1024) resolution
Accuracy / deviations
Accuracy [°] 0.1
Software / programming
Parameter setting options Resolution; direction of rotation; HTL; TTL
Interfaces
Communication interface IO-Link
Transmission type COM 2
IO-Link revision 1.1
SIO mode yes
Min. process cycle time [ms] 2.3
Operating conditions
Ambient temperature [°C] -40...85
Storage temperature [°C] -40...85
Max. relative air humidity [%] 95; (condensation not permissible)
Protection IP 67; (on the housing: IP 67; on the shaft: IP 67)
Tests / approvals
Shock resistance
100 g
Vibration resistance
20 g
Mechanical data
Weight [g] 596.5
Dimensions [mm] Ø 58 / L = 63.5
Materials flange: stainless steel (1.4571/316Ti ); housing: stainless steel (1.4521 / 444); plug: stainless steel (1.4401 / 316)
Max. revolution, mechanical [U/min] 12000
Max. starting torque [Nm] 1
Reference temperature torque [°C] 20
Shaft design solid shaft
Shaft diameter [mm] 6
Shaft material
stainless steel (1.4571/316Ti )
Max. shaft load axial (at the shaft end) [N] 40
Max. shaft load radial (at the shaft end) [N] 60
Fixing flange synchro-flange
Electrical connection
IO-Link Connector: 1 x M12, radial, can also be used axially; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m; (IO-Link: max. 20 m)
Diagrams and graphs

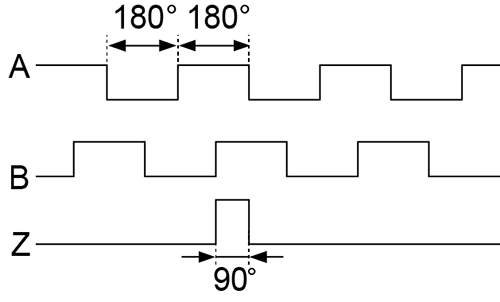

Pulse diagram
direction of rotation clockwise (looking at the shaft)
