| Application |
| Function principle |
Retro-reflective sensor |
| Electrical data |
| Operating voltage [V] |
10...30 DC |
| Current consumption [mA] |
< 15 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
650 |
| Typ. lifetime [h] |
50000 |
| Outputs |
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
200 |
| Switching frequency DC [Hz] |
2000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Detection zone |
| Range referred to prismatic reflector [m] |
8; (Prismatic reflector 50 x 50 mm E20722) |
| Range adjustable |
yes |
| Diameter of the smallest detectable object [mm] |
2.5; (0,1 m; 2,5 m: 4; 5 m: 8) |
| Max. light spot diameter [mm] |
12 |
| Light spot dimensions refer to |
at maximum range |
| Polarisation filter available |
yes |
| Operating conditions |
| Ambient temperature [°C] |
-10...60 |
| Protection |
IP 67 |
| Tests / approvals |
| EMC |
|
| Laser protection class |
1; (IEC 60825-1 : 2007; Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.) |
| MTTF [years] |
697 |
| Mechanical data |
| Weight [g] |
77 |
| Housing |
rectangular |
| Dimensions [mm] |
35 x 11 x 24 |
| Materials |
housing: ABS; LED window: SEPS; pushbutton: SEPS |
| Lens material |
|
| Lens alignment |
side lens |
| Displays / operating elements |
| Display |
| switching status |
1 x LED, yellow |
| operation |
1 x LED, green |
| function |
1 x LED, red |
|
| Electronic lock |
yes |
| Accessories |
| Accessories (supplied) |
| screws: 2 x |
| spring washers: 2 x |
| Nuts: 2 x |
|
| Remarks |
| Remarks |
| operating voltage "supply class 2" according to cULus |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M8 |
| Diagrams and graphs |

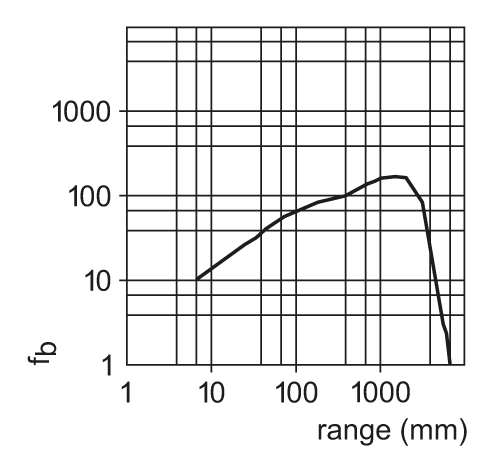

| excess gain graph |
|
