Diffuse reflection sensor with background suppression

O4H-HPKG/US100

O4H200

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team


The above price does not include 24% VAT

  • Very long range
  • Precise background suppression
  • Intuitive setting of the sensitivity via potentiometer
  • Robust housing for use in harsh industrial environments
  • Excellent price/performance ratio
  • ce
  • eac
  • cul
Download
Technische Details
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC; ("supply class 2" to cULus)
Current consumption [mA] 25
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 624
Outputs
Electrical design PNP
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] 100...2000; (white paper 200 x 200 mm 90 % remission)
Range on white object (90 % remission) [mm] 100...2000
Range on grey object (18 % remission) [mm] 100...1100
Range on black object (6 % remission) [mm] 100...700
Range adjustable yes
Max. light spot diameter [mm] 100
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 326
Mechanical data
Weight [g] 121.5
Housing rectangular
Dimensions [mm] 74.4 x 27 x 63.8
Materials housing: PA; bezel: stainless steel; operator interface: TPE / PC
Lens material
PMMA
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
Operating elements
potentiometer
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

a: sensor
b: object
c: background
x: distance sensor/object [mm]
y: min. distance object/background [mm]

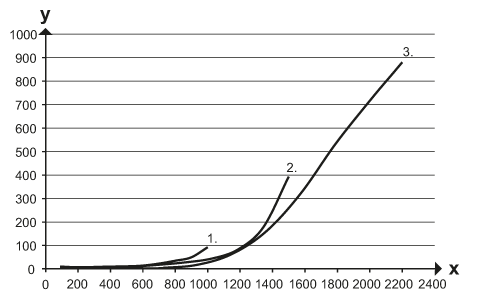

accuracy graph
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O4H200-00 — 21.08.2007 —
