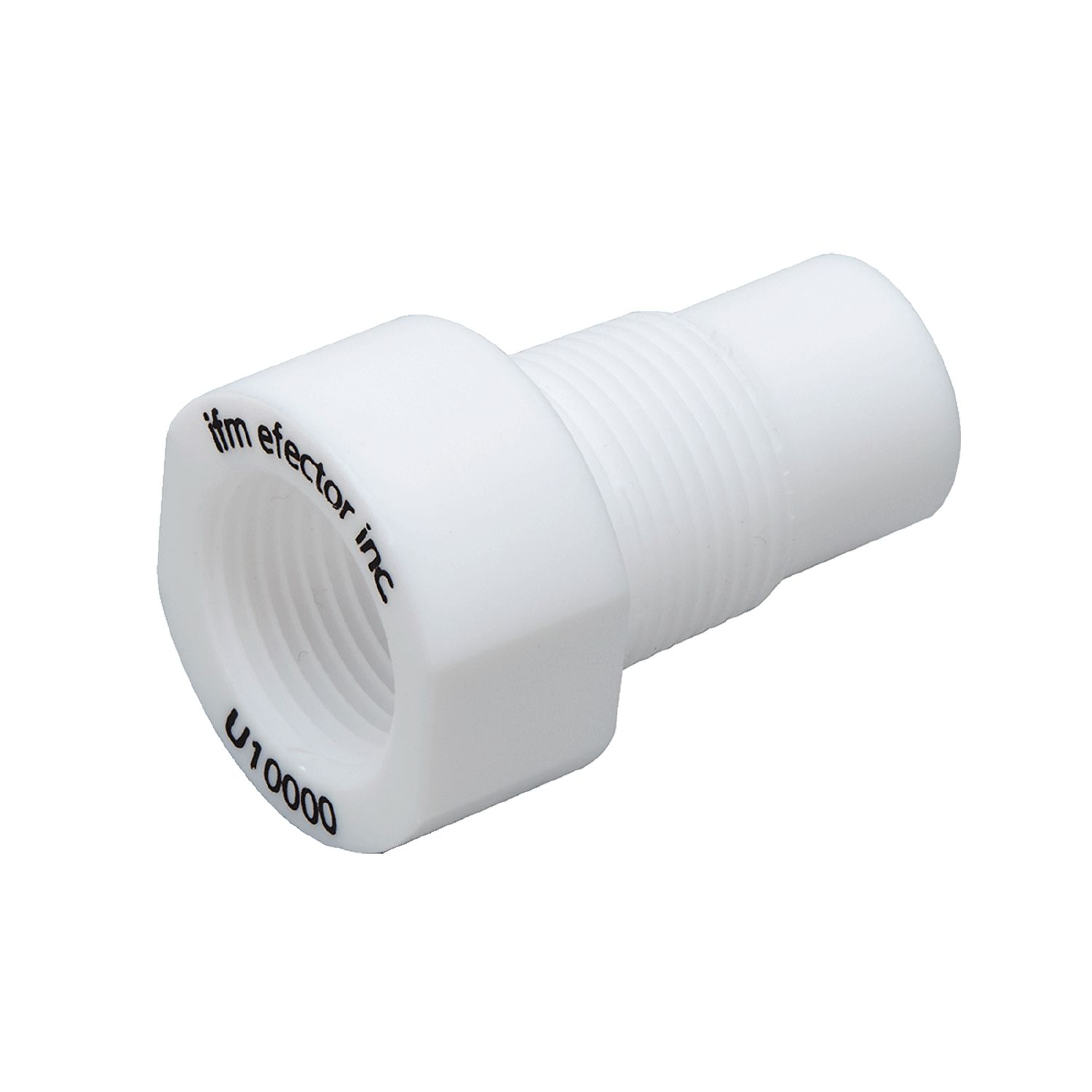

Mounting adapter for capacitive sensors
U10000
WELL, M18, 3/4" NPT, PTFE
Mounting adapter for capacitive sensors
U10000
WELL, M18, 3/4" NPT, PTFE
- Reliable installation in a vessel wall
- Efficient protection against soiling, impact and shock
- For level detection with capacitive sensors in containers and tanks
- High pressure rating
- Use in high medium temperatures
Application
| Design | for types M18 |
|---|---|
| Pressure rating [bar] | 6.9 |
Operating conditions
| Ambient temperature [°C] | -25...246 | |
|---|---|---|
| Note on ambient temperature |
|
Mechanical data
| Weight [g] | 20 |
|---|---|
| Materials | PTFE |
| Process connection | 3/4" NPT |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — U10000-00 — 06.02.2012 —
