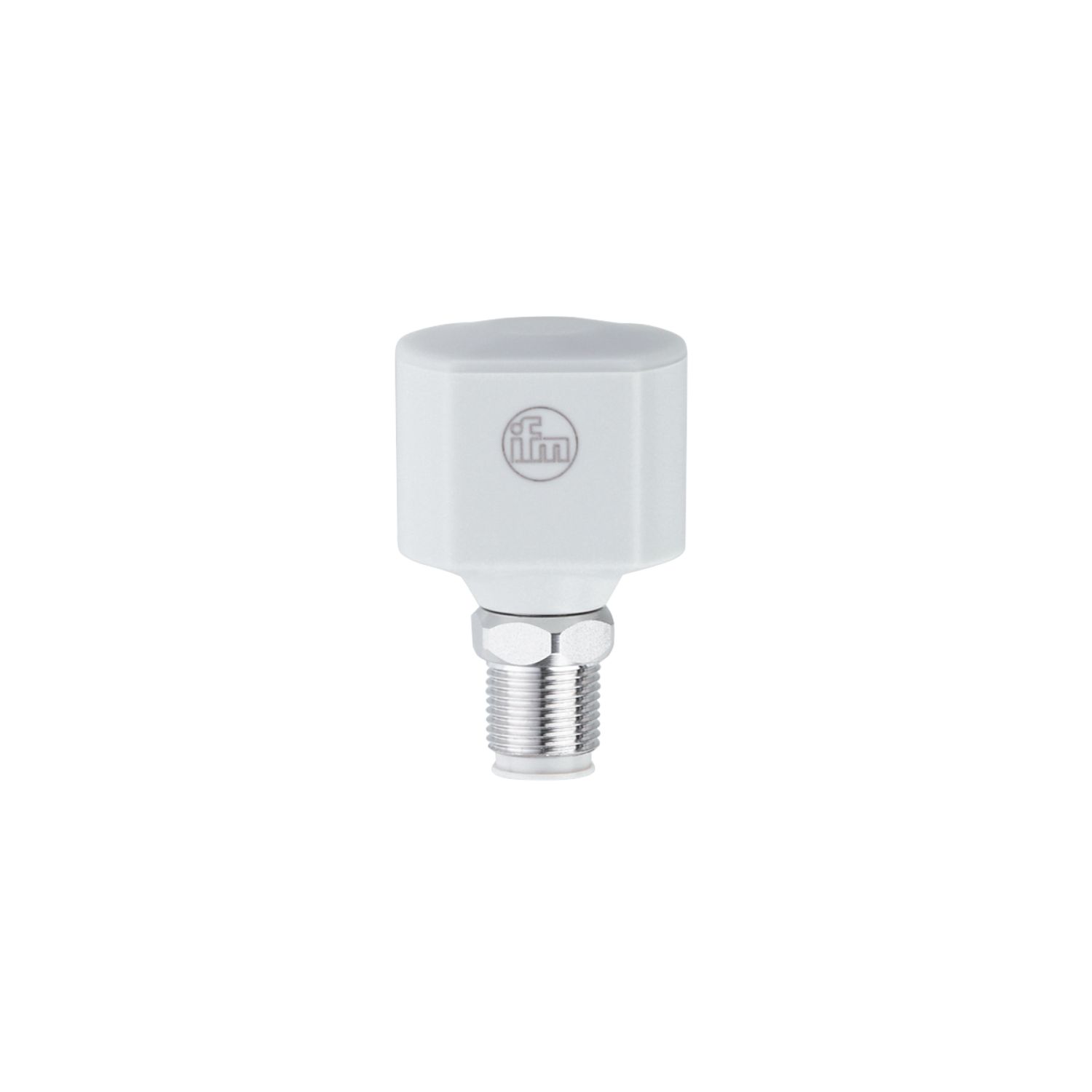

Application
Special feature | Gold-plated contacts | |
---|---|---|
Application | display of all process values of the sensors connected to the same master; device setup and diagnosis; parameter setting and analysis of units; Nur funktionsfähig mit ifm IO-Link Master ab Firmware 2.1 | |
Radio approval for | EU/RED; Australia; USA; New Zealand; Canada; Japan; Brazil; China; South Africa; Argentina; Singapore; Mexico; Malaysia; Vietnam; Chile; Thailand; Taiwan; South Korea; India; Namibia; Indonesia | |
Note on radio approval |
|
Electrical data
Operating voltage [V] | 18...30 DC |
---|---|
Nominal voltage DC [V] | 24 |
Current consumption [mA] | < 30 |
Protection class | III |
Reverse polarity protection | yes |
Power-on delay time [s] | for IO-Link communication < 0,3; Bluetooth < 1 |
Power-on delay time [s] | < 0.3 |
---|
Software / programming
Parameter setting options | process value recording |
---|
Interfaces
Communication interface | IO-Link; Bluetooth | ||||
---|---|---|---|---|---|
Supported DeviceIDs |
|
Transmission standard | BLE 4.0; BLE 4.1; BLE 4.2; EDR 2.0; EDR 2.1 |
---|---|
Frequency band | 2,4 - 2,482 GHz |
Transmission power [mW] | 10; (10 dBm) |
Range | typ. 20 m |
Transmission type | COM3 (230,4 kBaud) |
---|---|
IO-Link revision | 1.1 |
SDCI standard | IEC 61131-9 |
Profiles | Identification (0x8000); Diagnosis (0x8003); Extended Identification (0x8100) |
Required master port type | A |
Min. process cycle time [ms] | 2.3 |
Operating conditions
Ambient temperature [°C] | -25...60 |
---|---|
Storage temperature [°C] | -40...70 |
Protection | IP 67; IP 69K |
Tests / approvals
EMC |
|
||||||
---|---|---|---|---|---|---|---|
Shock resistance |
|
||||||
Vibration resistance |
|
||||||
MTTF [years] | 281 | ||||||
UL approval |
|
Mechanical data
Weight [g] | 94 |
---|---|
Materials | stainless steel (316L/1.4404); PA; Sealing: FKM; |
Displays / operating elements
Display |
|
---|
Remarks
Remarks |
|
|
---|---|---|
Pack quantity | 1 pcs. |
Electrical connection
Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
---|
