- EC3146

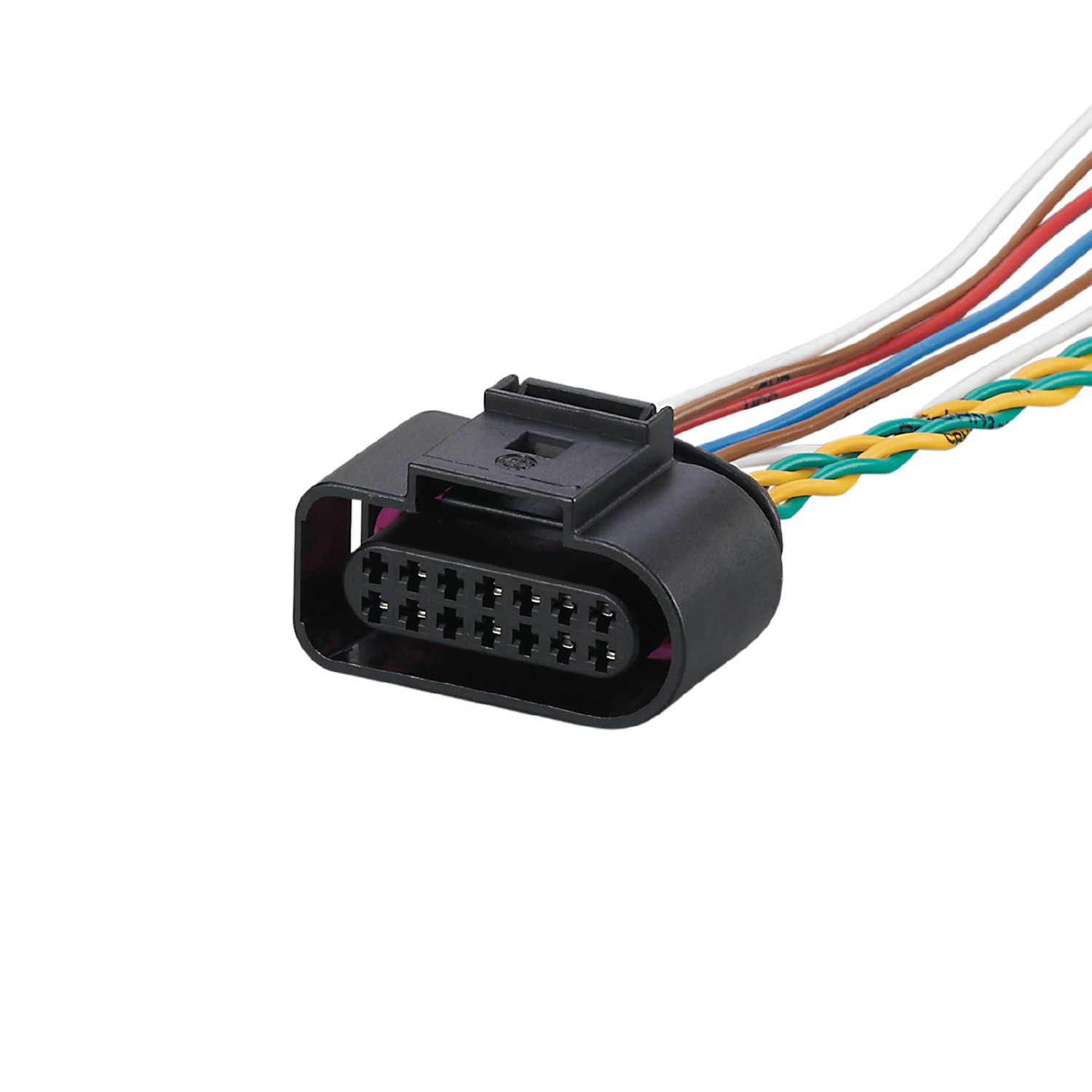

Cable with connector
EC3146
Cable/Connecting/14p/2m
Cable with connector
EC3146
Cable/Connecting/14p/2m
- For a reliable signal transmission
- Large operating voltage range
- For applications in mobile machines and in particularly harsh industrial environments
- Lockable AMP connector with reverse polarity protection
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|
Operating conditions
| Storage temperature [°C] | -40...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 147.3 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2.0 m, PUR, black; 10 x 0.5 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC3146-00 — 16.09.2020 —
EC3146 –
Cable/Connecting/14p/2m
Electrical connection
Cable: 2.0 m, PUR, black; 10 x 0.5 mm²
Connection
- BN =
- brown
- BU =
- blue
- GN =
- green
- RD =
- red
- WH =
- white
- YE =
- yellow
