E70170

Wirable socket

SDOGB030MSSFKPG

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Gold-plated contacts for reliable electrical connections
  • High protection rating for the requirements of harsh industrial environments
  • Wide operating temperature range
  • Safe cable connection with screw terminals
Download
Technische Details
Electrical data
Operating voltage [V] < 45 AC / < 70 DC
Max. current load total [A] 12
Operating conditions
Ambient temperature [°C] -25...85
Protection IP 67
Mechanical data
Weight [g] 54.2
Dimensions [mm] 27 x 27 x 83
Materials PBT
Material nut diecast zinc
Remarks
Pack quantity 1 pcs.

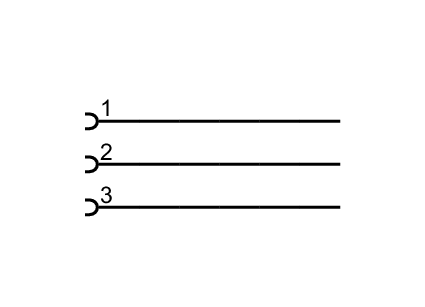

Electrical connection
terminals: ...1.5 mm²; Cable sheath: Ø 8...10 mm
Electrical connection - socket
Connection Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc
