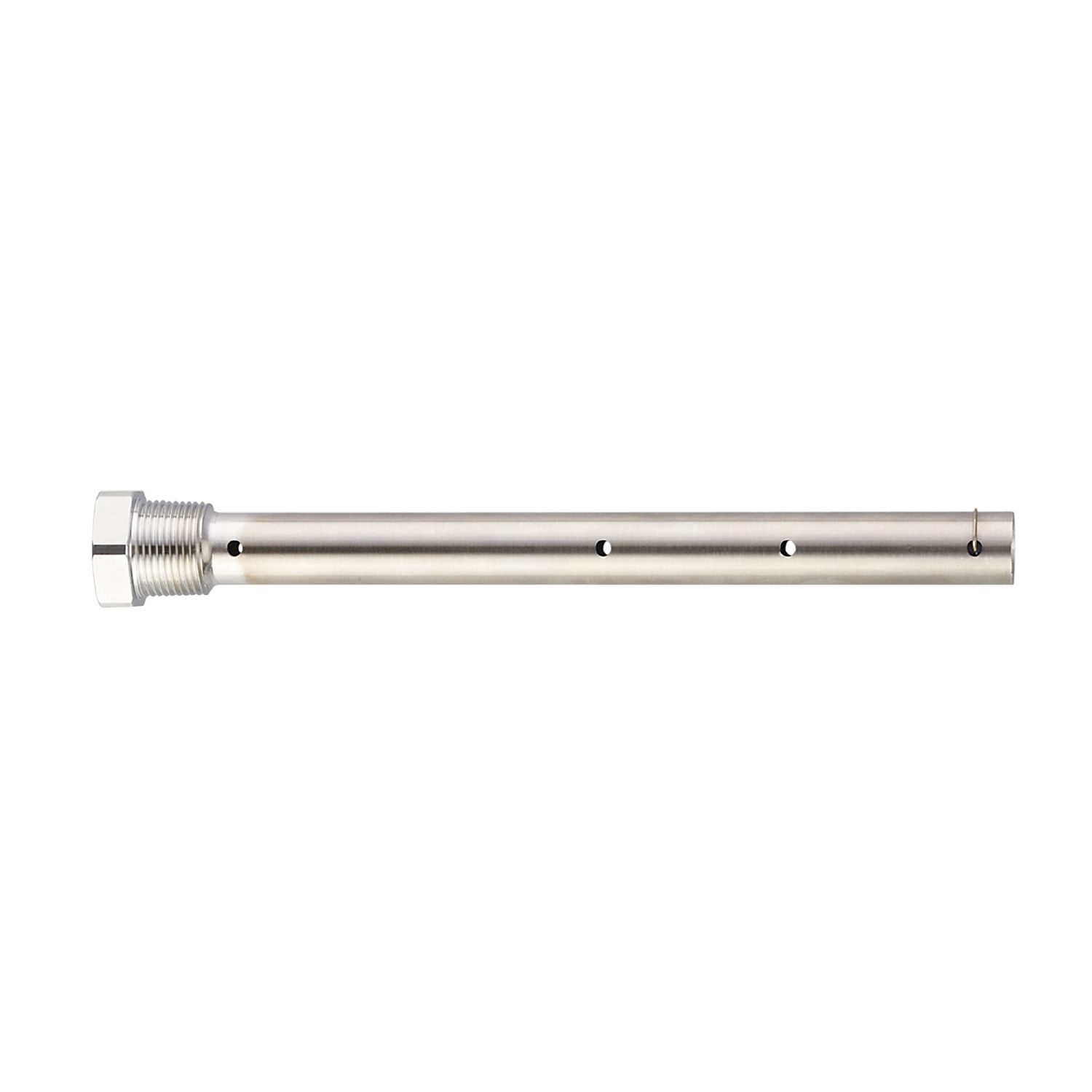

Coaxial pipe for level sensors
E43218
LR COAX TUBE NPT L450
Coaxial pipe for level sensors
E43218
LR COAX TUBE NPT L450
- For use in low dielectric media
- Reliable detection of oils and oil-based media
- Efficient protection against electromagnetic interference
- No minimum distance to the vessel wall required
Order using myifm to benefit from a discounted flat rate delivery charge, irrespective of the number of items in the order.
{{ifmVariantName}}
| Application | |
|---|---|
| Design | for level sensors LR |
| Medium temperature [°C] | -40...200 |
| Pressure rating [bar] | 16 |
| Vacuum resistance [mbar] | -1000 |
| MAWP (for applications according to CRN) [bar] | 16 |
| Mechanical data | |
| Weight [g] | 299.5 |
| Materials | Coaxial pipe: stainless steel (1.4301 / 304); Centring piece: PPS reinforced fibre; fixing bracket: stainless steel (1.4310 / 301) |
| Sensor connection | G 3/4 |
| Process connection | 3/4" NPT |
| Length [mm] | 450 |
| Remarks | |
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43218-01 — 13.01.2017 —
|
|
E43218 –
LR COAX TUBE NPT L450
- 1
- fixing bracket for centring piece
