Process adapter hygienic pipe fitting
E33211
ADAPT IFM-DIN11851 DN32/1.25"
Process adapter hygienic pipe fitting
E33211
ADAPT IFM-DIN11851 DN32/1.25"
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Order using myifm to benefit from a discounted flat rate delivery charge, irrespective of the number of items in the order.
Application
| Pressure rating [bar] | 40 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 134 |
|---|---|
| Materials (wetted parts) | stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4 |
| Sensor connection | G 1 Aseptoflex Vario |
| Process connection | hygienic pipe fitting DN32 (1,25") DIN 11851 |
| Sealing | Gasket |
| Hygienic equipment class to DIN 11866 | H4 |
Accessories
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33211-00 — 25.09.2015 —

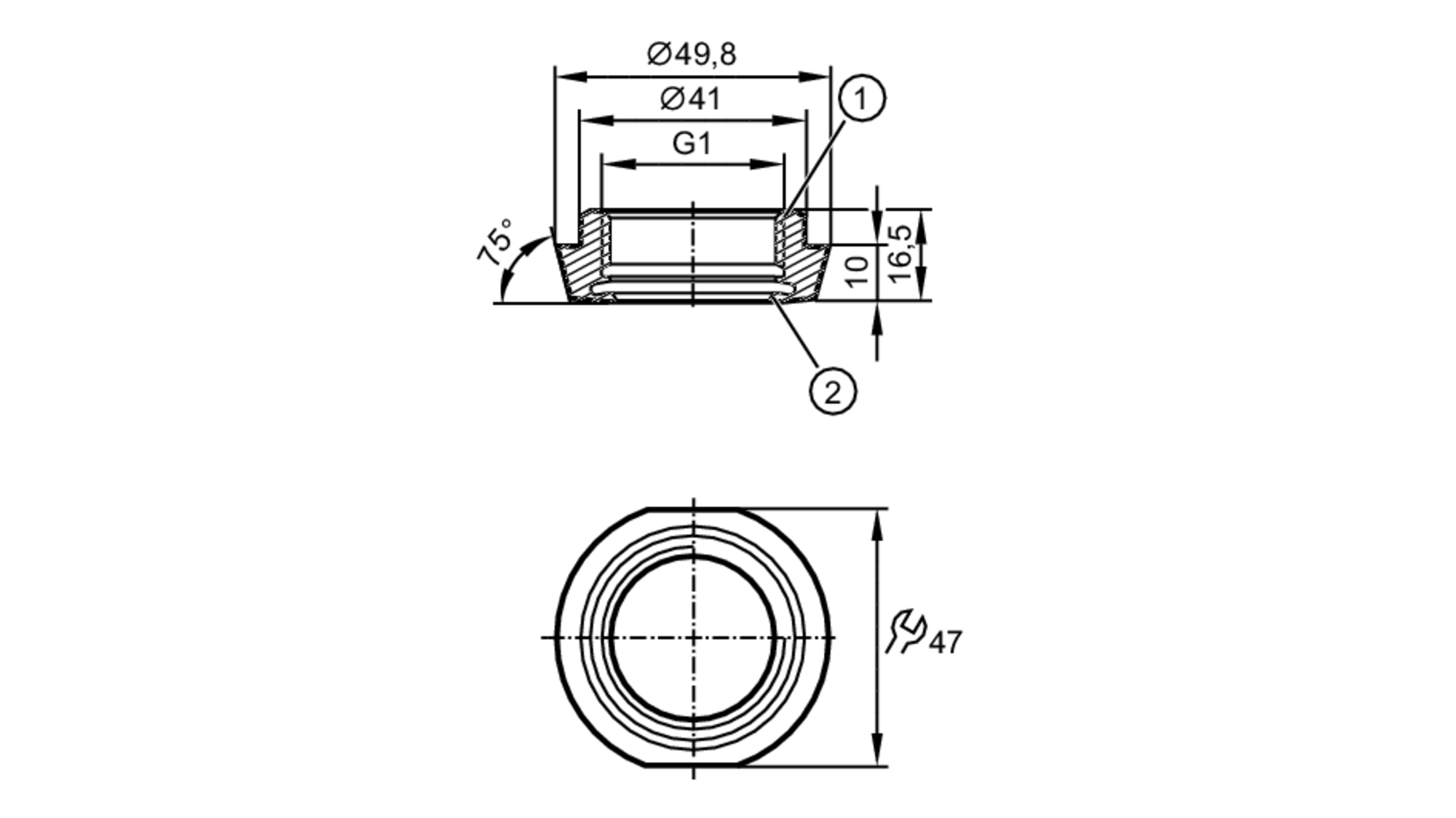

E33211 –
ADAPT IFM-DIN11851 DN32/1.25"
- 1
- Aseptoflex Vario
- 2
- sealing area
