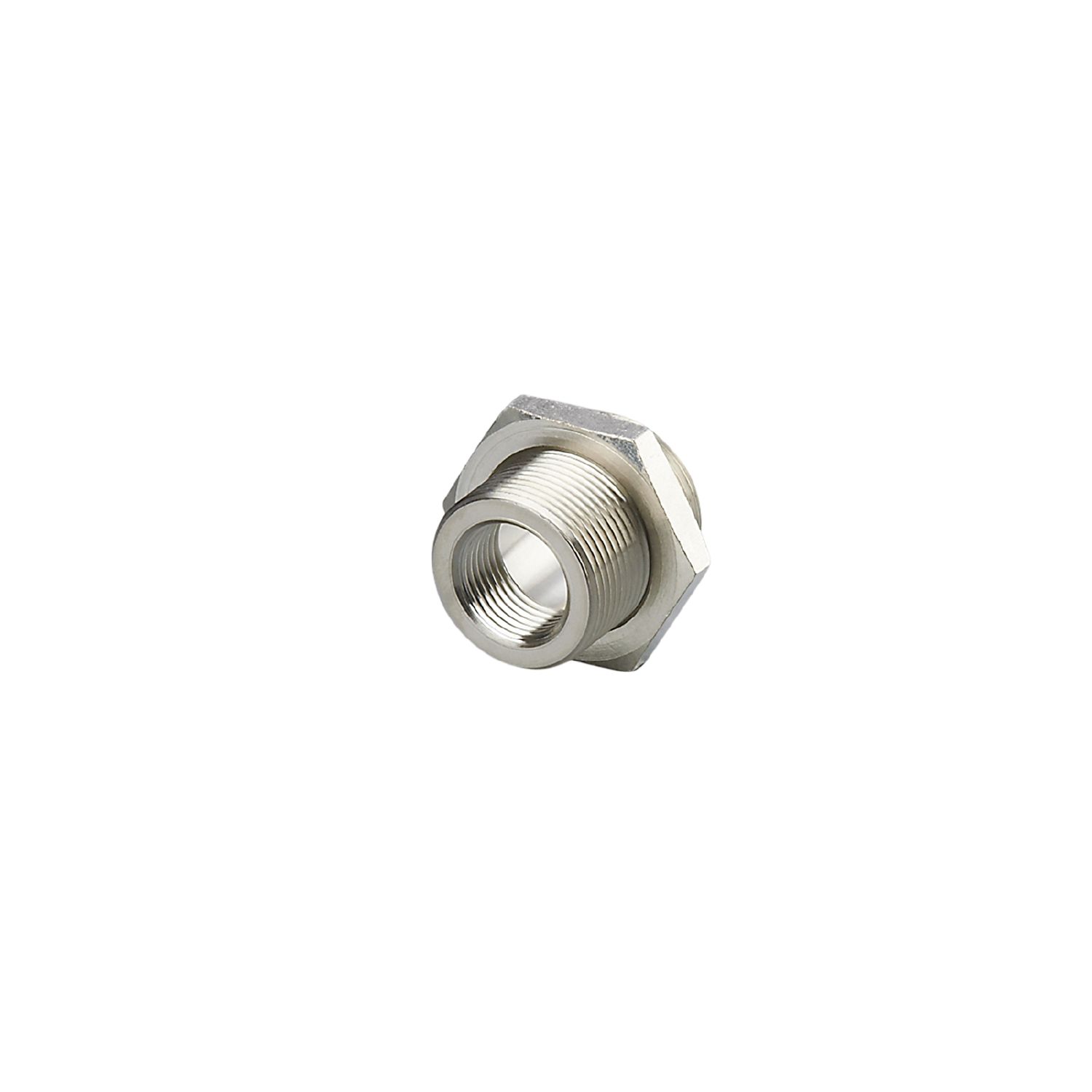

Thread adapter
E20592
REDUCING BUSH M18>M12 CUZN
Thread adapter
E20592
REDUCING BUSH M18>M12 CUZN
- For mounting sensors with M12 housing
- For adaptation to existing installation conditions if the unit has to be replaced
- Easy, quick and inexpensive fixing
- Robust design for use in harsh industrial environments
Mechanical data
| Weight [g] | 27.7 |
|---|---|
| Dimensions [mm] | M18 / M12 x 1 / L = 20 |
| Thread designation | M18 / M12 x 1 |
| Materials | brass nickel-plated |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20592-00 — 06.03.2003 —
