Wirable plug

E12775

SSTGB030ZDSFKPG

Wirable plug

E12775

SSTGB030ZDSFKPG

Application
Special feature Gold-plated contacts
Electrical data
Operating voltage [V] < 300 AC/DC
Protection class II
Max. current load total [A] 12
Operating conditions
Ambient temperature [°C] -25...85
Protection IP 67
Mechanical data
Weight [g] 51.9
Moulded-body material PBT
Material nut diecast zinc, nickel-plated
Remarks
Remarks
pin 1 leading
Pack quantity 1 pcs.

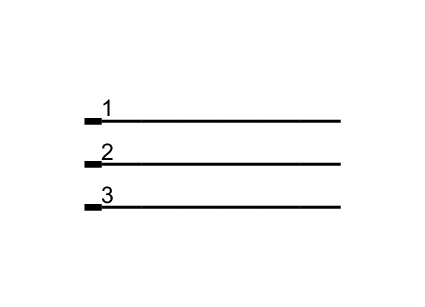

Electrical connection
screw terminals: ...1.5 mm²; Cable sheath: Ø 6...8 mm; AWG 16
Electrical connection - plug

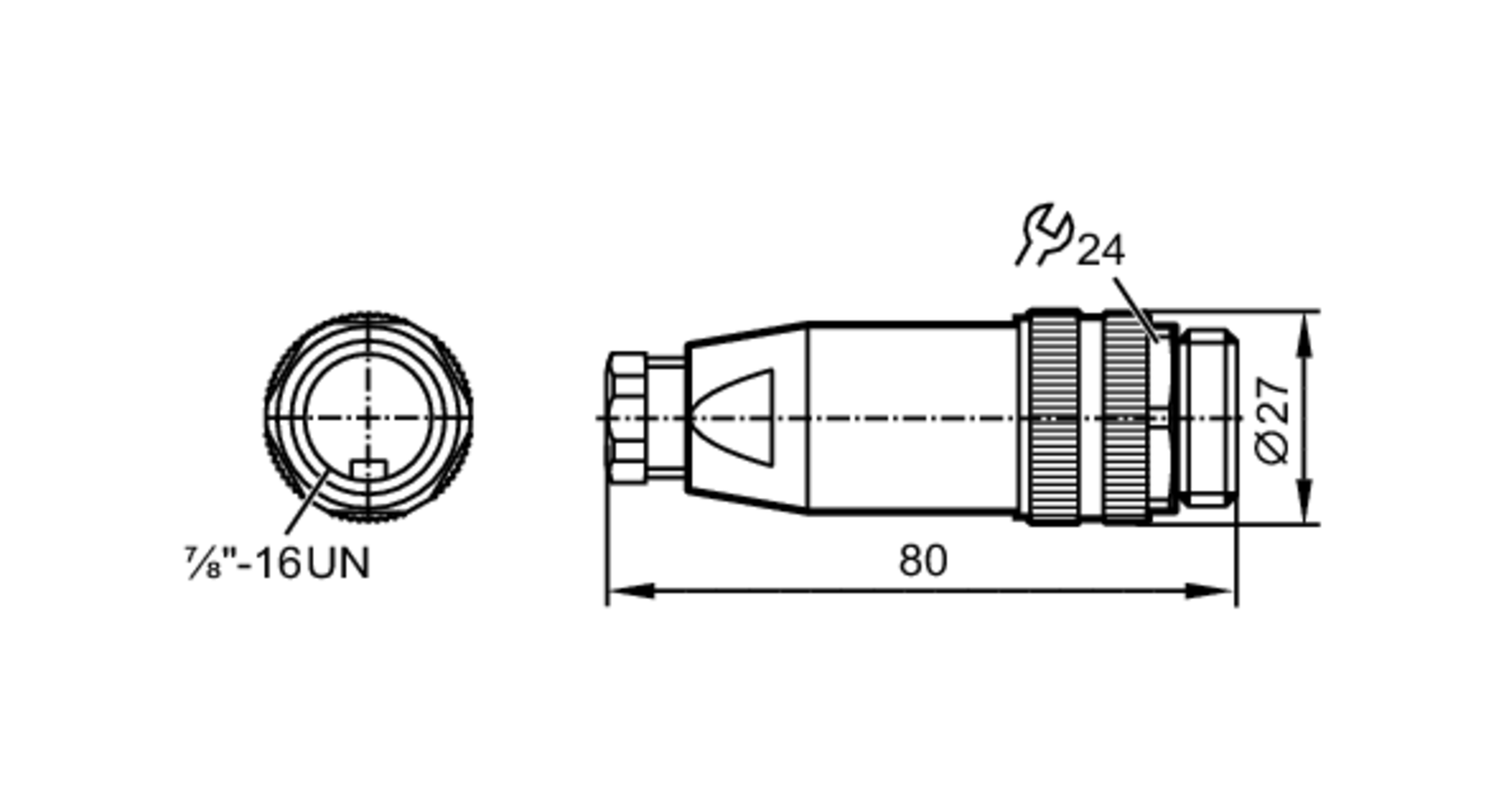

Connection Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc, nickel-plated; Contacts: gold-plated
