Wirable socket
E12774
SDOGB050ZDSFKPG
Wirable socket
E12774
SDOGB050ZDSFKPG
Order using myifm to benefit from a discounted flat rate delivery charge, irrespective of the number of items in the order.
{{ifmVariantName}}
| Application | |
|---|---|
| Special feature | Free from silicone; Gold-plated contacts |
| Free from silicone | yes |
| Electrical data | |
| Operating voltage [V] | < 300 AC/DC |
| Protection class | II |
| Max. current load total [A] | 9 |
| Operating conditions | |
| Ambient temperature [°C] | -25...85 |
| Protection | IP 67 |
| Mechanical data | |
| Weight [g] | 48.808 |
| Moulded-body material | PBT |
| Material nut | diecast zinc, nickel-plated |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| screw terminals: ...1.5 mm²; Cable sheath: Ø 6...8 mm; AWG 16 | |
| Electrical connection - socket | |

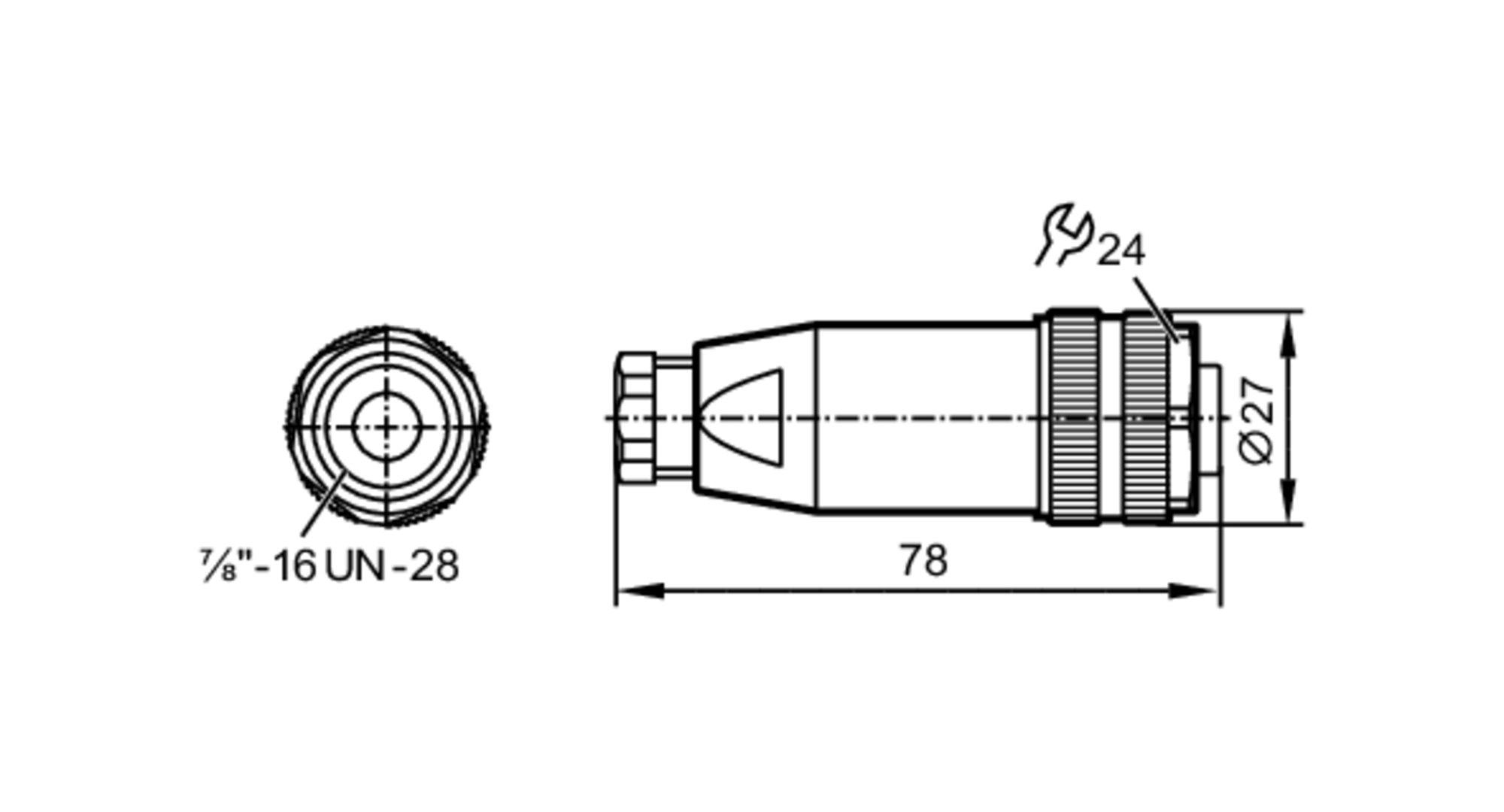

| Connection | Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12774-00 — 04.10.2022 —
|
|
E12774 –
SDOGB050ZDSFKPG
Electrical connection
screw terminals: ...1.5 mm²; Cable sheath: Ø 6...8 mm; AWG 16
Electrical connection - socket
Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc, nickel-plated; Contacts: gold-plated
