Connecting cable with socket
E12772
ADOGB050ZDS0002B05
Connecting cable with socket
E12772
ADOGB050ZDS0002B05
Order using myifm to benefit from a discounted flat rate delivery charge, irrespective of the number of items in the order.
{{ifmVariantName}}
| Application | |||||||
|---|---|---|---|---|---|---|---|
| Special feature | Gold-plated contacts; Drag chain suitability | ||||||
| Electrical data | |||||||
| Operating voltage [V] | < 400 AC/DC | ||||||
| Protection class | II | ||||||
| Max. current load total [A] | 5 | ||||||
| Operating conditions | |||||||
| Ambient temperature [°C] | -25...80 | ||||||
| Protection | IP 68 | ||||||
| Mechanical data | |||||||
| Weight [g] | 187.7 | ||||||

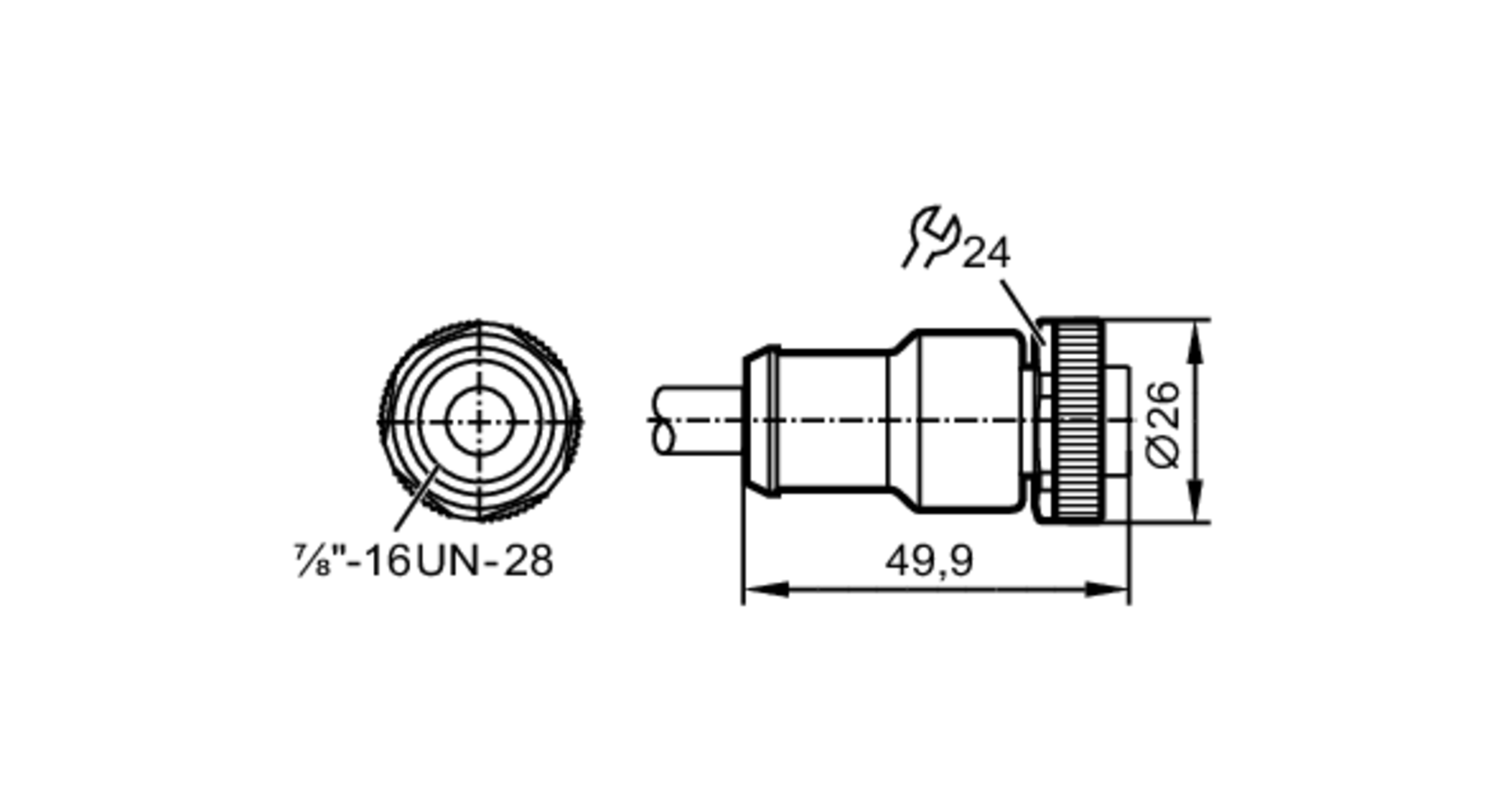

| Dimensions [mm] | 26 x 26 x 49.9 | ||||||
| Moulded-body material | PUR | ||||||
| Material nut | diecast zinc | ||||||
| Drag chain suitability | yes | ||||||
| Drag chain suitability |
|
||||||
| Remarks | |||||||
| Pack quantity | 1 pcs. | ||||||
| Electrical connection | |||||||
| Cable: 2 m, PUR, black, Ø 7.3 mm; 5 x 0.75 mm² | |||||||
| Electrical connection - socket | |||||||
| Connection | Connector: 1 x 7/8", straight; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated | ||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12772-00 — 02.09.2022 —
|
|||||||
E12772 –
ADOGB050ZDS0002B05

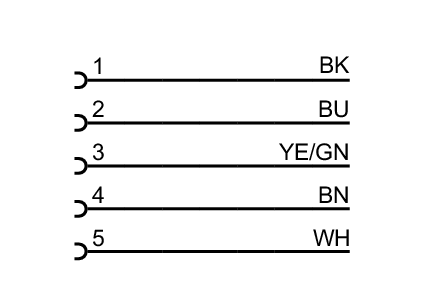

Electrical connection
Cable: 2 m, PUR, black, Ø 7.3 mm; 5 x 0.75 mm²
Electrical connection - socket
Connector: 1 x 7/8", straight; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated
