Wirable socket
E12672
SDOGX050ZDSFKPG
Wirable socket
E12672
SDOGX050ZDSFKPG
Order using myifm to benefit from a discounted flat rate delivery charge, irrespective of the number of items in the order.
{{ifmVariantName}}
| Application | |
|---|---|
| Special feature | Gold-plated contacts |
| Design | L-coded |
| Electrical data | |
| Operating voltage [V] | < 63 DC |
| Max. current load total [A] | 16 |
| Operating conditions | |
| Ambient temperature [°C] | -40...85 |
| Protection | IP 67 |
| Mechanical data | |
| Weight [g] | 53.2 |

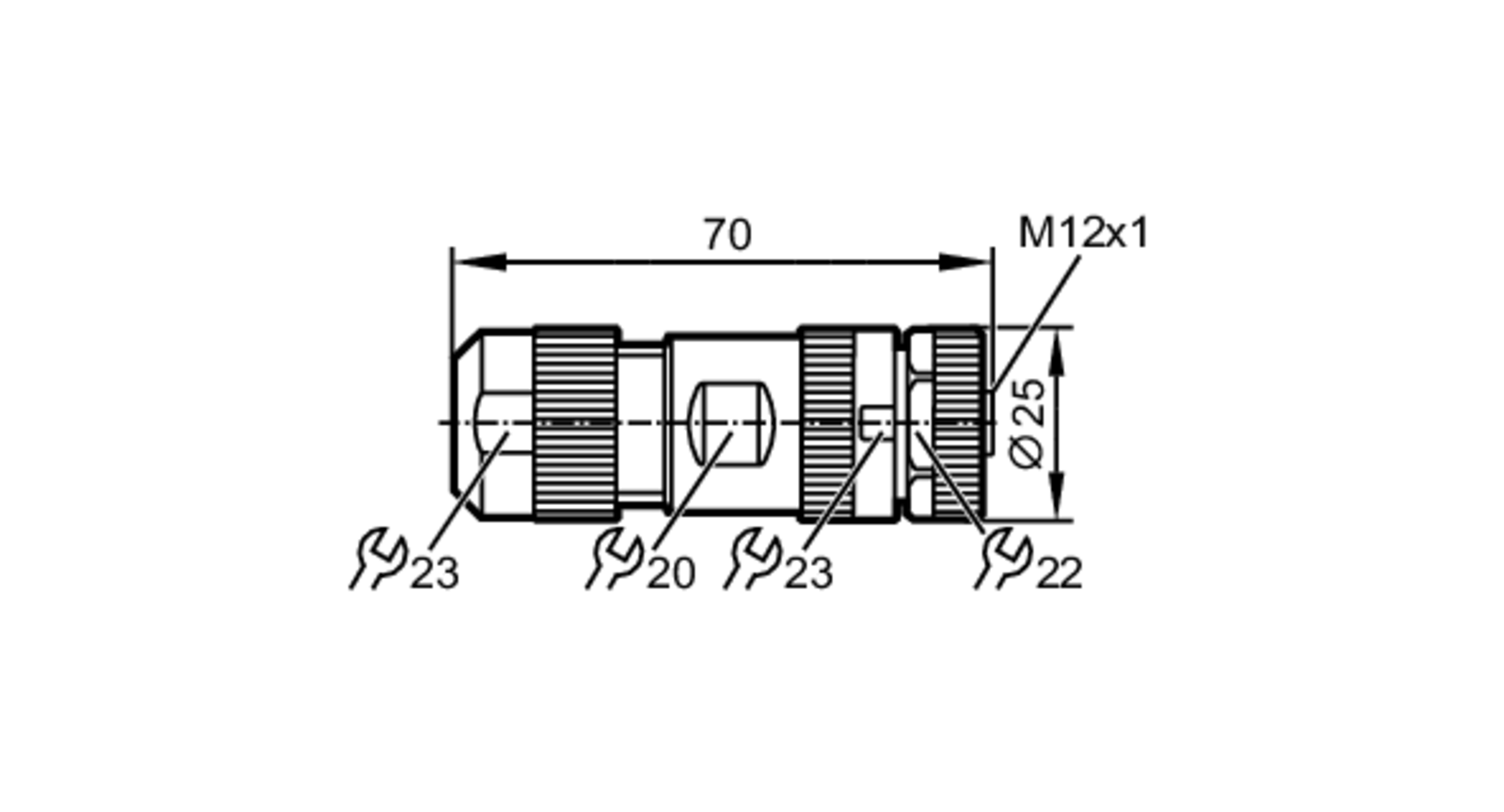

| Dimensions [mm] | Ø 25 / L = 70 |
| Materials | PA |
| Moulded-body material | PA |
| Material nut | diecast zinc, nickel-plated |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| screw terminals: 1.5...2.5 mm²; Cable sheath: Ø 8...13 mm | |
| Electrical connection - socket | |
| Connection | Connector: 1 x M12, straight; coding: L; Moulded body: PA; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12672-00 — 28.09.2020 —
|
|
E12672 –
SDOGX050ZDSFKPG

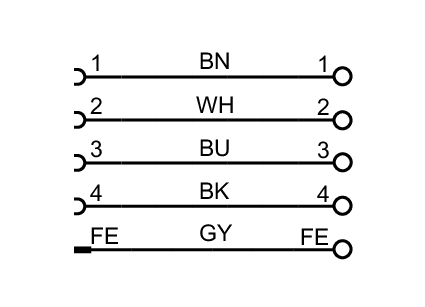

Electrical connection
screw terminals: 1.5...2.5 mm²; Cable sheath: Ø 8...13 mm
Electrical connection - socket
Connector: 1 x M12, straight; coding: L; Moulded body: PA; Locking: diecast zinc, nickel-plated; Contacts: gold-plated
