Connection cable

E12653

Order using myifm to benefit from a discounted flat rate delivery charge, irrespective of the number of items in the order.

Technical details
Application
Special feature	Gold-plated contacts
Design	power cable, L-coded
Electrical data
Operating voltage [V]	64 DC
Max. current load total [A]	16
Operating conditions
Ambient temperature [°C]	-40...90
Protection	IP 67
Mechanical data
Weight [g]	230.3
Materials	PP
Moulded-body material	TPE
Material nut	brass, nickel-plated
Remarks
Pack quantity	1 pcs.

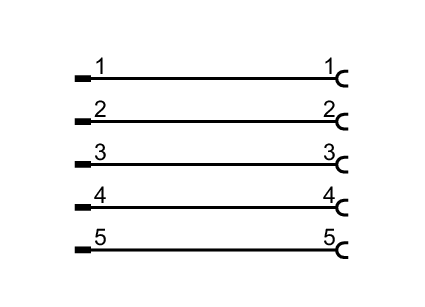

Electrical connection

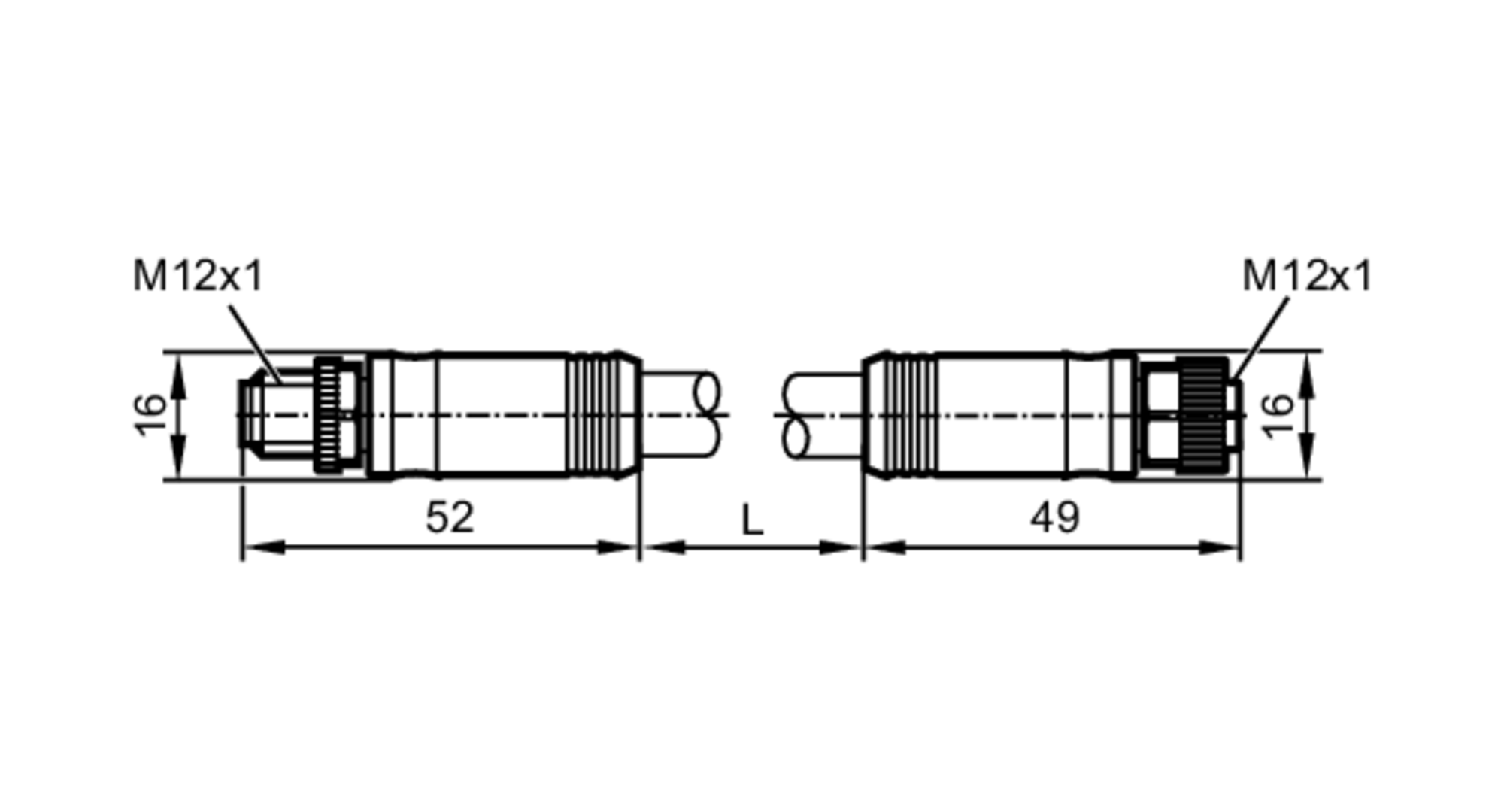

	Cable: 1.0 m, PUR, black, Ø 11.3 mm; 5 x 2.5 mm²
Electrical connection - plug
	Connector: 1 x M12, straight; coding: L; Moulded body: TPE; Locking: brass, nickel-plated; Contacts: gold-plated
