RFID read/write head HF
DTI410
DTRHF FBRWIOUS03
RFID read/write head HF
DTI410
DTRHF FBRWIOUS03
- For the reliable identification of ID tags on workpiece carriers and products
- Robust stainless steel housing for applications in mounting, feeding and handling technology
- High protection rating for the requirements of harsh industrial environments
- RFID read/write head HF for flush mounting
Order using myifm to benefit from a discounted flat rate delivery charge, irrespective of the number of items in the order.
{{ifmVariantName}}
Application
| Application | detection of objects on transport equipment | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 19.2...28.8 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Operating frequency [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Detection zone
| Distance write/read head front [mm] | 40 | |||
|---|---|---|---|---|
| Distance write/read head side [mm] | 20 | |||
| Distance to the ID tag [mm] |
|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Device Identification | ||||
| SIO mode | no | ||||
| Required master port type | A | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| Radio approval | EN 300 330 V2.1.1 | ||||||||
| MTTF [years] | 610.46 | ||||||||
| UL approval |
|

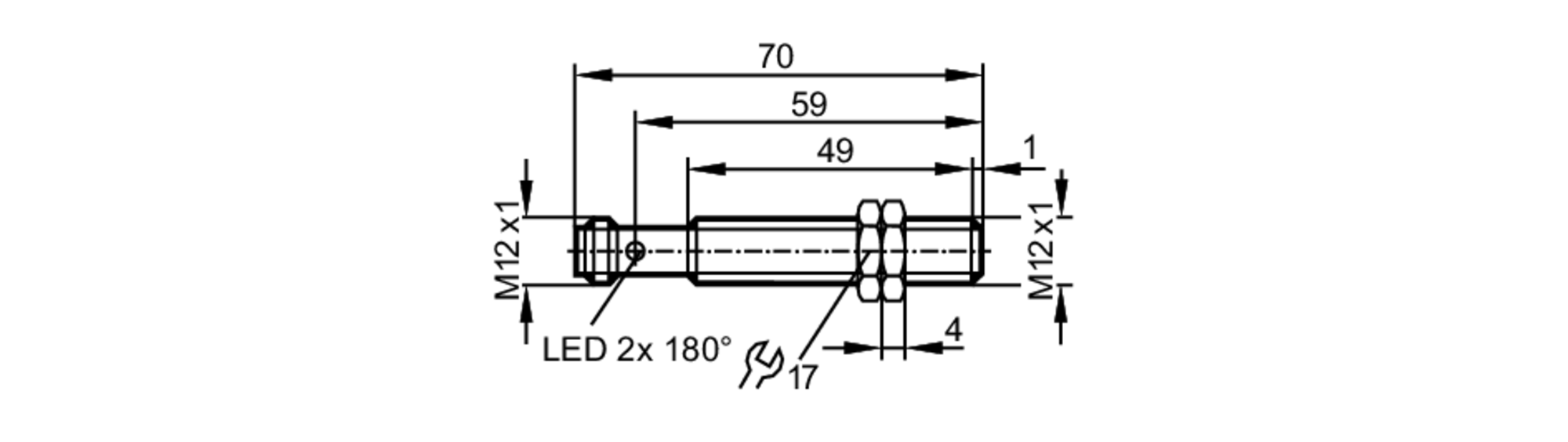

Mechanical data
| Weight [g] | 111 |
|---|---|
| Housing | cylindrical |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 70 |
| Thread designation | M12 x 1 |
| Materials | housing: stainless steel; Protective cover: PPS |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTI410-00 —
DTI410 –
DTRHF FBRWIOUS03

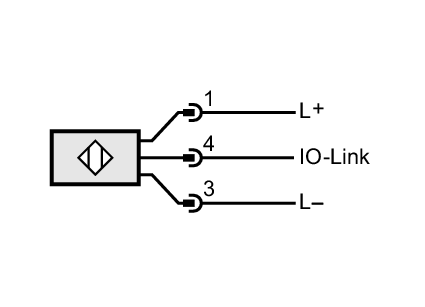

Electrical connection
Connector: 1 x M12; coding: A
