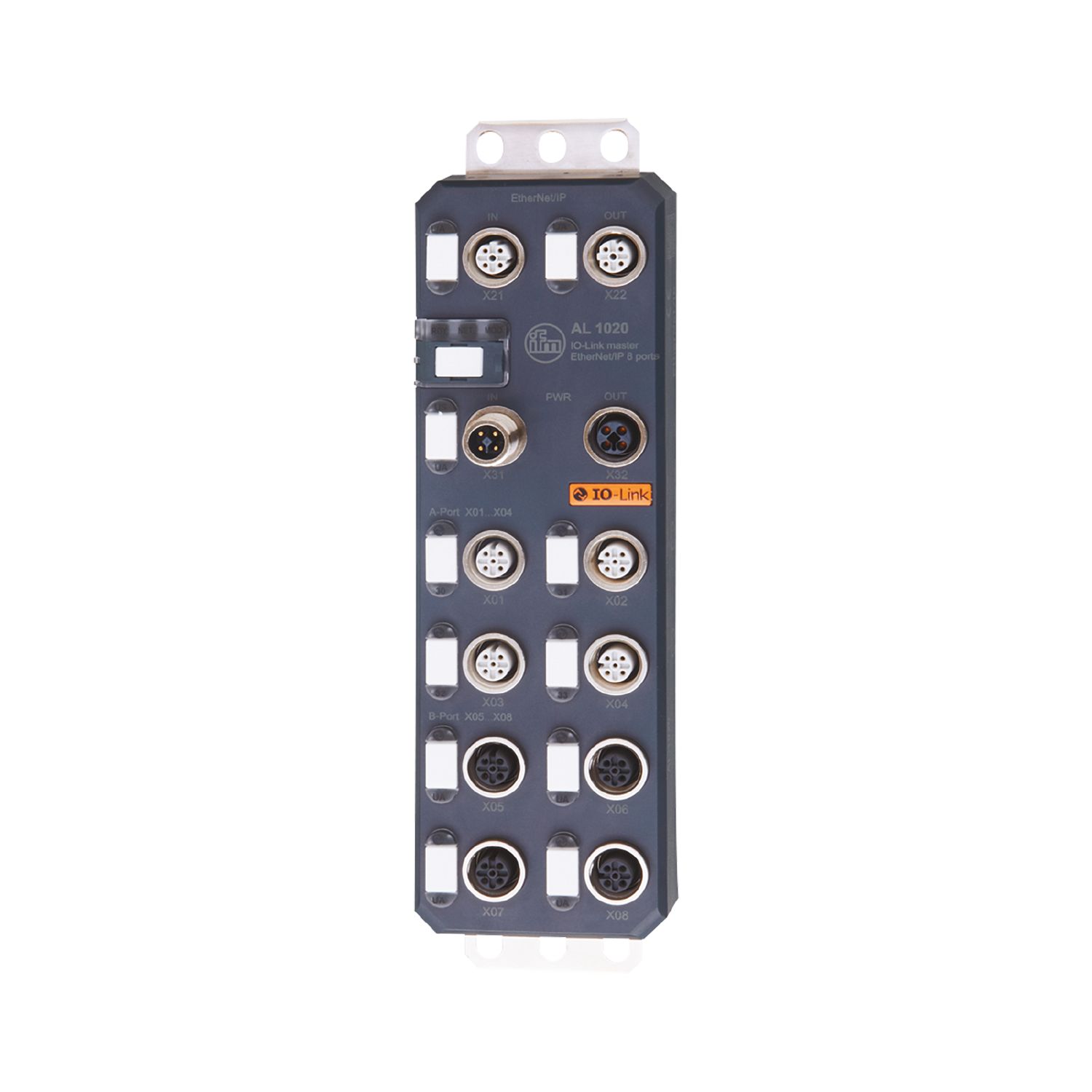

Application
Application |
I/O modules for field applications |
Daisy-chain function |
power supply; fieldbus interface |
Electrical data
Operating voltage [V] |
19...31.2 DC; (US) |
Protection class |
III |
Additional voltage supply [V] |
19...31.2 DC; (UA) |
Actuator supply UA
Current rating per port [A] |
1.6 |
Sensor supply US
Current rating per port [A] |
0.2 |
Inputs / outputs
Total number of inputs and outputs |
12; (configurable) |
Number of inputs and outputs |
Number of digital inputs: 12; Number of digital outputs: 8 |
Inputs
Number of digital inputs |
12; (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1) |
Switching level high [V] |
15...30 |
Switching level low [V] |
-3...5 |
Digital inputs protected against short circuits |
yes |
Outputs
Number of digital outputs |
8; (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 1) |
Max. current load per output [mA] |
200 |
Short-circuit proof |
yes |
Interfaces
Communication interface |
Ethernet; IO-Link |
Ethernet - EtherNet/IP
Protocol |
EtherNet/IP |
IO-Link Master
Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
IO-Link revision |
1.1 |
Number of ports class A |
4 |
Number of ports class B |
4 |
Operating conditions
Ambient temperature [°C] |
-25...60 |
Storage temperature [°C] |
-25...85 |
Max. relative air humidity [%] |
95 |
Protection |
IP 65; IP 67 |
Tests / approvals
EMC |
EN 61000-6-2 |
|
EN 61000-4-2 ESD |
6 kV contact discharge / 8 kV air discharge |
EN 61000-4-3 |
|
EN 61000-4-4 |
|
EN 61000-4-5 |
|
EN 61000-4-6 |
|
|
Shock resistance |
|
Vibration resistance |
|
Mechanical data
Weight [g] |
569.5 |
Materials |
housing: PA; socket: brass nickel-plated |
Sealing material |
FKM |
Remarks
Remarks |
For further information please see the operating instructions. |
|
Pack quantity |
1 pcs. |
Electrical connection - Ethernet
IN / OUT X21, X22 |
Connector: M12; coding: D; Sealing: FKM |
Electrical connection - IO-Link
IO-Link Port Class A X01...X04 |
Connector: M12; coding: A; Sealing: FKM |
Electrical connection - power supply IN
X31 |
Connector: M12; coding: T |
Electrical connection - power supply OUT
X32 |
Connector: M12; coding: T; Sealing: FKM |
