Photoelectric distance sensor


{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Very long range due to time-of-flight measurement
  • Reliable background suppression and colour-independent detection
  • Easy parameter setting via turnable, lockable setting ring
  • Laser protection class 1 for the requirements of the automotive industry
  • User-friendly communication via IO-Link
  • ce
  • eac
  • cul
  • iolink

Comprehensive technical data in pdf format

Technische Details
Product characteristics
Electrical design PNP
Output function normally open / normally closed; (complementary)
Communication interface IO-Link
Dimensions [mm] M30 x 1.5 / L = 100
Special feature Background suppression
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 75; (24 V)
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 650
Typ. lifetime [h] 50000
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2
Total number of outputs 2
Electrical design PNP
Number of digital outputs 2
Output function normally open / normally closed; (complementary)
Max. current load per output [mA] 100
Switching frequency DC [Hz] 11
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Max. light spot diameter [mm] 5
Light spot dimensions refer to 2 m
Detection range hysteresis [%] < 5
Note on monitoring range hysteresis
black 6% remission
Background suppression available yes
Background suppression [m] < 20
Measuring/setting range
Measuring range [m] 0.03...2
Sampling rate [Hz] 33
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
IO-Link device ID 394d / 00 01 8Ah
Profiles Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode yes
Process data analogue 1
Process data binary 1
Min. process cycle time [ms] 6.6
Operating conditions
Ambient temperature [°C] -25...60
Note on ambient temperature
at ta < -10 °C warm-up is necessary, laser is off
Protection IP 65; IP 67
Tests / approvals
EN 60947-5-2
Laser protection class 1
Notes on laser protection
Caution: laser light
laser class: 1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years] 239
Mechanical data
Weight [g] 206.5
Dimensions [mm] M30 x 1.5 / L = 100
Thread designation M30 x 1.5
Materials housing: stainless steel; front lens: PMMA; LED window: PC; PBT; PC; FKM
Displays / operating elements
switching status LED, yellow
operation LED, green
Display unit cm
Operating elements
setting ring
Accessories (supplied)
lock nuts: 2 x M30, VA
operating voltage "supply class 2" according to cULus
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

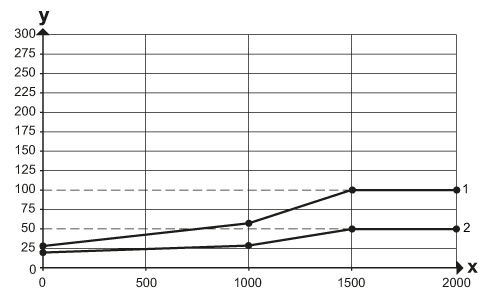

hysteresis graph
x: distance [mm]
y: Hysteresis [mm]
1 = object black 6% remission
2 = object white 90% remission
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OID251-00 — 27.10.2014 —
