Capacitive illuminated pushbutton

KT6301

KTMEF-EMMFFKG/US/IO

Capacitive illuminated pushbutton

KT6301

KTMEF-EMMFFKG/US/IO

  • Ergonomic working by softly touching the sensor
  • Start-up delay prevents unintentional switching
  • Plant condition indicated via RGB LEDs
IO-Link features
  • Various setting options such as colour, NO/NC or triggering via IO-Link
  • Adjustable brightness and sensitivity in wet environments or when operators wear gloves
{{ifmVariantName}}

PDF data sheet
  • ce
  • e1r
  • iolink
Technical details
Product characteristics
Electrical design PNP/NPN
Output function normally open / normally closed
Communication interface IO-Link

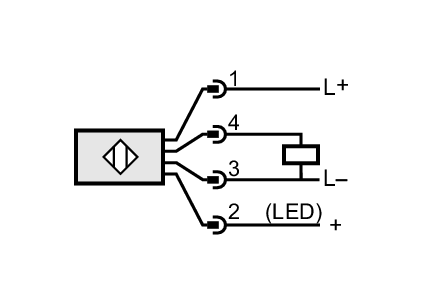

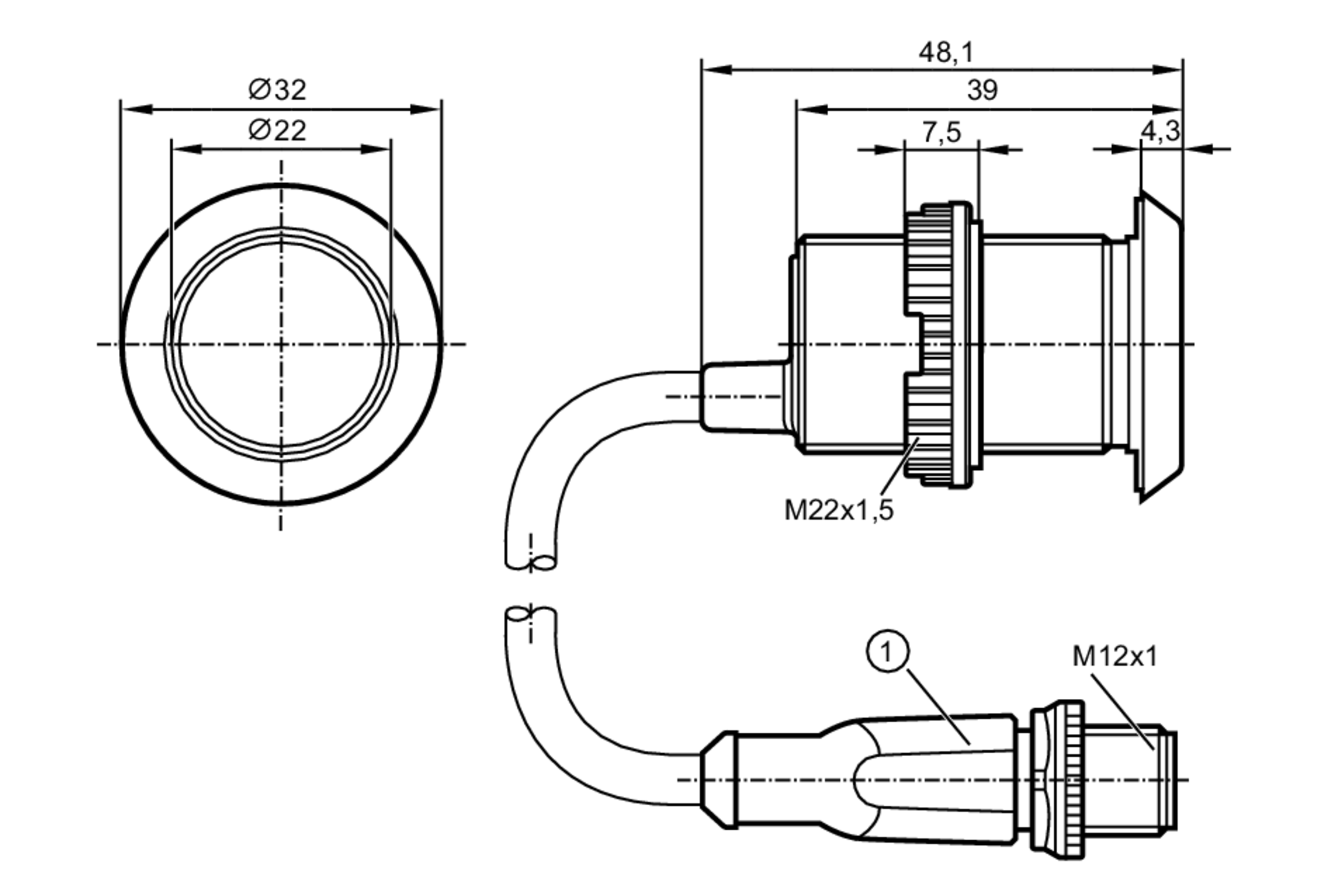

Dimensions [mm] Ø 32 / L = 39
Application
Operating principle dynamic; (static; bistable parameterisable)
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 30
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN
Output function normally open / normally closed
Permanent current rating of switching output DC [mA] 150
Short-circuit protection yes
Overload protection yes
Response times
Response time [ms] 35
Software / programming
Parameter setting options normally open / normally closed; PnP/nPn; statisch / dynamisch / bistabil / Ein- Ausschaltverzögerung; brightness; Aktivierungs- Operations- Inputfarbe; Sensitivität
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Type 0 Generic Profiled Sensor; Identification and Diagnosis; Fixed Switching Signal Channel
SIO mode yes
Required master port type A
Process data analogue 1
Process data binary 1
Min. process cycle time [ms] 3.5
Supported DeviceIDs
Type of operation DeviceID
Default 1002
Operating conditions
Ambient temperature [°C] -20...80
Protection IP 65; IP 67; IP 69K; (on the front)
Tests / approvals
EMC
IEC 61000-4
MTTF [years] 318
Mechanical data
Weight [g] 80.5
Dimensions [mm] Ø 32 / L = 39
Materials housing: stainless steel (1.4305 / 303); active face: PA Grilamid TR 90UV
Displays / operating elements
Display
1 x LED, blue / green / red / magenta / yellow / white / orange
preset
switching status green
operation -
function red
Accessories
Items supplied
lock nuts: 1
Gasket: 1
Accessories (optional)
symbol disc
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KT6301-00 — 25.02.2019 —
