- EC2099
USB connection cable
EC2099
R360/Cable/PDM_NG-USB
USB connection cable
EC2099
R360/Cable/PDM_NG-USB
- Reliable connection of displays and dialogue modules
- With USB socket for installation in control panel or dashboard
- For use in mobile machines and vehicles
- Protective cap for USB socket with high protection rating
- Suited for control cabinet installation in industrial applications
Application
| Special feature | Screened cable |
|---|---|
| Design | for process and dialogue modules PDM360 NG |
| Application | USB socket for installation in control panel or dashboard |
Operating conditions
| Protection | IP 67 |
|---|
Mechanical data
| Weight [g] | 93.55 |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12; coding: B |
Electrical connection
| Connection | Cable: 1.5 m, PVC, black, Ø 5 mm, shielded; twisted; 5 x 0.25 mm² / AWG 24 |
|---|
Electrical connection - socket
| Connector: 1 x USB |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC2099-00 — 05.11.2020 —
EC2099 –
R360/Cable/PDM_NG-USB

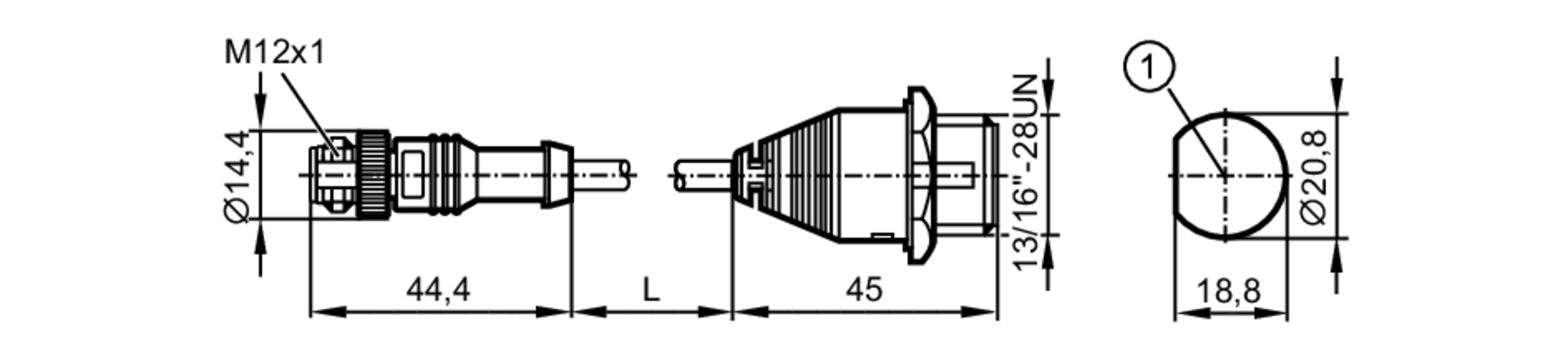

- 1
- cutout for USB socket

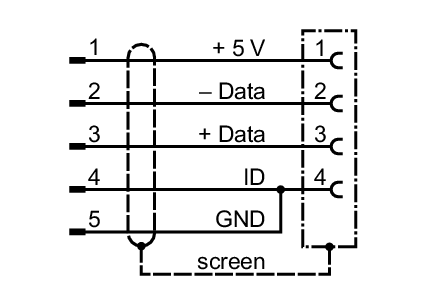

Electrical connection - plug
Connector: 1 x M12; coding: B
Electrical connection
Cable: 1.5 m, PVC, black, Ø 5 mm, shielded; twisted; 5 x 0.25 mm² / AWG 24
Connection
Electrical connection - socket
Connector: 1 x USB
