wall bracket
E89061
LED-Tower/Wall bracket
wall bracket
E89061
LED-Tower/Wall bracket
{{ifmVariantName}}
| Mechanical data | ||||
|---|---|---|---|---|
| Weight [g] | 258.5 | |||

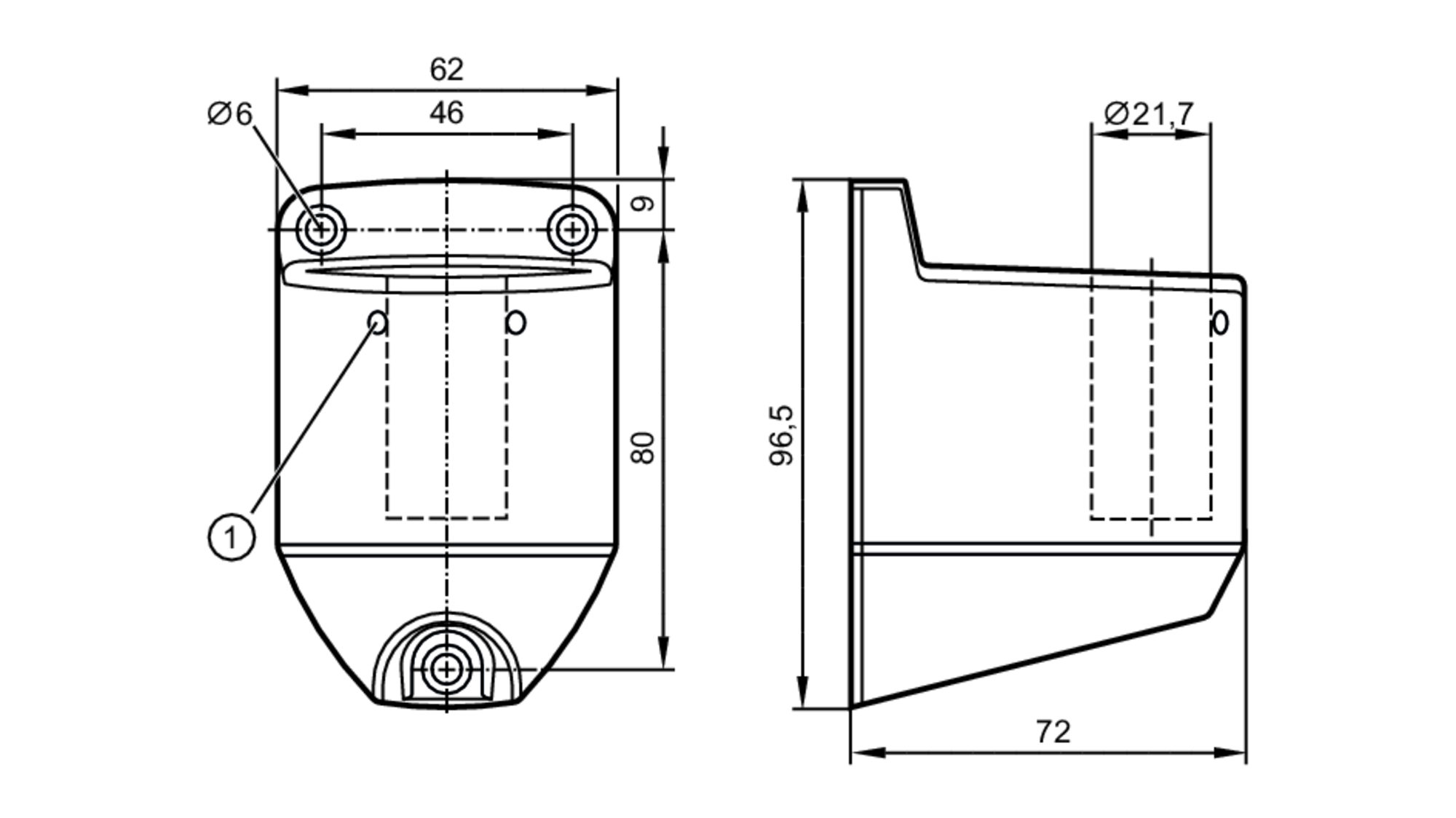

| Dimensions [mm] | 96.5 x 62 x 72 | |||
| Materials | aluminium black | |||
| Accessories | ||||
| Accessories (optional) |
|
|||
| Remarks | ||||
| Pack quantity | 1 pcs. | |||
| Diagrams and graphs | ||||

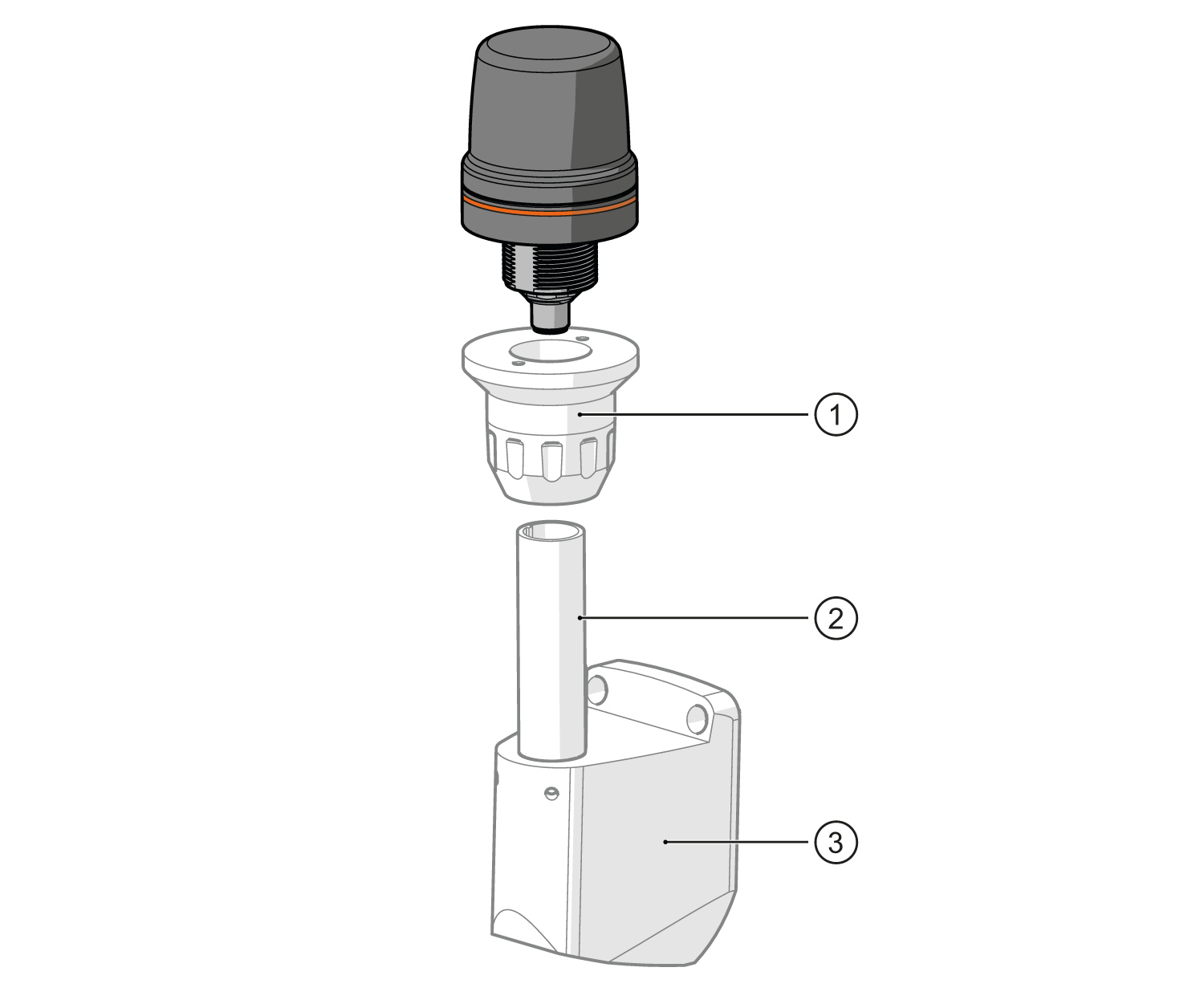

| wall mounting |
|
|||
| wall mounting |
|
|||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E89061-00 — 19.10.2017 —
|
||||
E89061 –
LED-Tower/Wall bracket
- 1
- bore hole
