Filter cover for pressure sensors
E30483
EXCHANGE COVER FILTER SYSTEM
Filter cover for pressure sensors
E30483
EXCHANGE COVER FILTER SYSTEM
- For reliably covering the filter of pressure sensors
- Efficient protection against soiling
{{ifmVariantName}}
| Mechanical data | ||
|---|---|---|
| Weight [g] | 10.2 | |
| Materials | stainless steel (1.4404 / 316L); PTFE; FKM | |
| Tightening torque [Nm] | 2.5...3.5; (recommended tightening torque) | |
| Accessories | ||
| Items supplied |
|
|
| Remarks | ||
| Pack quantity | 1 pcs. | |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30483-00 — 18.06.2021 —
|
||

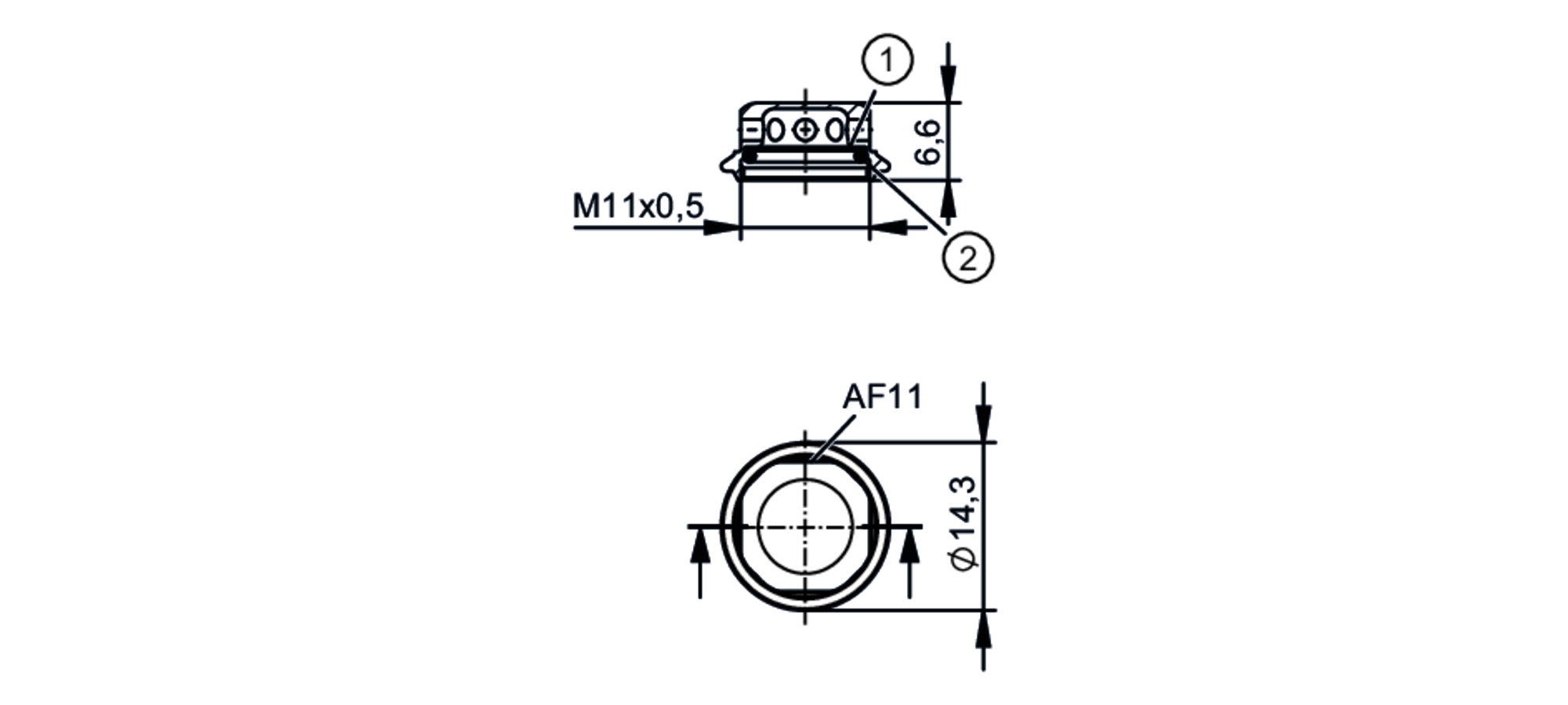

E30483 –
EXCHANGE COVER FILTER SYSTEM
- 1
- ventilation diaphragm
- 2
- Gasket 8.5 x 1.0 FKM
