Ethernet connection cable

E21138

VSTGN040ZDS0002L04STGN040ZDS

Ethernet connection cable E21138

Ethernet connection cable

E21138

VSTGN040ZDS0002L04STGN040ZDS

  • For connection to the parameter setting interface of the sensor
  • For reliable signal transmission
  • High protection rating for the requirements of harsh industrial environments
PDF data sheet
  • ce
Application
Special feature Gold-plated contacts; Screened cable
Design Ethernet cable, D-coded
Electrical data
Operating voltage [V] < 50 AC / < 60 DC
Protection class III
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -20...90
Protection IP 67
Mechanical data
Weight [g] 163.6

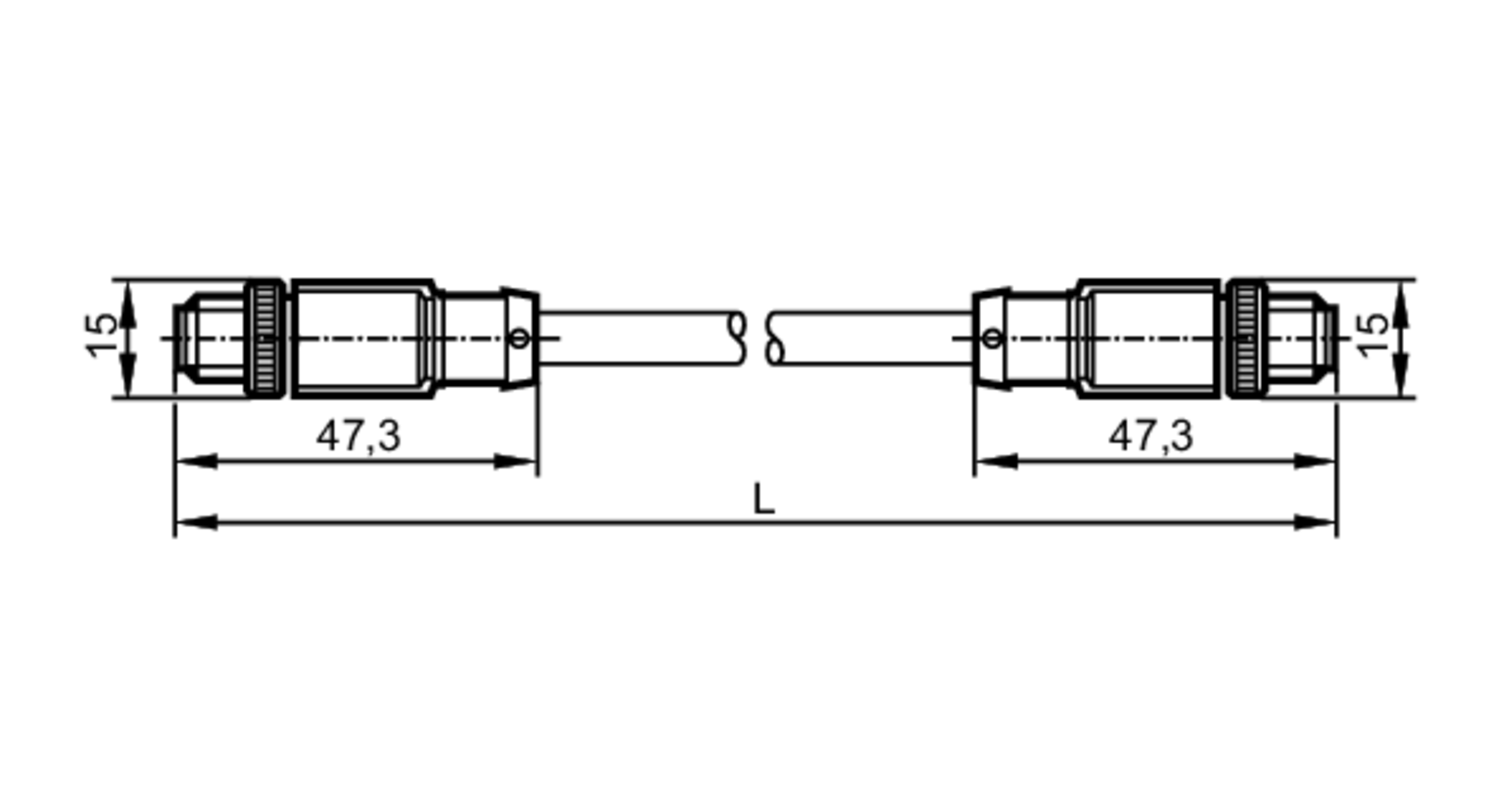

Dimensions [mm] 15 x 15 x 47.3
Materials TPU
Moulded-body material TPU
Material nut diecast zinc, nickel-plated
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connector: 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected
Electrical connection

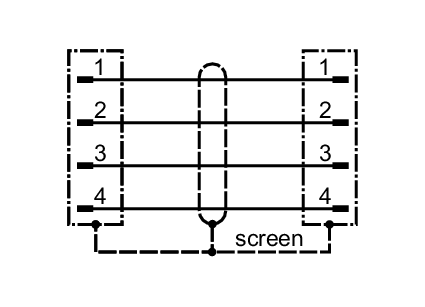

Connection Cable: 2 m, PVC, green, shielded; 4 x 0.34 mm²
Electrical connection - plug
Connector: 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21138-01 — 05.11.2020 —
