Connecting cable with socket
E11950
ADOGH080MSS0002H08
Connecting cable with socket
E11950
ADOGH080MSS0002H08
- 8-pole connection
- High protection rating for the requirements of harsh industrial environments
- Reliable transmission of the sensor signals
For 8-pole sockets the core colours are not standardised. Please note the wiring of the sensor and the sockets (see data sheet).
{{ifmVariantName}}
| Application | |
|---|---|
| Special feature | Halogen-free |
| Electrical data | |
| Operating voltage [V] | < 30 AC / < 36 DC |
| Operating conditions | |
| Ambient temperature [°C] | -25...80 |
| Protection | IP 68 |
| Mechanical data | |
| Weight [g] | 135.9 |

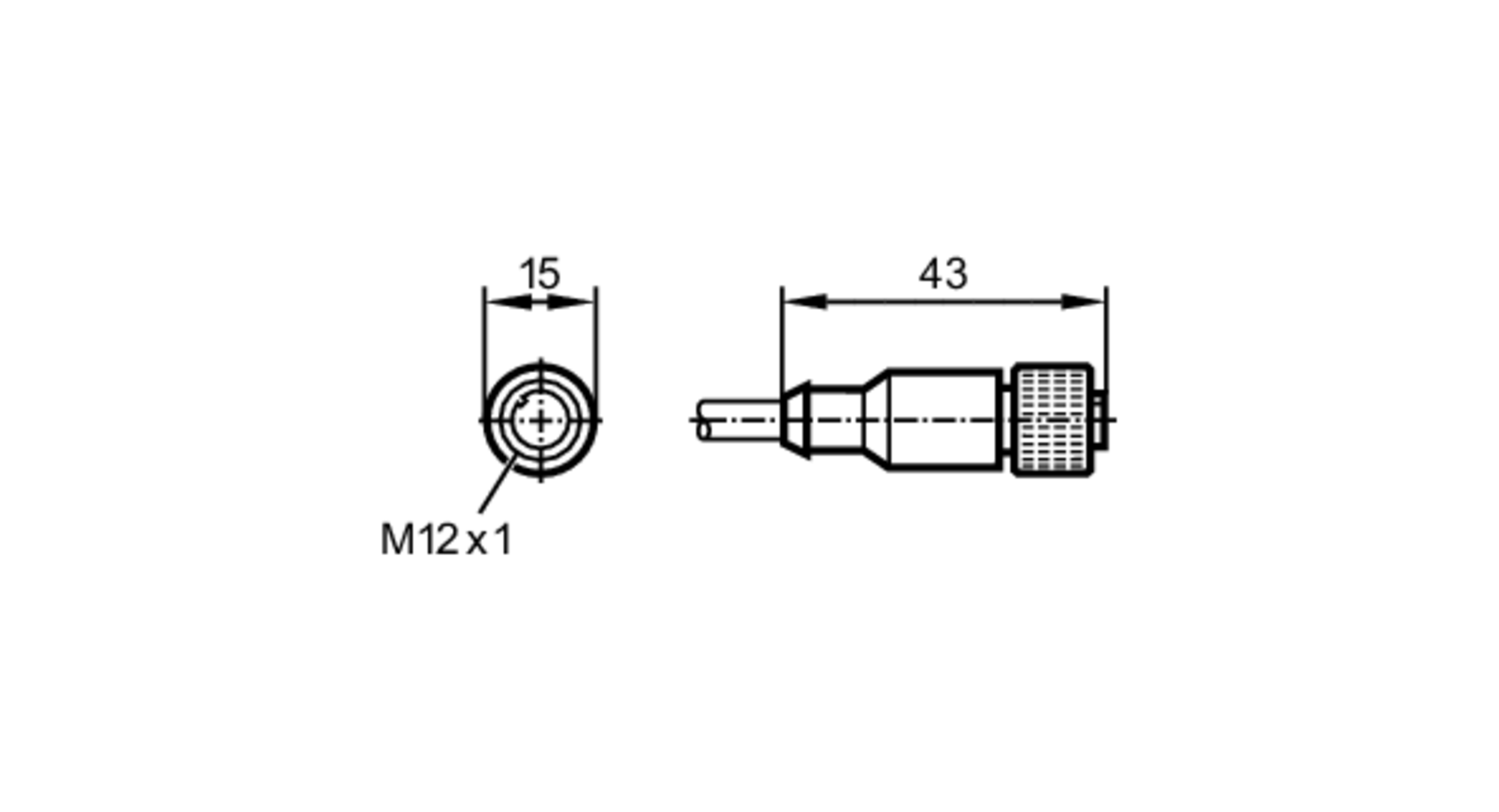

| Dimensions [mm] | 15 x 15 x 43 |
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Cable: 2 m, PUR, Halogen-free, black, Ø 6.2 mm; 8 x 0.25 mm² | |
| Electrical connection - socket | |
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11950-00 — 06.11.2017 —
|
|
E11950 –
ADOGH080MSS0002H08
Electrical connection
Cable: 2 m, PUR, Halogen-free, black, Ø 6.2 mm; 8 x 0.25 mm²
Electrical connection - socket
Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm
Connection
- colours to DIN EN 60947-5-2
- Core colours :
- BK =
- black
- BN =
- brown
- BU =
- blue
- GY =
- grey
- PK =
- pink
- OG =
- orange
- VT =
- lilac
- WH =
- white
