| Electrical data |
| Operating voltage [V] |
8...32 DC |
| Nominal voltage DC [V] |
12 / 24 |
| Current consumption [mA] |
< 1208; (24 V DC; with switched outputs: < 5000 mA) |
| Power consumption [W] |
29 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital inputs: 2; Number of digital outputs: 2 |
| Inputs |
| Number of digital inputs |
2 |
| Number of video inputs |
2; (analogue) |
| Video input |
PAL, NTSC |
| Outputs |
| Number of digital outputs |
2 |
| Max. current load per output [mA] |
2500 |
| Audio output |
Stereo Line-Out |
| Software / programming |
| Parameter setting options |
CODESYS 3.5 |
| PLC function to IEC 61131-3 |
yes |
| Operating system |
Embedded Linux 4.14 |
| Interfaces |
| Communication interface |
Ethernet; CAN; USB |
| Number of CAN interfaces |
4 |
| Number of Ethernet interfaces |
1 |
| Number of USB interfaces |
1 |
| Number of video interfaces (CVBS) |
2 |
| CAN |
| Transmission rate |
20 kBit/s... 1 MBit/s |
| Protocol |
CANopen; SAE J1939; free protocol |
| Profile |
CiA DS 301 Version 4; CiA DS 401 Version 1.4 |
| Interface |
CAN Interface 2.0 A/B ISO 11898 |
| Ethernet |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
100 MBit/s |
| Protocol |
TCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP |
| Note on interfaces |
| OPC UA Micro Embedded Device Server |
|
| USB |
| Transmission rate |
< 480 MBit/s |
| Version |
2.0 |
| Operating conditions |
| Ambient temperature [°C] |
-30...65 |
| Note on ambient temperature |
| 2000 m: -30...65 °C |
| 3000 m: -30...60 °C |
|
| Storage temperature [°C] |
-35...85 |
| Max. relative air humidity [%] |
90; (non condensing) |
| Max. height above sea level [m] |
3000 |
| Protection |
IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67) |
| Pollution degree |
2 |
| Tests / approvals |
| EMC |
| UN/ECE-R10 noise emission and noise interference: |
100 V/m |
| DIN EN 61000-6-2 ESD |
|
| DIN EN 61000-6-4 Burst |
|
| ISO 7637-2 pulse 1 |
severity level 4 / function state C (24 V) |
| ISO 7637-2 pulse 2a |
severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 2b |
severity level 4 / function state C (24 V) |
| ISO 7637-2 pulse 3a |
severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 3b |
severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 4 |
severity level 4 / function state A (24 V) |
| ISO 7637-2 pulse 5 |
severity level 3 / function state C (24 V) |
| ISO 7637-2 pulse 4 |
severity level 4 / function state A (12 V) |
|
| Continuous shock resistance |
| ISO 16750-3 |
30 g 6 ms / 24000 shocks |
|
| Fast temperature change |
| EN 60068-2-30 damp heat: cyclical |
55 ° C upper temperature limit / 6 cycles |
| EN 60068-2-78 damp heat: constant |
40 ° C 93 % rH / test period 21 days |
|
| Vibration resistance |
| ISO 16750-3 Test VII |
random, mounting place car body |
| EN 60068-2-6 Sinus |
10...500 Hz / 10 cycles/axis, sine |
|
| Salt spray test |
| EN 60068-2-52 Salt spray |
severity level 3 / motor vehicle |
|
| MTTF [years] |
41 |
| Mechanical data |
| Weight [g] |
2178.5 |
| Type of mounting |
panel / surface |

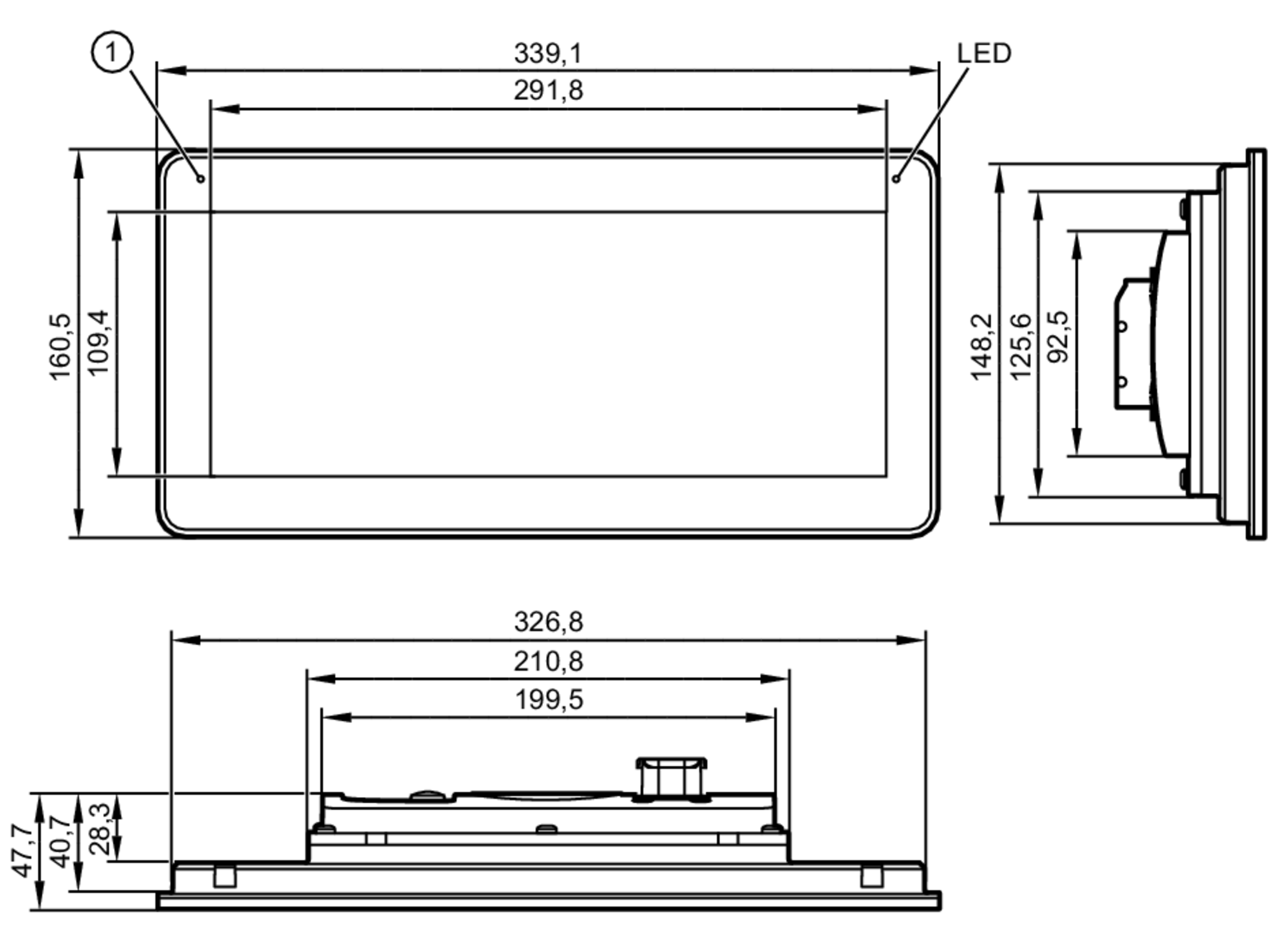

| Dimensions [mm] |
339.1 x 160.5 x 47.7 |
| Materials |
diecast aluminium powder-coated |
| Information on service life |
| pushbuttons: |
1000000 Betätigungen |
| navigation key with pushbutton: |
1000000 Betätigungen |
| Display LED lifetime: |
> 70000 h |
|
| Displays / operating elements |
| Display |
|
| Display resolution |
1280 x 480 |
| Display type |
colour display |
| Display size |
12.3" |
| Aspect ratio |
8:3 |
| Display background illumination |
LED |
| Colour depth |
24 Bit |
| Brightness [cd/m²] |
< 1000; (adjustable: 0...100 %; In steps of: 1 %) |
| Contrast ratio |
1000:1 |
| Hardware |
| Processor |
ARM Dual Core 64 Bit 800 MHz |
| Working memory |
1 GByte RAM |
| Mass storage |
4 GByte Flash |
| Data memories |
| Real-time clock |
yes; UTC, battery buffered |
| Remarks |
| Pack quantity |
1 pcs. |
