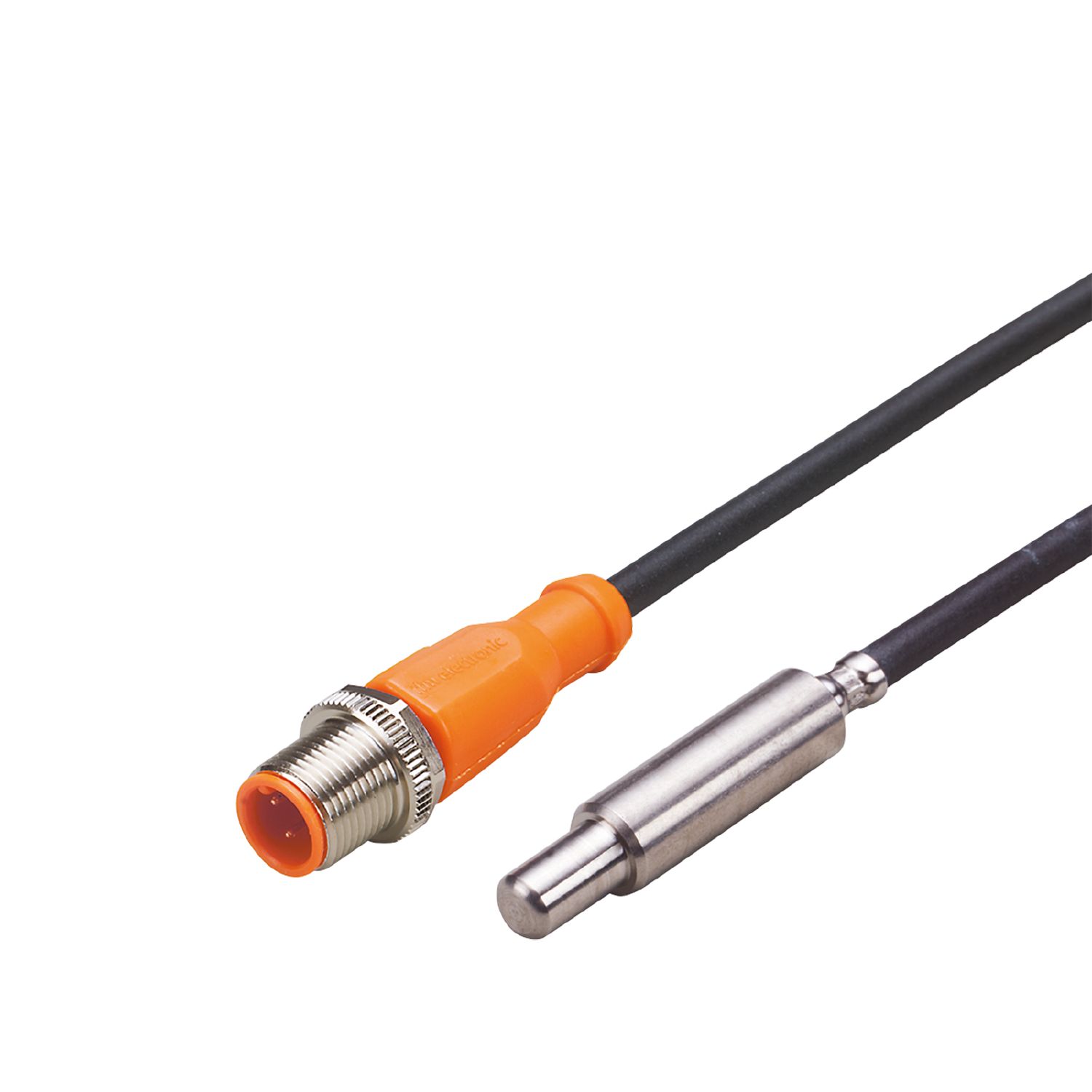

Temperature cable sensor with process connection


{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Precise temperature measurement in containers, tanks and pipes
  • For the connection to an evaluation unit
  • Easy process adaptation via clamp fitting or protective tube
  • High precision across the entire temperature measurement range
  • Simple and 100% sealed connection via M12 connector
  • eac
Technische Details
Product characteristics
Measuring range
-40...90 °C -40...194 °F
Process connection diameter Ø 10 mm
Special feature Gold-plated contacts
Measuring element 1 x Pt 100; (to DIN EN 60751, class A)
Media liquids and gases
Minimum installation depth [mm] 15
Electrical data
Protection class III
Measuring/setting range
Measuring range
-40...90 °C -40...194 °F
Accuracy / deviations
Accuracy [K] ± (0,15 K + 0,002 x |t|)
Response times
Dynamic response T05 / T09 [s] 6 / 25; (to DIN EN 60751)
Operating conditions
Protection IP 67
Tests / approvals
MTTF [years] 11415.5
Mechanical data
Weight [g] 193.6
Housing measuring probe
Dimensions [mm] Ø 10
Materials stainless steel
Materials (wetted parts) stainless steel (1.4404 / 316L)
Process connection diameter Ø 10 mm
Probe diameter [mm] 10
The values for accuracy apply to flowing water.
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 5 m, PUR
Connection Connector: 1 x M12; Contacts: gold-plated
