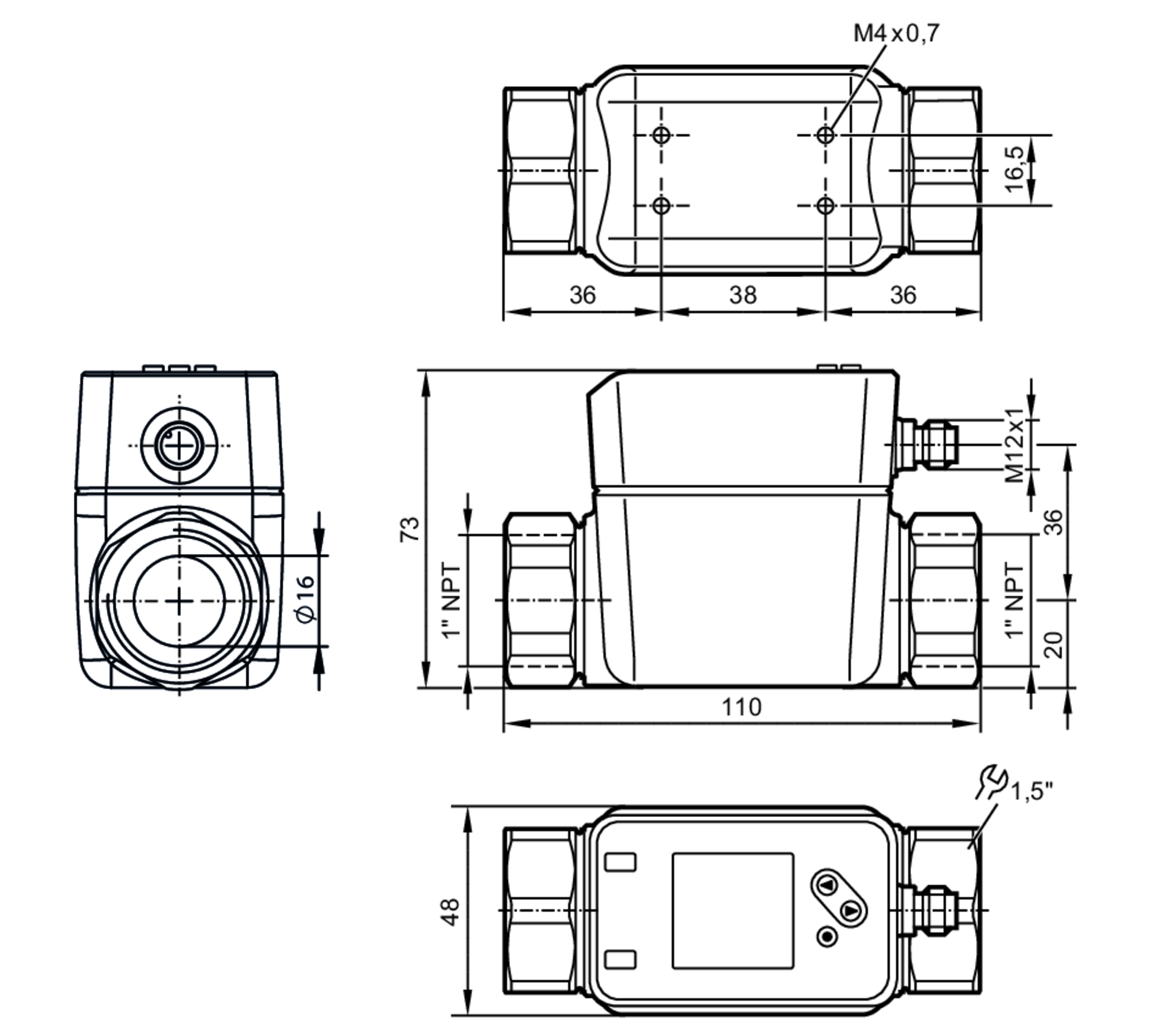

| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Process connection |
1" NPT DN25 |
| Application |
| Special feature |
Gold-plated contacts |
| Media |
conductive liquids; water; hydrous media |
| Note on media |
| conductivity: ≥ 20 µS/cm |
| viscosity: < 70 mm²/s (40 °C) |
|
| Medium temperature [°F] |
-4...194 |
| Pressure rating [bar] |
16 |
| Pressure rating [Mpa] |
1.6 |
| Electrical data |
| Operating voltage [V] |
18...30 DC; (to SELV/PELV) |
| Current consumption [mA] |
< 80 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
5 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Inputs |
| Inputs |
counter reset |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; pulse signal; IO-Link; frequency signal; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
100 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4...20; (scalable) |
| Max. load [Ω] |
500 |
| Pulse output |
flow rate meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
| 0.2...150 l/min |
0.012...9 m³/h |
3.6...2376 gph |
0.06...39.6 gpm |
|
| Display range |
| -180...180 l/min |
-10.8...10.8 m³/h |
-2853.6...2853.6 gph |
-47.56...47.56 gpm |
|
| Resolution |
| 0.1 l/min |
0.006 m³/h |
0.6 gph |
0.01 gpm |
|
| Set point SP |
| 1...150 l/min |
0.06...9 m³/h |
16.2...2376 gph |
0.27...39.6 gpm |
|
| Reset point rP |
| 0.2...149.2 l/min |
0.012...8.95 m³/h |
3.6...1903 gph |
0.06...39.42 gpm |
|
| Analogue start point ASP |
| 0...120 l/min |
0...7.2 m³/h |
0...1903 gph |
0...31.71 gpm |
|
| Analogue end point AEP |
| 30...150 l/min |
1.8...9 m³/h |
475...2376 gph |
7.92...39.6 gpm |
|
| Low flow cut-off LFC |
| 0.2...7.5 l/min |
0.012...0.45 m³/h |
3...118.4 gph |
0.05...1.98 gpm |
|
| Frequency end point, FEP |
| 30.2...150 l/min |
1.8...9 m³/h |
480...2376 gph |
8...39.6 gpm |
|
| Frequency at the end point FRP [Hz] |
1...10000 |
| Volumetric flow quantity monitoring |
| Pulse length [s] |
0.002...2 |
| Pulse value |
0.01...99990000 I |
| Temperature monitoring |
| Measuring range [°F] |
-4...194 |
| Display range [°F] |
-43.6...233.6 |
| Resolution [°F] |
0.1 |
| Set point SP [°F] |
-3.3...194 |
| Reset point rP [°F] |
-4...193.3 |
| Analogue start point [°F] |
-4...154.4 |
| Analogue end point [°F] |
35.6...194 |
| In steps of [°F] |
0.1 |
| Accuracy / deviations |
| Flow monitoring |
| Accuracy (in the measuring range) |
± (0,8 % MW + 0,2 % MEW) |
| Repeatability |
± 0,2 % MEW |
| Temperature monitoring |
| Accuracy [K] |
± 2,5 (Q > 5 % MEW) |
| Response times |
| Flow monitoring |
| Start-up delay [s] |
0...50 |
| Response time [s] |
< 0.25; (dAP = 0, T09) |
| Damping process value dAP [s] |
0...5 |
| Temperature monitoring |
| Response time [s] |
15; (Q > 10 % MEW, T09) |
| Software / programming |
| Parameter setting options |
hysteresis / window; normally open / normally closed; switching logic; current/pulse output; start-up delay; display can be deactivated; Display unit; frequency output |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
3 |
| Process data binary |
2 |
| Min. process cycle time [ms] |
6 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
964 |
|
| Operating conditions |
| Ambient temperature [°F] |
-4...140 |
| Storage temperature [°F] |
-13...176 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
| EMC |
|
| Shock resistance |
| DIN IEC 68-2-27 |
20 g (11 ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6: |
5 g (10...2000 Hz) |
|
| MTTF [years] |
114 |
| UL approval |
| UL Approval no. |
I014 |
| File number UL |
E174189 |
|
| Pressure Equipment Directive |
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
| Weight [g] |
777 |
| Materials |
stainless steel (1.4408/316); stainless steel (1.4404 / 316L); PC; PBT+PC-GF30 |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); PEEK; carbon fibre PEEK; FKM |
| Process connection |
1" NPT DN25 |
| Displays / operating elements |
| Display |
|
colour display 1,44", 128 x 128 pixels |
|
2 x LED, yellow |
|
| Remarks |
| Remarks |
| MW = measured value |
| MEW = Final value of the measuring range |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
| Diagrams and graphs |
|
|
|

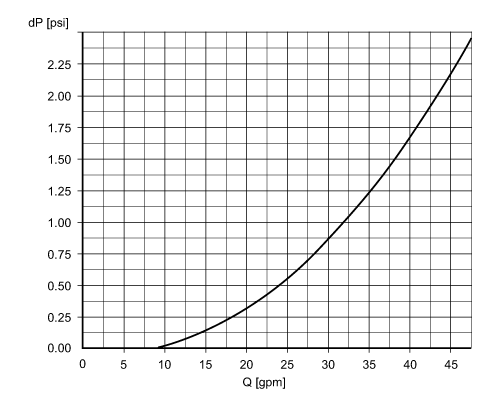

Pressure loss / volumetric flow quantity |
|
