| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Measuring range |
| -1...10 bar |
-15...145 psi |
-30...296 inHg |
-100...1000 kPa |
|
| Process connection |
threaded connection G 1/8 internal thread internal thread:M5 |
| Application |
| Special feature |
Gold-plated contacts |
| Application |
for industrial applications |
| Conditionally suitable for |
other media on request |
| Medium temperature [°C] |
0...60 |
| Min. bursting pressure |
| 30 bar |
435 psi |
886 inHg |
3000 kPa |
|
| Note on min. burst pressure |
| max. overpressure on second pressure connection: 12 bar / 1200 kPa / 174 PSI / 354,4 inHg / 1,2 MPa |
|
| Pressure rating |
| 20 bar |
290 psi |
591 inHg |
2000 kPa |
|
| Vacuum resistance [mbar] |
-1000 |
| Type of pressure |
relative pressure; differential pressure; vacuum |
| Electrical data |
| Operating voltage [V] |
18...32 DC; (to SELV/PELV) |
| Current consumption [mA] |
< 50 |
| Min. insulation resistance [MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Overvoltage protection |
yes; (< 40 V) |
| Power-on delay time [s] |
0.5 |
| Integrated watchdog |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design |
PNP |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
< 100 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4...20 |
| Max. load [Ω] |
500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Measuring/setting range |
| Measuring range |
| -1...10 bar |
-15...145 psi |
-30...296 inHg |
-100...1000 kPa |
|
| Set point SP |
| -0.9...10 bar |
-13...145 psi |
-26...296 inHg |
-90...1000 kPa |
|
| Reset point rP |
| -0.95...9.95 bar |
-14...144 psi |
-28...294 inHg |
-95...995 kPa |
|
| In steps of |
| 0.05 bar |
1 psi |
2 inHg |
5 kPa |
|
| Accuracy / deviations |
| Switch point accuracy [% of the span] |
< ± 0,5 |
| Repeatability [% of the span] |
< ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] |
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation [% of the span] |
< ± 0,25 |
| Long-term stability [% of the span] |
< ± 0,05; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] |
0,2; (0...60 °C) |
| Temperature coefficient span [% of the span / 10 K] |
0,2; (0...60 °C) |
| Response times |
| Response time [ms] |
< 6 |
| Delay time programmable dS, dr [s] |
0; 0,002...5 |
| Step response time analogue output [ms] |
6 |
| Software / programming |
| Parameter setting options |
hysteresis / window; normally open / normally closed; analogue output; IO-Link; switching logic; switch-on/switch-off delay; Damping; Display unit |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 FDIS |
| Profiles |
Smart Sensor: Process Data Variable; Device Identification |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
1 |
| Process data binary |
2 |
| Min. process cycle time [ms] |
2.3 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
367 |
|
| Operating conditions |
| Ambient temperature [°C] |
0...70 |
| Storage temperature [°C] |
-25...85 |
| Protection |
IP 65 |
| Tests / approvals |
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Shock resistance |
| DIN EN 60068-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
20 g (10...2000 Hz) |
|
| MTTF [years] |
437 |
| Pressure Equipment Directive |
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
| Weight [g] |
87 |
| Materials |
PBT; FKM; polyester |
| Materials (wetted parts) |
brass; FKM; silicon (coated); PBT |
| Min. pressure cycles |
50 million |
| Process connection |
threaded connection G 1/8 internal thread internal thread:M5 |
| Displays / operating elements |
| Display |
| Display unit |
4 x LED, green |
| switching status |
1 x LED, yellow |
| function display |
alphanumeric display, 4-digit |
| measured values |
alphanumeric display, 4-digit |
|
| Display unit |
bar; kPa; psi; inHg |
| Remarks |
| Pack quantity |
1 pcs. |

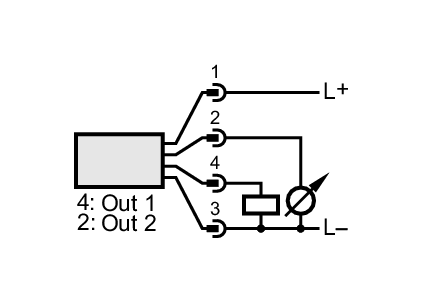

| Electrical connection |
| Connection |
Connector: 1 x M8; coding: A; Contacts: gold-plated |
