PN5002

Pressure sensor with display

PN5002

PN-100-SBR14-HFPKG/US/ /V

Pressure sensor with display

PN5002

PN-100-SBR14-HFPKG/US/ /V

With long-term stability thanks to high overload protection
Lifespan of more than 100 million pressure cycles
Clearly visible 4-digit LED display
Country-specific pressure units selectable
Memory function for the highest measured system pressure

phase-out article

Alternative articles: PN7092 Product comparison: PN5002 / PN7092 When selecting an alternative article and accessories please note that technical data may differ!

Product characteristics

Number of inputs and outputs

Number of digital outputs: 1

Measuring range

0...100 bar

0...1450 psi

0...10 MPa

Process connection

threaded connection G 1/4 internal thread

Application

Special feature

Gold-plated contacts

Application

for industrial applications

Media

liquids and gases

Conditionally suitable for

use in gases at pressures > 25 bar only on request

Medium temperature [°C]

-25...80

Min. bursting pressure

650 bar

9400 psi

65 MPa

Pressure rating

300 bar

4350 psi

30 Mpa

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	18...36 DC; (to SELV/PELV)
Current consumption [mA]	< 50
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Overvoltage protection	yes; (< 40 V)
Power-on delay time [s]	0.3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Outputs

Total number of outputs	1
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	< 170
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Measuring/setting range

Measuring range

0...100 bar

0...1450 psi

0...10 MPa

Set point SP

1...100 bar

20...1450 psi

0.1...10 MPa

Reset point rP

0.5...99.5 bar

10...1440 psi

0.05...9.95 MPa

In steps of

0.5 bar

10 psi

0.05 MPa

Factory setting

SP1 = 25.0 bar

rP1 = 23.0 bar

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5
Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]	< ± 0,25
Long-term stability [% of the span]	< ± 0,05; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	0,2; (-20...80 °C)
Temperature coefficient span [% of the span / 10 K]	0,2; (-20...80 °C)

Response times

Delay time programmable dS, dr [s]	0; 0,2...50

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit

Operating conditions

Ambient temperature [°C]	-20...80
Storage temperature [°C]	-40...100
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5/1 kV
EN 61000-4-6 HF conducted	10 V

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

20 g (10...2000 Hz)

MTTF [years]

231

Mechanical data

Weight [g]	260.2
Materials	stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM
Materials (wetted parts)	stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles	100 million
Process connection	threaded connection G 1/4 internal thread

Displays / operating elements

Display

Display unit	3 x LED, green
switching status	LED, yellow
function display	alphanumeric display, 4-digit
measured values	alphanumeric display, 4-digit

Remarks

Pack quantity	1 pcs.

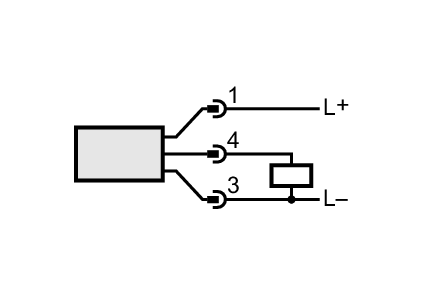

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PN5002-01 — 06.09.2010 —
